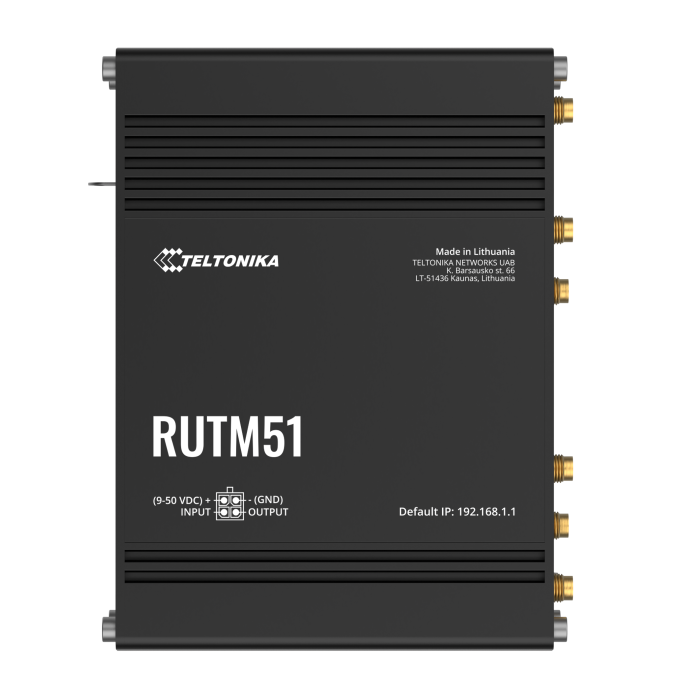

The Teltonika RUTM51 is a powerful, cost-effective 5G router specifically designed for industrial applications that require a stable and fast internet connection. It features dual-SIM support with automatic SIM switching, providing seamless connectivity in multi-network environments. Its high backward compatibility with 4G Cat 12 and five Gigabit Ethernet ports make the RUTM51 a future-proof solution for businesses relying on high-speed networks both now and in the future. Thanks to integrated dual-band Wi-Fi with MU-MIMO technology and automatic failover, the connection remains stable even if one network fails.
With its 5G capability, the RUTM51 offers impressive download and upload speeds: up to 2.6 Gbps download and 650 Mbps upload in 5G NSA mode, as well as up to 600 Mbps in 4G Cat 12 networks. Comprehensive network analysis and management allow for detailed monitoring of network load, connection quality, and SIM status. The device supports a wide range of security and encryption methods, including VPN protocols like OpenVPN, WireGuard, and IPsec, making it particularly attractive for security-critical applications in businesses and industry. The Teltonika RUTM51 can be powered from 9-50V, making it versatile for use in scenarios such as private households, offices, large enterprises, industrial facilities, machines and automation systems, as well as in vehicles, motorhomes, or campers.
External Antenna PortsAdditionally, the Teltonika RUTM51 5G router is equipped with four external 5G or LTE antenna ports (SMA), two external Wi-Fi antenna ports (RP-SMA), and a GPS (SMA) antenna port. This allows the option to use external antennas in areas with weak signal strength.
Fallback FunctionIf no LTE or 5G signal is available, you can alternatively connect the Teltonika RUX50 router to the internet via a DSL, cable, or fiber router or modem through its WAN port. The integrated fallback function allows the Teltonika RUTM51 to be configured to automatically switch to a defined wired connection in case of mobile network failure. Conversely, if the wired connection fails, the RUTM51 5G router will automatically switch to a mobile data connection. This creates a nearly fail-proof connection.
Comprehensive VPN SupportThe RUTM51 natively supports OpenVPN, WireGuard, and IPsec. Through the integrated package manager, you can quickly and flexibly add support for Tailscale, TincVPN, ZeroTier, and others.
Web InterfaceThe RUTM51 comes with RutOS, which offers advanced security features and specialized industrial protocols for a wide range of professional application scenarios and is compatible with the Remote Management System (RMS).
Constant PerformanceThe rugged aluminum casing, solid technology, and mature firmware ensure consistent performance and long service life of the Teltonika RUTM51 router.
Technical Specifications:
| Manufacturer / Model: | Teltonika / RUTM51 |
| Services: | Router, NAT Router, Bridge |
| Processor: | MediaTek, Dual-core, 880 MHz, MIPS1004KCz |
| Memory: | 256MB, DDR3 |
| FLASH Memory: | 16MB serial NOR flash, 256MB serial NAND flash |
| Frequency Bands: | 5G NR NSA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78 5G NR SA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28 4G (LTE-TDD): B38, B40, B41, B42, B43 3G: B1, B5, B8 |
| Transmission Rates 5G - 4x4 MIMO / 2x2 MIMO: | Download SA: 2.1 Download NSA: 2.6 GBit Upload: up to 650 Mbit |
| Transmission Rates LTE: | Download: 600 (CAT12) Upload: 150Mbit |
| LTE / 5G Antenna: | 4 x Omni-directional Antenna (SMA) |
| WLAN: | IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11s / 802.11r |
| Security: | WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| WLAN Antenna: | 2 x Dual-band Omni-directional Antenna (RP-SMA) |
| Services: | NAT, DHCP Server/Client, Virtual Server, Port Forwarding, QOS, DMZ Host, Firewall with IP-, MAC and Domain-Filter, OpenVPN, PPTP, L2TP, IPsec, VRRP, GRE Tunnel, SMS Control, DynDNS, RMS support, Input Triggers, Samba Share, Load Balancer |
| Interfaces: | 1 x USB 2.0 (A) |
| SIM Interface: | 2 x Standard Mini-SIM card slot |
| WAN Interface: | 1 x 10/100/1000MBit WAN/LAN Ports |
| LAN Interface: | 4 x 10/100/1000MBit Ports (Auto MDI-X, Auto-Negotiation) |
| Power Supply: | 9-50V |
| Power Consumption: | max. 18W |
| Application Area: | Indoor |
| E-marking: | Yes |
| Dimensions: | 13.2 x 9.5 x 4.4 cm |
| Casing: | Aluminum |
| Weight: | 525g |
| Operating Environment: | -40°C to +75° Celsius |
| Humidity Range: td> | 10% ~ 90% non-condensing |
Package Contents:
| 1 x Teltonika RUTM51 Dual-SIM 5G Router |
| 4 x 3dBi LTE / 5G Antenna (SMA) |
| 2 x Dual-band Wi-Fi Antenna (RP-SMA) |
| 1 x 1m CAT5e Network Cable |
| 1 x 12V/2A EU Power Adapter |
| 1 x Quick Start Guide (English) |
