PROSCAN 9.5dBi 4G / 5G Panel Antenna, 2x2 MIMO, Outdoor, 5m / SMA
PROSCAN 9.5dBi 4G / 5G Panel Antenna, 2x2 MIMO, Outdoor, 5m / SMA
SKU:
ART7539
GTIN:
4251028604558
Category:
5G Antennas / Outdoor / Indoor
Manufacturers:
JARFT
HAN:
PROSCAN 4G/5G Panel Antenna

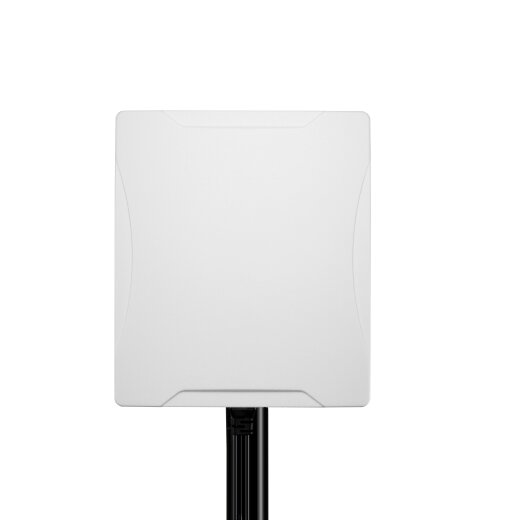

Weatherproof and robust 2x2 MIMO multiband 5G / 4G panel antenna from PROSCAN. The directional antenna offers a substantial gain of up to 9.5dBi, is extremely broadband (600 - 6000 MHz), covers all 5G and 4G frequency bands, and can therefore be universally used for all 5G or 4G data connections.
By using this antenna, you can significantly enhance your 4G or 5G data connection.
The design of the antenna is compact. The directional characteristic and strong signal bundling enable stable 4G or 5G connections even over long distances. The antenna must be aimed at the nearest transmitter mast of your 4G or 5G provider. With its weatherproof housing according to IP65, this model can easily be used as an 4G or 5G outdoor antenna.

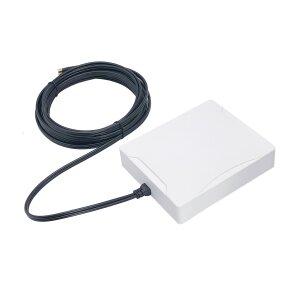

Solid mounting accessories with 2D regulation for mast and wall mounting are included in the package. The antenna comes with two 5m long antenna cables with SMA connectors. This way, the antenna can be directly connected to your 4G or 5G router. By using this antenna, you can significantly enhance your LTE or 5G data connection.
69,99 €
incl. 19% VAT , plus
shipping costs
(Standard)
pcs
Add to basket
Goods ordered. 20 pcs expected on 29.11.2024.
Delivery time:
ca. 6 weeks
(DE - int. shipments may differ)
Question about item
Description
accessories
Reviews
Technical Specifications:
Manufacturer / Model:
PROSCAN / 2x2 MIMO 4G / 5G Antenna
Type:
Directional Antenna
Gain:
6dBi @ 700-960 MHz
9dBi @ 1400 - 2690 MHz
7dBi @ 2690 - 3300 MHz
9.5dBi @ 3300 - 6000 MHz
Impedance:
50 Ohm
Frequency Range:
698-960 MHz (GSM, 3G, 4G)
1710 - 69000 MHz (3G, 4G)
2690 - 3300 MHz (5G)
3300 - 6000 MHz (5G)
VSWR:
max. 2
Connector:
2 x 5m antenna cable with SMA connector
Application Area:
Indoor and Outdoor
Housing:
ABS Polymer
Dimensions:
20.7 x 17.0 x 4.5 cm
Weight:
1200g incl. mounting accessories
Color:
White
Package Contents:
1 x PROSCAN 2x2 MIMO 4G/5G Antenna
1 x Mounting accessories for mast or wall mounting
