The Heart of Your WiFi Point-to-Point Link

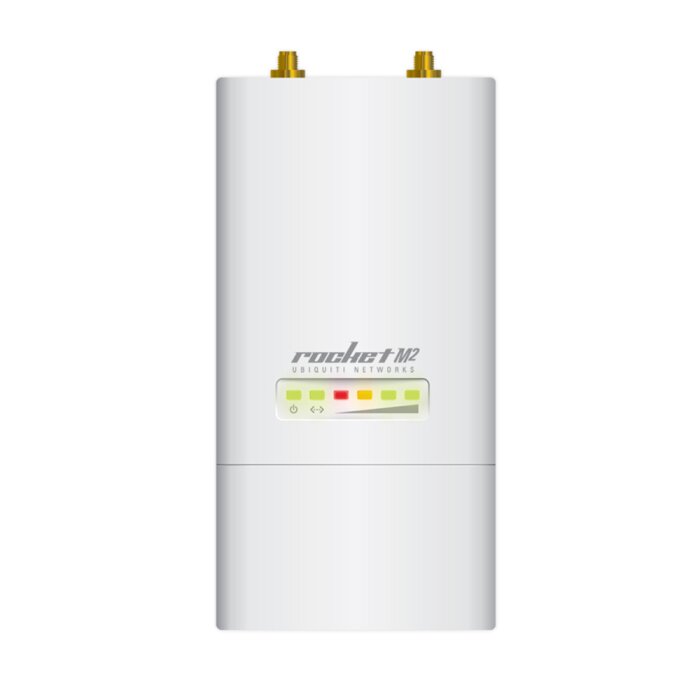

The Ubiquiti Rocket M2 is no ordinary WiFi box, but a highly specialized wireless base station. It is the brain and the engine that you combine with a suitable Antenna to achieve your goal. Whether you want to connect two buildings via WiFi (Point-to-Point) or provide an entire company premises with internet (Point-to-MultiPoint) – the Rocket M2 delivers the necessary power and intelligence. Through its two RP-SMA connectors, it utilizes 2x2 MIMO technology to establish a more robust and faster connection than would be possible with just one Antenna, enhancing your overall Network.
airMAX TDMA: End Data Congestion in Your Wireless Network
Do you know the problem of WiFi slowing down as soon as many devices are online simultaneously? This is due to the standard WiFi protocol, where devices essentially compete for transmission time. Ubiquiti solves this problem with ingenious airMAX TDMA technology. Instead of chaos, the Rocket M2 assigns fixed time slots for data transmission to each connected client. The result: data collisions are eliminated, latency drops drastically, and net data throughput remains consistently high even with many participants. Ideal for IP Cameras, VoIP, or supplying multiple remote locations, making it a key component for your Network.
Built for Any Weather: Your Outdoor Access Point
The Rocket M2 was uncompromisingly developed for outdoor use. Its UV-stabilized plastic casing withstands years of sun exposure, rain, and snow. The extreme operating temperature range of -30°C to +75°C guarantees reliable operation, whether in the deepest winter or the scorching summer sun. Installation is child's play: the Rocket M2 snaps tool-free into the designated brackets of Ubiquiti airMAX Antennas. This creates a perfectly integrated and weatherproof unit that you securely attach to the mast with the included Mounting Systems kit.
Proven Technology for Stable Connections up to 100 Mbps
The Rocket M2 is a veteran among 2.4 GHz Components and has proven itself thousands of times in practice. It is based on the solid 802.11n standard and is the perfect, cost-effective choice for all applications where maximum stability and range are crucial and a real data throughput of up to 95 Mbps is sufficient. Note that the integrated Ethernet Port is limited to 100 Mbps, which makes it the bottleneck for maximum speed. However, for such scenarios, it is an unbeatably reliable solution that simply works, making it a valuable part of your Network Cabling.
Strengths & Notes at a Glance
- Pro: Excellent range and transmit power of up to 28 dBm for connections over 50 km (with line of sight), utilizing robust WiFi Antennas.
- Pro: High flexibility due to the vast ecosystem of compatible airMAX Antennas for every scenario, including 2.4 GHz Directional Antennas and 2.4 GHz Sector Antennas.
- Pro: Extremely robust and weatherproof design for reliable continuous outdoor use, supported by strong Mounting Systems.
- Pro: Efficient airMAX TDMA protocol significantly improves latency and throughput in networks with many clients, optimizing your Network.
- Note: The 10/100 Mbps Ethernet Port limits the maximum data throughput to approx. 95 Mbps.
- Note: The 2.4 GHz band can be susceptible to interference in densely populated areas.
Specifications & Features
| Manufacturer: | Ubiquiti |
| Model: | Rocket M2 |
| EAN: | 0810354022753 |
| Product Classification: | High-Performance Wireless Base Station (WiFi Access Point) |
| Frequency Band: | 2.4 GHz |
| Operating Frequency Range: | 2402 - 2462 MHz |
| WLAN Standards: | IEEE 802.11b/g/n |
| MIMO Technology: | 2x2 MIMO |
| Maximum Data Rate: | 150+ Mbps (real TCP/IP throughput limited to approx. 95 Mbps by Ethernet Port) |
| Proprietary Protocol: | Ubiquiti airMAX (TDMA) |
| Max. Transmit Power (TX Power): | Up to 28 dBm (approx. 630 mW) +/- 2 dB |
| Receive Sensitivity (RX): | Up to -97 dBm +/- 2 dB |
| Configurable Channel Bandwidths: | 5, 8, 10, 20, 30, 40 MHz |
| Processor: | Atheros MIPS 24KC, 400 MHz |
| RAM: | 64 MB SDRAM |
| Flash Memory: | 8 MB |
| Network Interface: | 1 x 10/100 BASE-TX (RJ-45) Ethernet Port |
| Antenna Connectors: | 2 x RP-SMA (waterproof) |
| LED Indicators: | Power, LAN, 4 x Signal Strength |
| Power Supply: | Passive Power over Ethernet (PoE) |
| PoE Specification: | 24V, 1A (Pairs 4, 5+; 7, 8 return) |
| Supported Voltage Range: | 20–27V DC |
| Maximum Power Consumption: | 6.5 Watts |
| Housing Material: | UV-stabilized plastic for outdoor use |
| Dimensions: | approx. 160 x 80 x 30 mm |
| Weight: | approx. 0.5 kg |
| Operating Temperature: | -30°C to 75°C |
| Operating Humidity: | 5 to 95% (non-condensing) |
| Shock & Vibration Resistance: | ETSI300-019-1.4 |
| Operating System: | Ubiquiti airOS |
| Management: | Web Interface (UI) |
| Operating Modes: | Access Point, Station, AP-Repeater, Bridge |
| WLAN Security: | WPA2-AES, WPA, WEP |
| Software Tools: | airView Spectrum Analyzer, airControl |
| Certifications: | FCC Part 15.247, IC RS210, CE |
| RoHS Compliance: | Yes |
Scope of Delivery
| 1 x Ubiquiti Rocket M2 |
| 1 x 24V, 0.5A/1A Passive PoE Adapter |
| 1 x Pole Mounting Kit |
| 1 x Power Cord |
Frequently Asked Questions (FAQ)
Is the Ubiquiti Rocket M2 a complete router?
No, the Rocket M2 is primarily a wireless base station (WiFi Access Point). It features bridge functionality but is not designed as a replacement for a full-fledged Network router with firewall, NAT, and DHCP server.
Which antenna do I need for the Rocket M2?
The choice of Antennas depends on the application. For long-range point-to-point connections, a Directional Antenna (e.g., RocketDish) is ideal. To cover an area, a 2.4 GHz Sector Antenna is used, and for 360° coverage, a 2.4 GHz Omni-Directional Antenna.
How is the Rocket M2 powered?
The Rocket M2 is powered via Passive Power over Ethernet (PoE). Power and data run over a single Ethernet Cable. A 24V PoE Injector is necessary for this and is usually included as part of PoE Injectors / Power Supplies.
Can I use the Rocket M2 for normal home WiFi?
While technically possible, it is not ideal for this purpose. The Rocket M2 is designed for outdoor use and long-range connections. For indoor use, there are more suitable WiFi Access Points, for example, from the UniFi Access Points series.
What does airMAX TDMA technology mean?
airMAX is a proprietary Ubiquiti Networks technology that assigns fixed time slots for transmission to each client (Time Division Multiple Access). This prevents data collisions and significantly improves the performance, latency, and scalability of the wireless Network.
Is the Rocket M2 still up-to-date?
The Rocket M2 is a proven, robust 802.11n-based device. For applications up to approx. 95 Mbit/s, it is an excellent, cost-effective choice. For higher speeds, newer models with 802.11ac (airMAX ac Components) are more suitable.
