Your High-Speed Internet for Every Situation
The Zyxel NR2301 is not just a simple Mobile Hotspot, but your reliable partner for connectivity wherever you need it. Whether you're setting up a temporary office, on vacation, or simply looking for a stable backup solution for your home – this 4G / 5G Router delivers the performance you deserve. Imagine working remotely from a café, streaming your favorite series in a camper, or securing your home Network during an outage. With the NR2301, you're always online, with up to 32 devices simultaneously and without compromising on speed.
Lightning-Fast and Secure: 5G and WLAN 6 in Your Pocket
With the Zyxel NR2301, you surf in a new dimension: Experience 5G NR download speeds of up to 3.4 Gbit/s and 4G 4G download speeds of up to 1.6 Gbit/s. But that's not all! Thanks to the latest WLAN 6 (802.11ax) standard with AX1800 and Dual-Band WLAN (2.4 GHz & 5 GHz), you benefit from superior performance and coverage. Technologies like MU-MIMO and OFDMA ensure that all your 32 connected devices are supplied with data simultaneously and efficiently. And your security? That's important to us! The router offers advanced Network security features such as an SPI Firewall and MAC/IP address filtering, so your data is protected even in public environments.
Maximum Flexibility: Battery, Display, and External Antennas

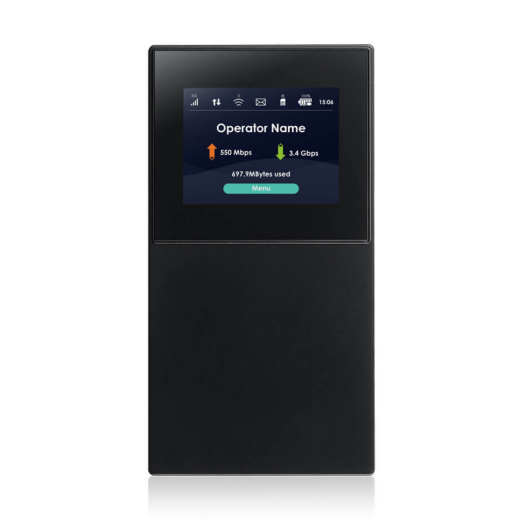

The Zyxel NR2301 was developed for maximum freedom. Its compact, smartphone-like design and integrated 4500 mAh Li-ion battery make it the ideal companion for any journey. On the practical 2.4" LCD Display, you can always see important information such as signal strength, data consumption, and battery level. And if you're in a region with weaker reception? No problem! The two TS9 antenna connectors allow you to connect external Antennas to significantly improve your signal. The router is conveniently charged via the modern USB-C port (USB 3.1) with up to 18 W.
Easy Management, Full Control
Setting up and managing your Zyxel NR2301 is child's play. Whether directly via the intuitive LCD display, the comprehensive web configurator, or the practical Zyxel Air App for iOS and Android – you have full control over your Network. Check data consumption, optimize signal reception, or adjust security settings. Thanks to the remote maintenance function (FOTA), your device also always stays up to date without you having to worry about manual updates.
Strengths & Notes at a Glance
- Pro: Lightning-fast 5G and WLAN 6 connectivity with up to 3.4 Gbit/s download.
- Pro: High portability thanks to compact design and 4500 mAh battery.
- Pro: Extended connectivity for up to 32 devices and two TS9 ports for external Antennas.
- Note: No dedicated LAN port for wired connections without an adapter.
- Note: Potential limitations in upload speeds and non-touch display.
Specifications & Features
| Manufacturer: | Zyxel Networks |
| Model: | NR2301 |
| Product Type: | Mobile 5G Router |
| 5G Standard: | 3GPP Release 16 |
| WLAN Standard: | WLAN 6 (802.11ax) |
| WLAN Speed: | AX1800 (up to 1.2 Gbit/s on 5 GHz, up to 600 Mbit/s on 2.4 GHz) |
| WLAN Frequency Bands: | Dual-Band (2.4 GHz & 5 GHz) |
| 5G Download Speed: | Up to 3.4 Gbit/s |
| 4G 4G Download Speed: | Up to 1.6 Gbit/s |
| Antenna Ports: | 2 x TS9 |
| SIM Card Type: | Nano-SIM |
| Battery: | 4500 mAh Li-ion |
| Charging Port: | USB-C (USB 3.1, up to 18 W) |
| Display: | 2.4" LCD |
| Max. Connected Devices: | 32 |
| Security Features: | SPI Firewall, Application-Level Firewall, MAC/IP Address Filtering |
| Management: | Web-GUI, Zyxel Air App, LCD Display, FOTA |
Scope of Delivery
| 1 x Zyxel NR2301 Mobile 5G Router |
| 1 x USB-C Charging Cable |
| 1 x Quick Start Guide |
Frequently Asked Questions (FAQ)
How do I set up the Zyxel NR2301?
You can set up your Zyxel NR2301 via the device's LCD screen interface or via the web configurator. For daily management, we recommend using the web configurator, which is accessible via a supported web browser. Alternatively, you can also use the Zyxel Air App for iOS and Android for easy setup and management.
Which SIM card do I need for the Zyxel NR2301?
Your Zyxel NR2301 requires a Nano-SIM card.
Can I connect external antennas to the Zyxel NR2301?

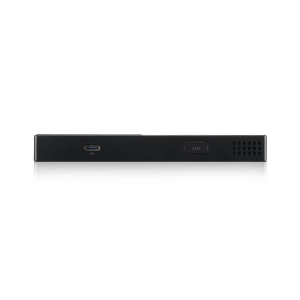

Yes, your Zyxel NR2301 has two TS9 jacks on the side to connect external antennas and thus improve your signal reception.
How long does the Zyxel NR2301's battery last?
Your Zyxel NR2301 is equipped with a 4500 mAh Li-ion battery, which allows for self-sufficient operation. The manufacturer does not provide specific information on battery life, but it supports a charging speed of up to 18 W.
Does the Zyxel NR2301 support both 4G and 5G?
Yes, your Zyxel NR2301 is a portable 5G NR router that complies with the 3GPP Release 16 standard, ensuring seamless compatibility with 4G networks. It offers both 5G NR and 4G LTE speeds.
Can I use the Zyxel NR2301 as a Wi-Fi guest access point?
According to the datasheet, installing a Wi-Fi guest access point on your Zyxel NR2301 is not possible.
