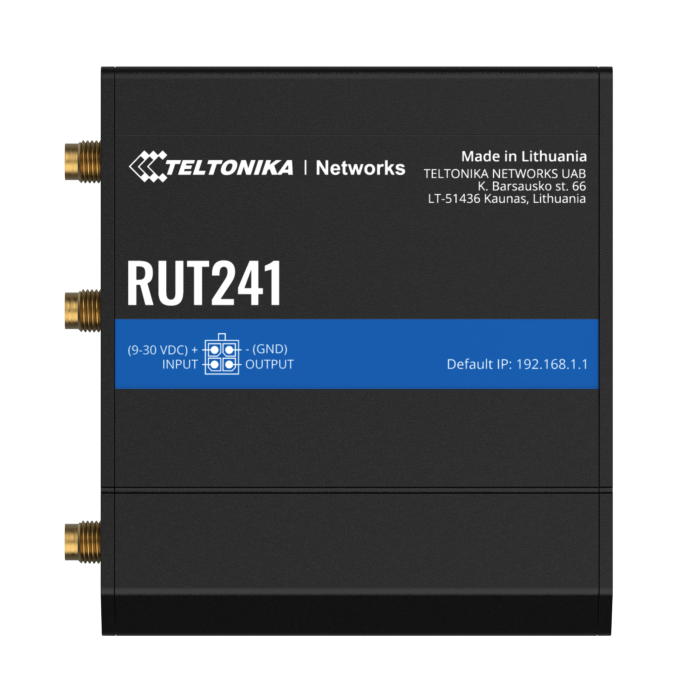

This version of RUT241 covers all worldwide used 4G frequencies. The Teltonika RUT241 GLOBAL is a powerful and efficient 4G router that allows you to set up a constant 4G / LTE internet connection at transfer rates of up to 150 Mbps (CAT4 standard) down- and 50 Mbps upload, as well as the establishment of a WiFi network in order to be able to share the 4G connection with several devices.
The Router has a external WiFi antenna which supports the 802.11 b/g/n WiFi standards and provides wireless receiving and transmitting rate up to 150 Mbps. It also has an integrated 10/100 Mbps Ethernet port. You can simply connect to the RUT 241 by Ethernet or WiFi to use the 4G connection or share data with others.
It has a very well developed fimware and high performance hardware which allows you to build up a reliable and constant 4G connection.
You simply have to insert your providers SIM card to the SIM slot of the RUT241. After a quick and easy configuration the RUT241 builds up the 4G connection and shares it to all the wired and wireless connected clients.
Additionally the RUT241 has a external SMA antenna connector. If you have a weak 4G connection you can easily use a high gain 4G antenna to increase the signal. You can find several 4G antennas in our webshop!
A user friendly webinterface allows an easy installation and configuration of the RUT241.
The TELTONILA RUT241 has no SIM- or NET-Lock! External SIM slot let’s you insert or change SIM card with relative ease, and the device will connect to the network right away without any need of reboot.
Technical Data:
| Manufacturer / Model: | TELTONIKA / RUT241 GLOBAL |
| Modes: | WiFi Client, WiFi Repeater, Bridge, Router, NAT Router, PPPoE Client, Port Forwarding, QOS, DHCP Server/Client, OpenVPN, LTE/4G backup WAN, SMS Reboot, RMS support, Wireless Hotspot, Backup WAN |
| Processor: | Mediatek, 580 MHz, MIPS 24KEc |
| Memory: | 128 MB DDR2 |
| Frequency: | 4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B26, B28 4G (LTE-TDD): B38, B39, B40, B41 3G: B1, B2, B4, B5, B6, B8, B19 2G: B2, B3, B5, B8 |
| WiFi users: | up to 50 simultaneous connections |
| Bandwidth: | 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps. |
| 4G Antenna: | 2 x 3dBi detachable omnidirectional antenna (SMA) |
| Features: | NAT, DHCP Server, Virtual Server, DMZ Host, Firewall mit IP-, MAC and Domain-Filter, VPN Pass Through (IPSec/PPTP), DynDNS |
| SIM Interface: | 1 x External Mini-SIM holder (No need to reboot) |
| WAN Interface: | 1 x 10/100Mbps WAN Port IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| LAN Interface: | 1 x LAN 10/100Mbps Ethernet port IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| WiFi Frequency: | IEEE 802.11b (11 Mbps) IEEE 802.11g (54 Mbps) IEEE 802.11n (150 Mbps) |
| Channels: | Europa: 13 USA: 11 |
| Security: | WPA2-Enterprise – PEAP, EAP-TLS, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes, Client separation |
| WiFi Antenna: | 1 x detachable antenna (RP-SMA) |
| Power Supply: | 9-30V |
| max. power consumption: | < 5W |
| Appliance: | Indoor |
| Dimensions: | 8,3cm x 7,4cm x 2,5cm |
| Casing: | Aluminium |
| Weight: | 125g |
| Operating temperature: | -40°C - 75°C |
| Storage temperature: | -45° ~ +75C |
| Operating humidity: | 10% ~ 90% non condensing |
Scope of delivery:
| 1 x TELTONIKA RUT241 GLOBAL Router |
| 1 x Manual |
| 2 x 3dBi 4G Antenna (SMA) |
| 1 x 5dBi WiFi Antenne (RP-SMA) |
| 1 x 2m CAT5e Ethernet cable |
| 1 x 9V/1A Power Supply |
