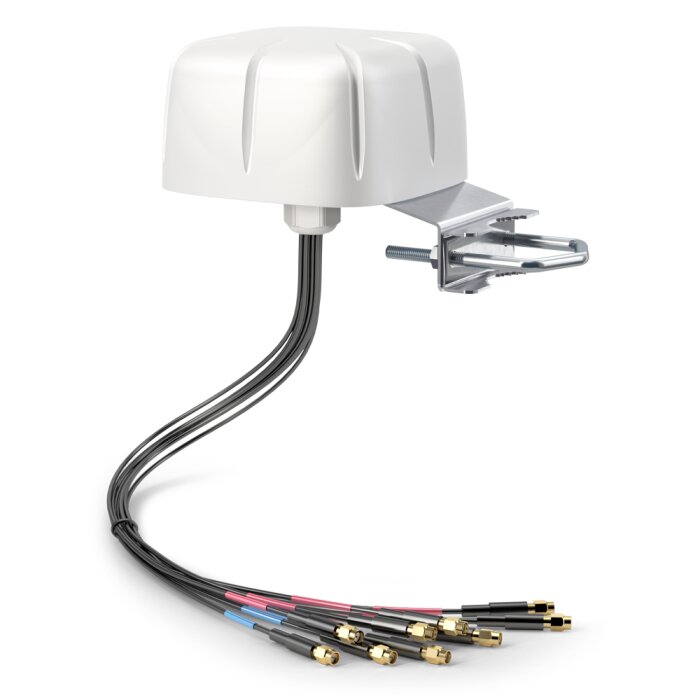

The Ultimate 9-in-1 Connectivity Hub for On-the-Go
Imagine being able to bundle all the signal power for 5G, the latest Wi-Fi 6E, and precise GPS in a single, elegant unit. That's exactly what the QuWireless QuShell 26G does. This Antenna is not a compromise solution, but a statement for maximum connectivity. Developed for mobile use on RVs, Yachts, or in a vehicle fleet, it eliminates the clutter of multiple individual Antennas and ensures a clean setup and superior performance. No matter where your journey takes you, with the QuShell 26G, your connection remains strong and stable.
Built for Extremes: IP67 Protection for Marine and Industry
When conditions get tough, the QuShell 26G shows its true strength. The Enclosure is certified with Protection Class IP67, meaning it is completely dust-tight and can even withstand temporary immersion in water. Made from UV-resistant ABS plastic, it withstands years of sun exposure, saltwater, and extreme temperatures from -40°C to +80°C. This durability makes it the first choice for marine applications or for critical industrial and IoT Antennas where failure is not an option.
Maximum Performance with 5G & Wi-Fi 6E
This Antenna is more than just a receiver – it's a performance booster for your Router. With 2x2 MIMO for 5G/4G and an impressive 6x6 MIMO configuration for Wi-Fi 6E, you are equipped for the highest speeds. The broad frequency coverage from 617 MHz to 6.0 GHz for mobile communications and up to 7.2 GHz for WiFi ensures that you always use the best available signal. The 360° Omni-Directional Antennas characteristic is perfect for mobile applications, as it receives signals from all directions without needing to be re-aligned.
Strengths & Notes at a Glance
- Pro: Extreme 9-in-1 integration reduces installation effort and potential sources of error.
- Pro: Future-proof thanks to broad 5G frequency coverage and full Wi-Fi 6E support.
- Pro: Extremely robust and weather-resistant with IP67 rating, ideal for marine and outdoor applications.
- Pro: Exceptionally versatile Mounting Systems included for almost any scenario.
- Note: The short standard Antenna Cables (50 cm) require the Router to be placed nearby.
- Note: As an Omni-Directional Antenna, it is ideal for mobile purposes; for stationary long-range connections, a Directional Antenna might be better.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuShell 26G |
| Manufacturer Part Number (MPN): | ASL26G |
| EAN: | 5905868602319 |
| Product Type: | Passive Multiband Outdoor Antenna |
| Integrated Antennas: | 9 (2x 5G/4G, 6x Wi-Fi 6E, 1x GPS/GNSS) |
| 5G / 4G Specifications | |
| MIMO Configuration (5G/4G): | 2x2 MIMO |
| Frequency Ranges (5G/4G): | 617-960 MHz | 1.7-2.7 GHz | 3.3-3.8 GHz | 4.2-6.0 GHz |
| Gain (617-960 MHz): | 2 dBi |
| Gain (1.7-2.7 GHz): | 4 dBi |
| Gain (3.3-3.8 GHz): | 5 dBi |
| Gain (4.2-6.0 GHz): | 6 dBi |
| Wi-Fi 6E Specifications | |
| MIMO Configuration (Wi-Fi): | 6x6 MIMO / Diversity |
| Frequency Ranges (Wi-Fi): | 2.4-2.5 GHz | 5.0-7.2 GHz |
| Gain (2.4-2.5 GHz): | 2 dBi |
| Gain (5.0-7.2 GHz): | 5 dBi |
| GPS / GNSS Specifications | |
| Antenna Type (GPS): | Active with LNA |
| LNA Gain (GPS): | 18 dB |
| Electrical & RF Characteristics | |
| Polarization: | Vertical |
| Radiation Pattern: | 360° Omnidirectional (Horizontal) |
| VSWR: | < 2.50 |
| Impedance: | 50 Ω |
| Maximum Input Power: | 50 W |
| DC Grounding: | Yes |
| Mechanics & Environment | |
| Housing Material: | UV-resistant ABS plastic |
| Protection Class: | IP67 |
| Operating Temperature: | -40°C to +80°C |
| Dimensions (L x W x H): | 160 x 160 x 240 mm |
| Weight (Antenna only): | 1.5 kg |
| Weight (Mounting Kit): | 0.4 kg |
| Connectors: | 6x RP-SMA (Wi-Fi), 3x SMA (5G/4G, GPS) |
| Standard Cable Length: | 50 cm |
| Mounting Kit Material: | Galvanized steel |
| Mast Diameter: | 40 - 60 mm |
Scope of Delivery
| 1 x QuWireless QuShell 26G Antenna (ASL26G) |
| 1 x Comprehensive Mounting Kit (Mast, Wall, Surface, Marine Mount) |
Frequently Asked Questions (FAQ)
Is the QuWireless QuShell 26G a standalone internet solution?
No, the QuShell 26G is a passive antenna. It absolutely requires a compatible 5G Routers or 4G Routers to process the signals. The antenna merely improves the reception and transmission quality of this router.
Can I install the antenna on my motorhome or boat?
Yes, absolutely. This Antenna is specifically designed for mobile applications, making it ideal for Yacht / Camper / Motorhome use. Thanks to its IP67 certification, it is water and dustproof, and the included Mounting Systems kit contains brackets for roofs and marine use.
What does 'Wi-Fi 6E' mean for this antenna?
Wi-Fi 6E extends the WiFi standard to include the 6 GHz frequency band. This WiFi Antennas can transmit and receive these frequencies, which, in conjunction with a Wi-Fi 6E-enabled WiFi Routers, leads to less interference and higher speeds. This aligns with Dual-Band / WiFi 6E / WiFi 7 Antennas capabilities.
How does the omni-directional (360°) characteristic affect performance?
An omni-directional antenna, such as a 5 GHz Omni-Directional Antennas or 2.4 GHz Omni-Directional Antennas, receives signals equally from all horizontal directions. This is ideal for vehicles and boats, as the antenna does not need to be constantly re-aligned with a transmission mast.
Do I need a separate power cable for the GPS function?
No. The active GPS/GNSS antenna, part of a comprehensive GNSS solution, receives the necessary voltage (phantom power) via the Coaxial Cables from the GPS port of the connected router. No separate power cable is required.
Is the installation complicated?
The mechanical Mounting & Accessories is relatively simple thanks to the versatile bracket set. The challenge lies in correctly and loss-free connecting the 9 short Antenna Cables to the corresponding ports on the Router.
