Your Connectivity Powerhouse for Every Challenge
You know the problem: no reliable connection on the go? In today's mobile world, a stable and fast internet connection is essential, whether in public Service vehicles, at sea, or in industrial IoT applications. Traditional antenna solutions are often not robust enough, offer insufficient coverage, or require multiple separate components, making installation complex and error-prone. This leads to frustrating connection drops, slow data transfers, and limited productivity, especially when it matters most. The QuWireless QuShell 22G is the answer to your mobile connectivity challenges. As an integrated 5-in-1 omnidirectional antenna, it combines 2x2 MIMO 5G/4G, 2x2 MIMO dual-band WLAN (2.4 & 5-7.2 GHz), and a high-performance GPS/GNSS antenna in a single, extremely durable housing. This combination eliminates the need for multiple Antennas and significantly simplifies installation. With its IP67 certification, it is completely weatherproof and operates reliably in a wide temperature range from -40°C to 80°C, making it the ideal choice for the most demanding environments. Perfect for your 4G / 5G Router.
Reliable on the Go: From Road to Sea
The QuShell 22G is your partner for connectivity wherever you need it. In the public sector and transport, it is ideal for use in public transport vehicles such as buses, trains, or trams. It provides a stable internet connection for passengers (WLAN) and telematics systems for operation (5G/4G, GNSS). For critical infrastructure and emergency services, such as in ambulances or fire trucks, this antenna ensures uninterrupted and fast data communication for emergency personnel, as well as precise positioning (GNSS) for navigation and coordination. The QuShell 22G also offers a reliable and weatherproof connectivity solution for robust IoT implementations in harsh industrial environments, on construction sites, or in agriculture. It is an excellent choice for vehicle Antennas - 4G, 5G, WLAN.
Maximum Performance, Minimum Complexity
In detail: The QuShell 22G covers an impressive frequency range of 617 MHz to 6000 MHz for 5G/4G, ensuring compatibility with all common 5G and 4G bands. The gain ranges from 2 dBi in the lower band up to 6 dBi in the upper frequency range, guaranteeing excellent signal strength and range. For WLAN, it offers 2x2 MIMO on 2.4 GHz and the extended 5-7.2 GHz bands, including support for the latest WiFi 6E standard, with a gain of up to 5 dBi. The integrated GPS/GNSS antenna features an 18 dB LNA amplifier, enabling precise positioning. The antenna is equipped with five 50 cm long RG174 coaxial cables, pre-terminated with 2x SMA connectors for 5G/4G, 1x SMA connector for GPS, and 2x RP-SMA connectors for WLAN. Its omnidirectional characteristic with a horizontal beamwidth of 360° and vertical polarization ensures uniform coverage in all directions.
Your Advantage: Connectivity That Thinks Ahead

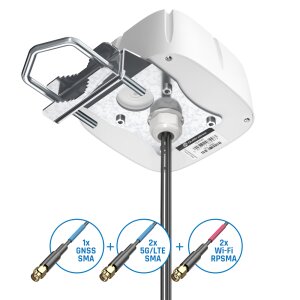

With the QuWireless QuShell 22G, you invest in a future-proof connectivity solution that offers you outstanding performance not only today but also tomorrow. The easy installation using the included mounting brackets for various surfaces (roof, mast, wall) saves time and costs. Its high robustness and broad compatibility with various routers make it a flexible and long-lasting investment for your critical applications. Experience uninterrupted communication and data transfer, even in the most demanding environments.
Strengths & Notes at a Glance
- Pro: Comprehensive 5-in-1 Connectivity: The integration of 5G/4G, GNSS, and dual-band WLAN (2.4/5-7.2 GHz) in a single housing significantly simplifies installation, reduces Cabling effort, and minimizes signal loss.
- Pro: Extremely Robust and Weatherproof Design: With IP67 certification, the antenna is fully protected against dust and temporary immersion in water and operates reliably in a wide temperature range from -40°C to 80°C, making it ideal for demanding outdoor and mobile applications.
- Pro: High Performance and Future-Proof: The antenna supports the latest WiFi 6E standard and covers an impressive frequency range from 617 MHz to 6000 MHz for 5G/4G, with a gain of up to 6 dBi for 5G/4G and 5 dBi for WLAN, ensuring excellent signal strength and range.
- Note: Fixed Cable Length as Standard: The standard cable length is 50 cm. For installations requiring longer cables, a customized variant must be ordered, which may incur additional costs or delivery times.

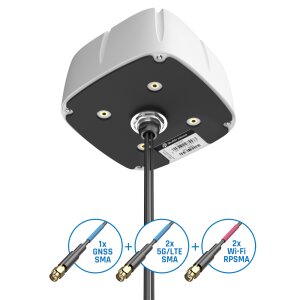

- Note: Optional Roof Mount Not Included in Standard Set: Although versatile mounting options (marine, surface, mast/wall) are included, the optional roof mount is not part of the standard set and must be requested or ordered separately.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuShell 22G |
| Product Type: | Mobility Antenna |
| Antenna Type: | Omnidirectional Antenna |
| 5G / 4G Frequency Range: | 617 - 960 MHz, 1.7 - 2.7 GHz, 3.3 - 3.8 GHz, 4.2 - 6.0 GHz (Total: 617 - 6000 MHz) |
| 5G / 4G Gain: | 2 dBi (617-960 MHz), 4 dBi (1.7-2.7 GHz), 5 dBi (3.3-3.8 GHz), 6 dBi (4.2-6.0 GHz) |
| WLAN Frequency Range: | 2.4 - 2.5 GHz, 5 - 7.2 GHz (WiFi 6E compatible) |
| WLAN Gain: | 2 dBi (2.4-2.5 GHz), 5 dBi (5-7.2 GHz) |
| GNSS: | Integrated GPS/GNSS Antenna with 18 dB LNA Amplifier |
| MIMO: | 2x2 MIMO for 5G/4G, 2x2 MIMO for WLAN |
| Cable Type: | 5 x 50cm RG174 Coaxial Cable |
| Connectors: | 2 x SMA Male (5G / 4G), 1 x SMA Male (GPS), 2 x RP-SMA Male (WLAN) |
| Impedance: | 50 Ohm |
| VSWR: | < 2.50 (WLAN), <1.20, max <2.50 (5G/4G) |
| Polarization: | Vertical |
| Beamwidth (Horizontal): | 360° |
| Beamwidth (Vertical): | 25° |
| Protection Class: | IP67 |
| Temperature Range: | -40°C to 80°C |
Scope of Delivery
| 1 x QuWireless QuShell 22G 5in1 Mobility Antenna |
Frequently Asked Questions (FAQ)
What does "5in1" mean for the QuWireless QuShell 22G?
The "5in1" designation means that your antenna combines five different antenna functions in a single, integrated housing: two Antennas for 5G/LTE (for 2x2 MIMO), one antenna for GPS/GNSS, and two antennas for dual-band WiFi (for 2x2 MIMO).
Which WiFi standards does the QuShell 22G support?
The QuShell 22G supports dual-band WiFi in the 2.4 GHz and 5-7.2 GHz range and is fully compatible with the latest WiFi 6E standard (802.11ax). This ensures you are always optimally connected.
Is the QuWireless QuShell 22G waterproof?
Yes, the QuShell 22G features a robust housing with IP67 certification. This means it is fully protected against dust and water ingress during temporary immersion, so you don't have to worry.
For which applications is the QuShell 22G best suited?
It is ideal for demanding mobile applications in various areas, including public transport (buses, trains), emergency vehicles (fire brigade, ambulances), marine environments (yachts, boats), tourism, and various IoT systems. You can use it versatilely.
Which frequency ranges does the 5G/LTE antenna cover?
The 5G/LTE antenna of your QuShell 22G covers a wide frequency range from 617 MHz to 6000 MHz to ensure compatibility with all common 5G and LTE bands. This ensures you always have the best connection.
What mounting options are available for the QuShell 22G?
The QuShell 22G comes with various brackets that allow for flexible installation, including mounting on roofs, masts, walls, or other flat surfaces.
