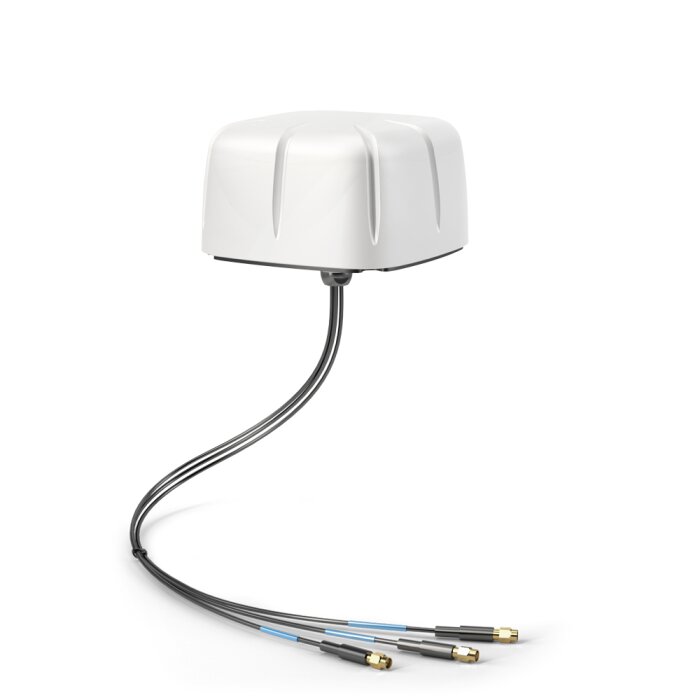

Built for Extremes: Your IP67 5G/4G/GPS Combo Antenna
Where other Antennas give up, the QuWireless QuShell 20G is just getting started. Developed for demanding mobile use – be it on the roof of your motorhome, on board your yacht, or on an industrial vehicle. The IP67 certified housing is absolutely dustproof and even withstands temporary submersion. The massive operating temperature range of -40°C to +80°C guarantees reliable performance, whether in arctic cold or desert heat. This Antenna is your reliable partner for stable connectivity when it matters.
Intelligent Technology for Maximum Performance
The QuShell 20G is more than just a robust housing. It is a highly developed omnidirectional 5G Antenna for poor reception, which can process multiple data streams simultaneously thanks to 2x2 MIMO technology. The result: higher speeds and a significantly more stable connection to your 5G or 4G router. As one of the most versatile 4G Antennas on the market, it ensures reliable 360° coverage, perfect for vehicles and ships, as the antenna does not need to be constantly realigned. The integrated, active GNSS antenna also provides precise location data for your navigation and tracking applications.
Strengths & Notes at a Glance
- Pro: Extreme robustness (IP67, -40°C to +80°C) for use under the most demanding conditions.
- Pro: Integrated 3-in-1 functionality (2x2 MIMO 5G/4G + GNSS) minimizes installation effort and saves space.
- Pro: Very wide frequency coverage (617-6000 MHz) ensures global compatibility and future-proofing.
- Pro: Flexible mounting kit for mast, wall, and marine applications is already included in the scope of delivery.
- Note: The permanently integrated cables are very short at 50 cm and require the router to be placed nearby or the use of extension cables.
- Note: For stationary applications with a large distance to the transmission mast, a directional antenna can achieve higher gain.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuShell 20G |
| HAN/MPN: | ASL20G |
| EAN: | 5905868602289 |
| Product Type: | External 3-in-1 Antenna |
| Application Area: | Mobility (Vehicles, Ships), Industry, IoT, Stationary |
| Country of Manufacture: | Europe |
| 5G/4G Specifications | |
| MIMO Technology: | 2x2 MIMO |
| Frequency Range 1: | 617 - 960 MHz |
| Frequency Range 2: | 1700 - 2700 MHz |
| Frequency Range 3: | 3300 - 6000 MHz |
| Antenna Gain (617-960 MHz): | 2 dBi |
| Antenna Gain (1.7-2.7 GHz): | 3 dBi |
| Antenna Gain (3.3-6.0 GHz): | 4 dBi |
| Supported 5G Bands: | n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n78, n79 u.v.m. |
| Supported 4G Bands: | 1, 3, 7, 8, 20, 28, 32, 38, 40, 41, 42, 43 u.v.m. |
| VSWR: | <1.20 (max. <2.50) |
| Radiation Pattern: | Omnidirectional (360°) |
| Beamwidth: | 360°/35° ±5° |
| Polarization: | Vertical |
| Impedance: | 50 Ohm |
| GNSS Specifications | |
| Function: | Active GPS/GNSS Antenna |
| Integrated Amplifier (LNA): | Yes, 18 dB Gain |
| Physical Properties | |
| Housing Material: | ABS Plastic |
| Protection Class: | IP67 |
| Operating Temperature: | -40°C to +80°C |
| Dimensions (W x L x H): | 160 x 160 x 90 mm |
| Weight: | 1.5 kg |
| Connections | |
| Number of Cables: | 3 (2x 5G/4G, 1x GNSS) |
| Cable Type: | RG174 |
| Cable Length: | 50 cm |
| Connectors: | SMA-Male |
Scope of Delivery
| 1 x QuWireless QuShell 20G Antenna |
| 1 x Mounting Kit (for Surface, Mast/Wall, and Marine Mounting) |
Frequently Asked Questions (FAQ)
Which networks is the QuWireless QuShell 20G suitable for?
The QuWireless QuShell 20G is designed for 5G, 4G/LTE, and GNSS (GPS) networks. It covers a broad frequency spectrum from 617 MHz to 6000 MHz to ensure global compatibility for various Network types.
What does 2x2 MIMO mean for the QuShell 20G Antenna?
2x2 MIMO (Multiple Input Multiple Output) means that the antenna has two separate transmit and receive elements for 5G/4G. This allows for the simultaneous use of multiple data streams, leading to higher data transfer rates and a more reliable connection, enhancing your overall Network performance with advanced Antennas.
What mounting options does the QuWireless QuShell 20G offer?
The antenna comes standard with a versatile Mounting Systems kit. This allows for flexible installation on roofs, masts, walls, or other flat surfaces. Special mounts for maritime use, ideal for Yacht / Camper / Motorhome applications, are also included.
Is the antenna suitable for use on boats and yachts?
Yes, absolutely. Thanks to its robust construction, IP67 certification (water protection), and the included marine mount, the QuShell 20G is ideally suited for use in maritime environments, making it a great choice for Yacht / Camper / Motorhome users seeking reliable 4G / LTE Outdoor Antennas or 5G Antennas / Outdoor Antennas.
Why is placing the router close to the antenna important?
Every Antenna Cables causes some signal loss. Since the QuShell 20G has short cables, it is optimized for the router to be mounted very close. This minimizes signal loss between the antenna and the router, maximizing the performance of the overall system, especially for 5G Routers or 4G / LTE Routers.
Does the GNSS/GPS antenna require a separate Power Supply?
The active GNSS antenna is typically supplied with the necessary voltage via the GNSS port of the connected router. No separate external power source is required for the antenna itself, simplifying your Powerline / DLAN setup.
