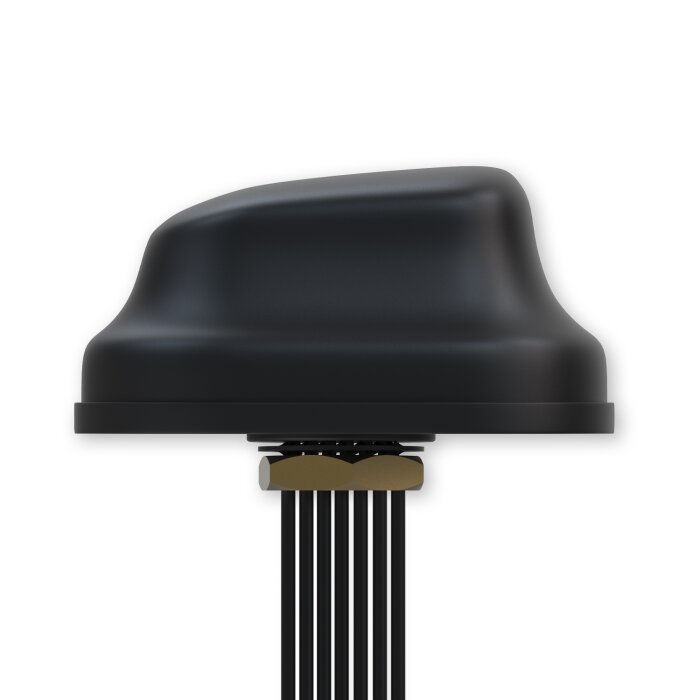

The Teltonika PR1KC640 Combo 5G 4G (LTE) / WiFi / GNSS antenna can be used both as a vehicle roof antenna and for ceiling and housing installations. The weatherproof outdoor antenna supports all 5G and 4G (LTE) frequencies used in Europe, as well as GNSS and the WiFi frequency bands 2.4 and 5 GHz. The antenna housing contains a 4x4 MIMO 5G / 4G (LTE) antenna, a 2x2 MIMO WiFi antenna, and a GNSS antenna (GPS / GLONASS, etc.). The housing of the antenna is made of robust, weatherproof, and durable plastic and can be used at temperatures from -40° to +85°.
Areas of application
- Private vehicles, campers, caravans, motorhomes
- Public vehicles, trucks, tractors, industrial vehicles
- Installations on ceilings, equipment cabinets, or vending machines
- M2M (Machine to Machine) and other IoT (Internet of Things) applications
Connection cables
- 4 x 3m LMR100 cables 5G / 4G (LTE) with SMA connectors
- 2 x 3m LMR100 cables WiFi with RP-SMA connectors
- 1 x 3m LMR100 cable GPS / GLONASS with SMA connector
Technical specifications:
| Manufacturer / Model: | Teltonika / PR1KC640 |
| Antenna type: | Omnidirectional antenna |
| Cables / Connectors: | 4 x 3m cables / SMA connectors (5G / 4G (LTE)) 2 x 3m cables / RP-SMA connectors (WiFi) 1 x 3m cable / SMA connector (GPS) |
| Application area: | Indoor and outdoor |
| IP protection class: | IP 67 (excluding cable outlet) |
| Operating temperature: | -40° to 85° C |
| Humidity range: | up to 95% |
| Dimensions: | 18.9 x 18.2 x 8.5 cm |
| Color: | Black |
GPS / GLONASS:
| Frequency range: | 1164-1300 / 1559-1610 MHz |
| Gain: | 40 +- 2dB |
| VSWR: | max. 2.0 |
| Polarization: | R.H.C.P. |
| Impedance: | 50 Ohm |
| Power supply: | 3 - 12 VDC |
| Power consumption: | max. 60mA |
WiFi:
| Frequency range: | 2.4 GHz & 5 GHz |
| Gain: | 4dBi |
| VSWR: | max. 2.5 |
| Polarization: | Vertical (Linear) |
| Impedance | 50 Ohm |
4G (LTE):
| Frequency range: | 617 - 960 / 1710 - 2690 / 2900 - 4200 MHz |
| Gain: | 4dBi |
| VSWR: | max. 3.0 |
| Polarization: | Vertical (Linear) |
| Impedance | 50 Ohm |
Scope of delivery:
| 1 x Teltonika PR1KC640 antenna |
