No More Dead Zones: Your Solution for Reliable 5G & 4G
Do you know the feeling when the mobile signal just isn't enough? Whether in remote rural areas, on the farm, or in an industrial area where every data point counts – the Poynting XPOL-2-5G v3 is your answer to weak connections. This powerful directional antenna captures even distant signals from mobile phone masts and amplifies them, so you finally get stable internet access for your home, office, or your 4G / 5G Routers. It's perfect for households relying on 4G/5G networks or for industrial IoT applications that require uninterrupted data transmission.
Engineering Meets Mobile Communications: The Metamaterial Revolution
The Poynting XPOL-2-5G v3 is not just an antenna, but a technical masterpiece. Through innovative Metamaterial Technology with Artificial Magnetic Conductors (AMC) and a patent-pending radiator configuration, it offers significantly improved bandwidth and higher gain than its predecessors. Its cross-polarized 2x2 MIMO configuration means it combines two separate antenna elements in one housing. The result? Significantly higher data throughput, superior signal stability, and improved connection quality in all 2G, 3G, 4G, and 5G networks.
Built for Any Weather: Robustness That Convinces
No matter what challenges nature holds, the Poynting XPOL-2-5G v3 stands its ground. Its robust, IP65 weatherproof housing made of UV-stable ASA radome material reliably protects it from dust, water, and even corrosive environments. From biting cold at -40°C to scorching heat at +80°C – this outdoor antenna consistently delivers peak performance. This makes it the ideal choice for optimizing EV charging stations, wind and solar farms, or for agricultural connectivity, where reliable communication is essential. Installation is incredibly easy thanks to the included Antenna Mounting Accessories for wall and mast mounting.
Maximum Performance, Maximum Future-Proofing: Your Advantage with the XPOL-2-5G v3
The Poynting XPOL-2-5G v3 covers an extremely wide frequency range from 617 MHz to 4200 MHz, including the new 3400 – 4200 MHz 5G bands. This not only guarantees excellent performance in current 4G networks but also makes your investment absolutely future-proof for upcoming 5G standards. With a Peak Gain of up to 11dBi and the ability for Carrier Aggregation, which bundles multiple frequency bands, you achieve maximum speeds and unsurpassed connection quality. The high-quality 4G / 5G Antenna Cables are permanently connected and minimize signal loss.
Strengths & Notes at a Glance
- Pro: Excellent performance and extended frequency coverage from 617 MHz to 4200 MHz, including new 5G bands, with up to 11dBi gain.
- Pro: Advanced Metamaterial Technology with Artificial Magnetic Conductors (AMC) for optimized radiation patterns and consistent broadband performance.
- Pro: Robust and weatherproof design according to IP65 with UV-stable ASA radome, ideal for extreme outdoor conditions and corrosive environments.
- Note: As a directional antenna, the XPOL-2-5G v3 requires precise alignment with the mobile phone mast to achieve optimal performance, which can make installation more complex.
- Note: The included cable length and connector type may vary depending on the specific product variant (e.g., A-XPOL-0002-V3-03 or A-XPOL-0002-V3-01); please check the exact SKU for your requirements.
Specifications & Features
| Manufacturer: | Poynting Antenna Solutions |
| Model: | XPOL-2-5G v3 (XPOL-2-V3) |
| Antenna Type: | Cross-Polarized (XPOL) 2x2 MIMO Directional Antenna |
| Frequency Range 1: | 617 – 960 MHz |
| Frequency Range 2: | 1710 – 2170 MHz |
| Frequency Range 3: | 2300 – 2700 MHz |
| Frequency Range 4 (5G): | 3400 – 4200 MHz |
| Peak Gain (Maximum): | 11 dBi |
| Gain @ 617-894 MHz: | 9 dBi |
| Gain @ 1710-2700 MHz: | 10 dBi |
| Gain @ 3400-3800 MHz: | 11 dBi |
| MIMO Configuration: | 2x2 MIMO |
| Polarization: | Cross-Polarized (±45°) |
| Technology: | Advanced Metamaterial Technology, AMC, patent-pending radiator configuration |
| Supported Networks: | 2G, 3G, 4G, 4G, 5G |
| VSWR: | < 2.0:1 (typical) |
| Input Impedance: | 50 Ohm (Nominal) |
| DC Short: | Yes (Protection against static charge) |
| IP Rating: | IP65 (weather, dust, and vandal resistant) |
| Radome Material: | UV-stable ASA |
| Radome Color: | Brilliant White (Pantone P 179-1 C) |
| Mounting Type: | Wall and Mast Mount (Z-bracket included) |
| Antenna Wind Survival: | <250 km/h |
| Wind Survival (included Z-bracket): | <160 km/h |
| Operating Temperature Range: | -40°C to +80°C |
| Product Dimensions: | 265 mm x 265 mm x 90 mm |
| Cable Type: | Twin HDF 195 / H-155 Low-Loss |
| Cable Length: | 5 Meters (fixed) |
| Connector Type: | 2x SMA (M) |
| Salt Fog Test: | MIL-STD 810F / ASTM B117 |
Scope of Delivery
| 1x Poynting XPOL-2-5G v3 Antenna |
| 1x Z-Mounting Bracket (Stainless Steel) |
| 1x 5m Twin HDF 195 / H-155 Cable (permanently attached) |
Frequently Asked Questions (FAQ)
What does 2x2 MIMO mean for the Poynting XPOL-2-5G v3 antenna?
2x2 MIMO (Multiple-Input Multiple-Output) means that your antenna contains two separate antenna elements in one housing that can simultaneously send and receive data. This improves data throughput, signal stability, and the quality of your connection in 2G, 3G, 4G, and 5G networks.
Is the Poynting XPOL-2-5G v3 backward compatible with older mobile communication standards?
Yes, your XPOL-2-5G v3 is fully backward compatible and supports 2G, 3G, 4G, and LTE networks, in addition to 5G connectivity.
Can the Poynting XPOL-2-5G v3 be used in extreme weather conditions?
Yes, your antenna features a robust, weather-resistant housing with an IP65 rating, protecting it against dust and water. The UV-stable ASA radome material also provides protection in corrosive environments, making it suitable for harsh outdoor conditions.
Which frequency bands does the Poynting XPOL-2-5G v3 cover?
Your antenna covers a very wide frequency range, including 617 – 960 MHz, 1710 – 2170 MHz, 2300 – 2700 MHz, and the newer 3400 – 4200 MHz 5G bands.

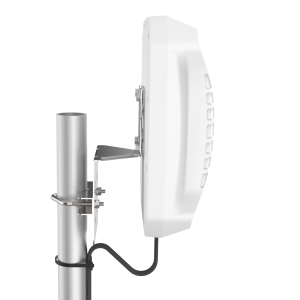

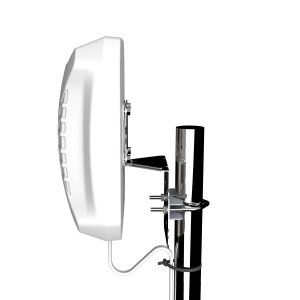

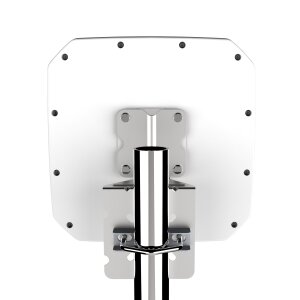

How is the Poynting XPOL-2-5G v3 mounted?
Your antenna comes standard with a mounting bracket (Z-bracket) and screws, which you can use for both wall and pole mounting.
What is the 'Metamaterial Technology' used in the XPOL-2-5G v3?
Metamaterial technology, particularly the use of Artificial Magnetic Conductors (AMC), is an advanced internal redesign of your antenna. It enables a significant improvement in bandwidth and gain compared to previous versions and optimizes radiation patterns for higher efficiency.
