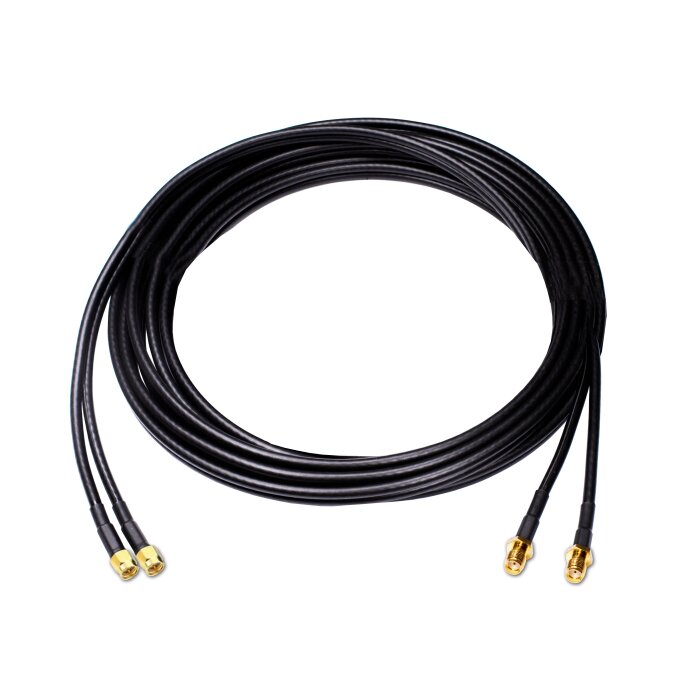

The twin/dual antenna cable (two cables in one strand) is equipped with an SMA male to SMA female connector combination. The 4G / 5G antenna cable is flexible, well-crafted, and well-balanced in terms of signal loss and flexibility. This cable is specifically designed for extending an existing antenna cable between an 4G or 5G antenna and an 4G or 5G router. The cable is available in lengths of 5m and 10m. If you need a custom length, you can easily use our cable configurator.
Technical Data:
| Cable: | TWIN / Dual |
| Length: | 5m |
| Impedance: | 50 Ohm |
| Loss: | 0,30db/m @ 800MHz 0,46db/m @ 1,8GHz 0,56db/m @ 2,6GHz |
| Capacity: | 80.3pf/m |
| Inner conductor: | 1.12mm Copper |
| Isolation: | 2.95mm PE |
| Jacket: | PVC |
| Outer diameter: | 4.95mm |
| Color: | Black |

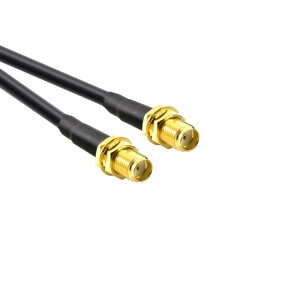

| Connector: | SMA male to SMA female |
Scope of delivery:
| 1 x 5m Twin Antenna extension cable with SMA male to SMA female |
