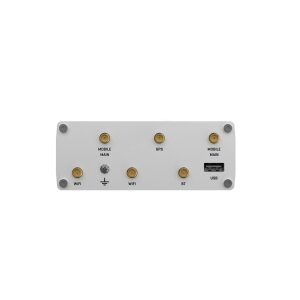

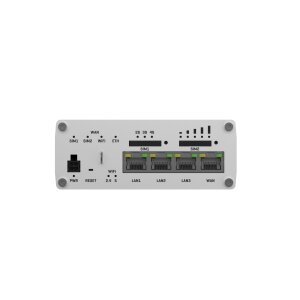

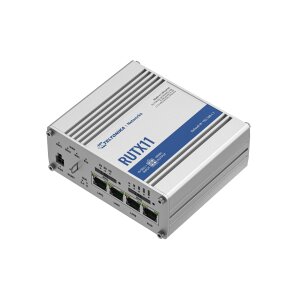

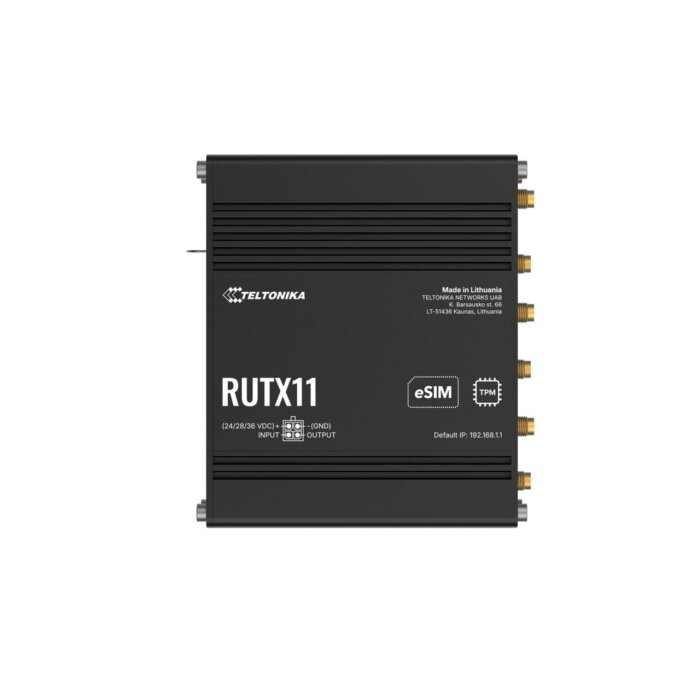

TELTONIKA RUTX11 is the most feature rich among all the RUTX series devices. Wide range of internal hardware interfaces allows this device to be used in power hungry Industrial applications where speed and robustness is at the heart of solution. Quad Core ARM Cortex A7 717 MHz CPU and 256 MBytes DDR3 RAM assures smooth VPN data acquisition. Would that be Enterprise office of power hungry Digital signage with 8k HDTV solution, RUTX11 can handle it all. In addition Bluetooth LE allows sensors to be connected directly to router, thus minimizing overall solution ecosystem.
The RUTX11 4G router allows you to set up a constant 4G or 3G internet connection with transfer rates of up to 300 Mbps down / 50 Mbps uplink in 4G mode (CAT6 standard) and 42 Mbps down / 5.76 Mbps upload in 3G mode (DC-HSPA+ standard). With its integrated high-speed 802.11ac / Wave2 dual-band WiFi access point, wireless data rates of up to 867 Mbps are possible. In addition, the RUTX11 has a built-in 4-port Gigabit Ethernet switch.
The TELTONIKA RUTX11 4G router has two SIM card slots. You can use two differend providers to build a redundant 4G or 3G connection with Failover and Fallback function.
The user-friendly web interface allows all users to comfortably configure the router. The RUTX11 can also be managed using the TELTONIKA RMS system.
The rugged aluminum housing, solid engineering and the firmware ensure consistent performance and durability of TELTONIKA RUTX11.
Technical Data:
| Manufacturer / Model: | TELTONIKA / RUTX11 |
| Modes: | Router, NAT Router, Bridge, PPPoE Client |
| Processor: | Quad-core ARM Cortex A7, 717MHz |
| Memory: | 256MB, DDR |
| FLASH memory: | 256MB SPI Flash |
| Frequency: | LTE FDD B1, B3, B5, B7, B8, B20, B28, B32 LTE TDD: B38, B40, B41 3G: B1, B3, B5, B8 |
| Bandwidth 4G: | Download: 300Mbps (CAT6) Upload: 50 Mbps |
| Bandwidth 3G: | Download: 42Mbps Upload: 5.76Mbps |
| 4G/3G Antenna: | 2 x 3dBi Omni Antenna |
| GPS: | GPS, GLONASS, BeiDou, Galileo and QZSS |
| WLAN: | IEEE 802.11b (11 Mbps) IEEE 802.11g (54 Mbps) IEEE 802.11n (300 Mbps) IEEE 802.11ac (867 Mbps) |
| Security: | WPA2-Enterprise - PEAP, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation |
| WiFi Antenna: | 2 x Dualband Omni Antenna (RP-SMA) |
| Features: | NAT, DHCP Server/Client, Virtual Server, DMZ Host, Firewall with IP-, MAC and Domain-Filter, RMS support, 4G/3G backup WAN function, OpenVPN, PPTP, L2TP, QOS, IPsec, Port Forwarding, VRRP, GRE Tunnel, SMS Control, DynDNS, Input Triggers, Samba Share, GPS |
| Interfaces: | 1 x USB 2.0 (A) |
| SIM Interface: | 2 x Standard Mini-SIM Slot |
| WAN Interface: | 1 x 10/100/1000 Mbps WAN Port |
| LAN Interface: | 4 x Gigabit RJ45 Ports (Auto MDI-X, Auto-Negotiation) |
| Power Supply: | 9-50V |
| Power consumption: | max. 11W |
| Appliance: | Indoor |
| E-mark certification: | Yes |
| Dimensions: | 11.5 x 9.5 x 4.4 cm |
| Casing: | Aluminium |
| Weight: | 456g |
| Operating temperature: | -40°C to 70°C |
| Humidity: | 10% ~ 90% non condensing |
Scope of delivery:
| 1 x TELTONIKA RUTX11 4G Router |
| 2 x 3dBi 3G/4G Antenna (SMA) |
| 2 x Dualband WiFi Antenna (RP-SMA) |
| 1 x Bluetooth Antenna (RP-SMA) |
| 1 x GPS Antenne (SMA) |
| 1 x 1m CAT5e Ethernet cable |
| 1 x 12V/1.5A Power Supply with terminal block |
| 1 x Manual |
