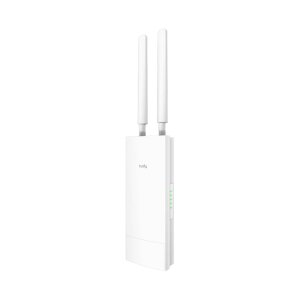

Your WiFi, now outdoors too – without compromise
Imagine streaming your favorite series in the garden, making a video call on the terrace, or working relaxed by the pool – all with the same stable and fast connection as indoors. The Cudy AP1300 Outdoor WiFi Access Point makes exactly that possible. Developed for the toughest conditions, it brings reliable dual-band Wi-Fi 5 (AC1200 WiFi) outdoors. No rain, no dust, no extreme temperatures can harm this outdoor professional. Extend your existing Network or create a completely new outdoor zone with this powerful device.
Maximum Flexibility and Security for Your Outdoor Network
The Cudy AP1300 Outdoor is a true multi-talent. Whether you want to use it as a WiFi Repeater for range extension, as a standalone Outdoor WiFi Router, or as a WISP Router – it adapts to your needs. Particularly clever: The integrated VPN functionality (WireGuard, OpenVPN, IPSec, L2TP, PPTP) protects your data outdoors. This allows you to establish secure connections to your home or company Network or even host a VPN server directly on the Access Point. For businesses or cafés, the support for a Captive Portal (Guest Portal) is a real highlight to offer controlled and branded guest access. The detachable Antennas also allow you to adjust the signal quality or use even more powerful WiFi Antennas if required.
Easy Installation, Strong Performance – Everywhere
Forget complicated wiring. Thanks to Power over Ethernet (PoE), you simply power the Cudy AP1300 Outdoor with power and data via a single Ethernet cable. A suitable PoE Injector / Power Supply is even included! This significantly simplifies installation, especially in locations without direct power outlets. With MU-MIMO Beamforming, multiple devices are efficiently supplied simultaneously, and the signal is precisely directed to your end devices. Enjoy a WiFi range of up to 170 meters in open areas and effortlessly extend your Garden WiFi. Whether for temporary event connectivity, the networking of IoT devices in agriculture, or the expansion of your smart home system outdoors – this WiFi Access Point delivers reliably.
Robustness that Convinces – in Any Weather
The Cudy AP1300 Outdoor is not only powerful but also extremely resilient. With its IP65 weatherproof certification, it is dust-tight and protected against water jets. It was developed for operating temperatures from -40°C to 65°C and features impressive 4KV Lightning Protection on the Ethernet port, as well as 8 KV contact and 15 KV air ESD protection. This means for you: maximum reliability and longevity, even under the most extreme conditions. You can rely on your outdoor network to function stably and securely all year round.
Strengths & Notes at a Glance
- Pro: Extremely robust and weatherproof with IP65 certification, wide operating temperature range from -40°C to 65°C, and 4KV lightning/surge protection for year-round outdoor use.
- Pro: Versatile operating modes (Access Point, Router, Repeater, WISP, Outdoor Mesh WiFi) and easy expansion thanks to Cudy Mesh support and detachable Antennas.
- Pro: Flexible power supply via 802.3at/af PoE and passive 24-57V PoE (including adapter) for uncomplicated installation in locations without power outlets.
- Pro: Powerful AC1200 WiFi with dual-band, MU-MIMO Beamforming, and Outdoor Gigabit Ethernet for high speeds and efficient device supply.
- Note: For the full functionality of a seamless mesh network, a Cudy Mesh Router/AC as a gateway with firmware > 15.28 is required.
- Note: The included passive PoE adapter is not waterproof and must be installed in a protected location.
Specifications & Features
| Manufacturer: | Cudy |
| Model Name: | AP1300 Outdoor (V1.0) |
| WiFi Standards: | IEEE 802.11ac/n/g/b/a (Wi-Fi 5) |
| Frequency Bands: | 2.4 GHz, 5 GHz |
| WiFi Speed 5 GHz: | Up to 867 Mbit/s |
| WiFi Speed 2.4 GHz: | Up to 300 Mbit/s |
| Total WiFi Speed: | 1167 Mbit/s (AC1200) |
| Antenna Type: | 2x Detachable Omni-directional Antennas |
| Antenna Gain: | 5 dBi (external) |
| Antenna Connectors: | RP-SMA |
| MIMO Technology: | 2T2R MIMO, MU-MIMO |
| Signal Amplification: | Beamforming (TxBF) |

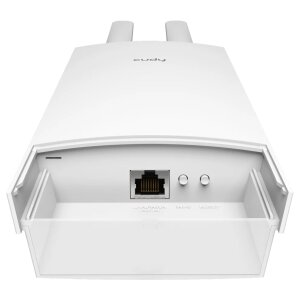

| Ethernet Ports: | 1x Shielded Gigabit Ethernet (RJ-45, 10/100/1000 Mbps) |
| Standard PoE: | 802.3at/af (PoE In) |
| Passive PoE: | 24-57V DC (48V Adapter typically included) |
| Max. Power Consumption: | 18 W (with 802.3at PoE) |
| Idle Power Consumption: | 5 W |
| Protection Class: | IP65 (Dust-tight, protected against water jets) |
| Operating Temperature: | -40°C to 65°C |
| Humidity (Operating): | 10% ~ 90% non-condensing |
| Lightning/Surge Protection: | 4 KV (on Ethernet port) |
| ESD Protection: | 8 KV Contact / 15 KV Air |
| Maximum Range (Open Field): | approx. 170 m (550 ft) |
| Maximum Connected Devices: | 100 (max. 128 simultaneous connections) |
| Processor: | 880 MHz Dual-Core |
| Flash Memory: | 16 MB (128 Mbit) |
| RAM (DDR): | 128 MB (1 Gbit) |

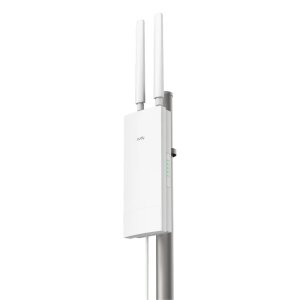

| Mounting: | Pole/Wall Mounting (Kits included) |

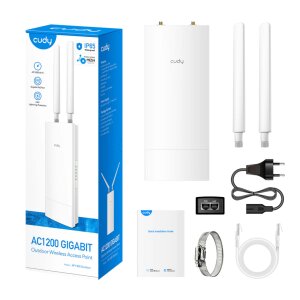

Scope of Delivery
| 1 x Cudy AP1300 Outdoor WiFi Access Point |
| 1 x PoE Adapter (passive, not weatherproof) |
| 2 x Detachable Omni-directional Antennas |
| 1 x Mounting Kit for Wall and Pole Mounting |
| 1 x Quick Start Guide |
Frequently Asked Questions (FAQ)
What does AC1200 mean for a WiFi Access Point like the Cudy AP1300 Outdoor?
AC1200 indicates the maximum theoretical combined WiFi speed of your device. For your Cudy AP1300 Outdoor, this means 867 Mbps in the 5 GHz band and 300 Mbps in the 2.4 GHz band.
Is the Cudy AP1300 Outdoor truly waterproof and suitable for extreme temperatures?
Yes, your Cudy AP1300 Outdoor is IP65 certified, which means it's dustproof and protected against water jets. It's designed for operating temperatures from -20°C to 60°C, with an extended range of -40°C to 65°C, making it very robust for your extreme outdoor conditions.
Can I also use the Cudy AP1300 Outdoor as a regular WiFi router?
Yes, your Cudy AP1300 Outdoor is multifunctional and can be operated by you not only in Access Point mode but also as a WiFi router, Range Extender, WISP router, or Mesh router.
What advantages does Power over Ethernet (PoE) offer for the installation of this device?
PoE enables power supply and data transmission over a single Ethernet cable. This significantly simplifies your outdoor installation, as you don't need a separate power outlet near the Access Point, thus reducing Cabling.
Does the Cudy AP1300 Outdoor support Mesh WiFi systems?
Yes, your Cudy AP1300 Outdoor supports Cudy Mesh technology, which provides you with seamless WiFi coverage and roaming over larger areas when you connect it with other Cudy Mesh devices.
What is the range of the Cudy AP1300 Outdoor in different environments?
The range of your Cudy AP1300 Outdoor varies depending on the environment. In open fields, it can be up to 170 meters (550 ft), in parks about 150 meters (500 ft), in busy streets approximately 50 meters (160 ft), and in wooded areas about 30 meters (100 ft).
