GPS Synchronization: The Secret to Stable PtMP Networks
The decisive advantage of the Ubiquiti LiteAP GPS lies in its integrated GPS Sync Technology. When you operate multiple sector Access Points on one mast to achieve 360° coverage, the problem of self-interference usually arises – the Access Points interfere with each other. The LAP-GPS elegantly solves this problem: the GPS signal precisely synchronizes the transmit and receive cycles of all co-located devices. The result is an extremely stable, interference-free Network with significantly higher overall throughput and more efficient use of the available frequency spectrum. This allows you to build scalable and reliable wireless networks for your customers.
Designed for Efficiency and Fast Installation
Time is money, especially during on-site installation. Ubiquiti designed the LiteAP GPS for maximum efficiency. The device is extremely light at 752 grams and comes with an innovative ball joint mount that allows for quick assembly and precise, flexible alignment in three axes. Another highlight is the separate management radio. Instead of connecting your laptop via cable, you can simply connect to the 2.4 GHz WiFi with your smartphone and configure the Access Point via the UISP™ App in just a few minutes. This saves time and significantly simplifies the entire setup process.
Powerful airMAX ac Technology for Long Range
The LiteAP GPS uses Ubiquiti's proprietary airMAX ac protocol, which is optimized for maximum performance in outdoor environments. It is not compatible with standard WiFi clients but unfolds its full strength in conjunction with other Ubiquiti airMAX devices such as LiteBeam, NanoStation, or PowerBeam. With a transmit power of up to 25 dBm and an Antenna gain of 17 dBi, connections over 12 kilometers are possible. The Access Point can serve over 50 clients and achieves an aggregated TCP/IP throughput of over 450 Mbps, making it the ideal base station for Internet Service Providers (WISPs) and demanding Campus networks.
Strengths & Notes at a Glance
- Pro: GPS synchronization enables extremely dense and interference-free installation of multiple sector Access Points.
- Pro: Outstanding price-performance ratio for a solution with carrier-class features.
- Pro: Quick and uncomplicated installation thanks to ball joint mount and 2.4 GHz management WiFi.
- Pro: Very robust and weather-resistant design for reliable outdoor use.
- Note: The CPU can become a bottleneck with very high overall throughput and many clients.
- Note: Only works with other Ubiquiti airMAX ac client devices, not with standard WiFi clients.
Specifications & Features
| Manufacturer: | Ubiquiti |
| Model: | LiteAP GPS (LAP-GPS) |
| EAN: | 0817882025812 |
| Manufacturer Part Number: | LAP-GPS |
| Product Category: | 5 GHz Sector Access Point |
| Dimensions (without mount): | 360.98 x 124.57 x 71.28 mm |
| Weight (without mount): | 752 g |
| Housing Material: | UV-stabilized plastic |
| Mounting: | Pole Mounting Kit (included) |
| Bracket: | Ball Joint Mount |
| Processor: | Atheros MIPS 74Kc |
| Processor Clock Speed: | 533 MHz |
| RAM: | 64 MB DDR2 SDRAM |

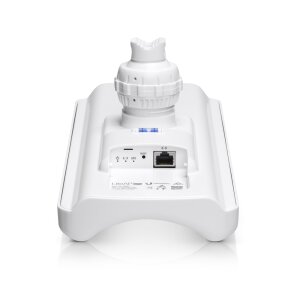

| Network Interface: | (1) 10/100/1000 Gigabit Ethernet Port |
| Max. Data Throughput (TCP/IP): | 450+ Mbps |
| Client Capacity (Fixed Frame): | up to 60 CPEs |
| Client Capacity (Flexible Frame): | up to 85 CPEs |
| Power Supply Method: | Passive Power over Ethernet (PoE) |
| PoE Adapter (included): | 24V, 0.3A Gigabit PoE Adapter |
| Supported Voltage Range: | 20-26V DC |
| Maximum Power Consumption: | 7.1 W |
| PoE Pinout (Pins): | 4, 5 (+) and 7, 8 (-) |
| Main Radio Frequency Range: | 5150 - 5875 MHz (country dependent) |
| WiFi Standard: | airMAX ac (proprietary) |
| MIMO Configuration: | 2x2 MIMO |
| Antenna Type: | Integrated Sector Antenna |
| Antenna Gain: | 17 dBi |
| Beamwidth (Horizontal): | 90° |
| Maximum Transmit Power (TX Power): | 25 dBm |
| Range: | Over 12 km possible |
| Management Radio Frequency: | 2.4 GHz (2412 - 2462 MHz) |
| Special Feature: | Integrated GPS synchronization (airMAX GPS Sync) |
| LED Indicators: | Power, Ethernet, GPS Signal Strength |
| Operating Temperature: | -40 °C to 70 °C |
| Operating Humidity: | 5 to 95% non-condensing |
| Wind Resistance: | Up to 200 km/h |
| Wind Loading: | 77 N @ 200 km/h |
| ESD/EMP Protection: | ± 24kV (Contact / Air) |
| Certifications: | CE, FCC, IC |
| Operating System: | airOS 8 |
| Operating Modes: | Access Point PtMP airMAX Mixed, Point-to-Point (PtP) |
| Supported Channel Widths (PtMP): | 10/20/30/40 MHz |
| Supported Channel Widths (PtP): | 10/20/30/40/50/60/80 MHz |
| Security: | WPA2-AES |
| Management: | Web Interface, UNMS/UISP, Mobile App |
Scope of Delivery
| 1 x Ubiquiti LiteAP GPS (LAP-GPS) |
| 1 x Ball Joint Mount |
| 1 x Metal Strap for Pole Mounting |
| 1 x Gigabit PoE Adapter (24V, 0.3A) |
| 1 x Power Cord |
Frequently Asked Questions (FAQ)
What is the main advantage of the 'GPS' function in the Ubiquiti LiteAP GPS?
The GPS function serves the 'GPS Sync' technology. When multiple LiteAP GPS units are mounted at one location, the GPS signal precisely synchronizes their transmit and receive cycles. This prevents the Access Points from interfering with each other (self-interference), which enables higher Network stability, better frequency reuse, and ultimately higher overall performance of the Ubiquiti Networks.
Can I use the LiteAP GPS directly as a WiFi hotspot with my laptop or smartphone?
No. The main 5 GHz Components radio of the LiteAP GPS uses the proprietary airMAX ac Components protocol and is only compatible with compatible Ubiquiti Networks client devices (such as LiteBeam, NanoStation, PowerBeam). It cannot connect to standard WiFi Routers or WiFi Access Points. However, there is a separate 2.4 GHz Components WiFi that is exclusively for configuring the device with a mobile device.
How many clients can the LiteAP GPS serve simultaneously?
Theoretically, the device can support over 50 clients. With GPS Sync activated (Fixed Framing Mode), the number is limited to 60 clients (CPEs) due to memory constraints. Without GPS Sync (Flexible Framing Mode), the limit is 85 clients, ensuring robust Network performance.
Do the client devices (CPEs) also need GPS to benefit from GPS synchronization?
No, the client devices themselves do not require a GPS function. They automatically benefit from the stable and low-interference Network environment created by the GPS-synchronized Access Points. Only the Access Points at the transmission site need to be equipped with GPS.
What is included with the LiteAP GPS?
The scope of delivery includes the LiteAP GPS Access Point, a ball joint mount, a metal strap for pole mounting, a Gigabit PoE Injectors / Power Supplies (24V, 0.3A) with mounting bracket, and a power cable. These Mounting Systems ensure easy installation.
Is the LiteAP GPS suitable for Point-to-Point (PtP) connections?
Although the LiteAP GPS supports a PtP mode, due to its 90-degree 5 GHz Sector Antennas, it is primarily designed for Point-to-MultiPoint (PtMP) scenarios where multiple clients are served. For a dedicated PtP connection, devices with a more directional Antennas (e.g., NanoBeam, PowerBeam) from Ubiquiti Networks, often using airMAX ac Components, are generally more efficient.
