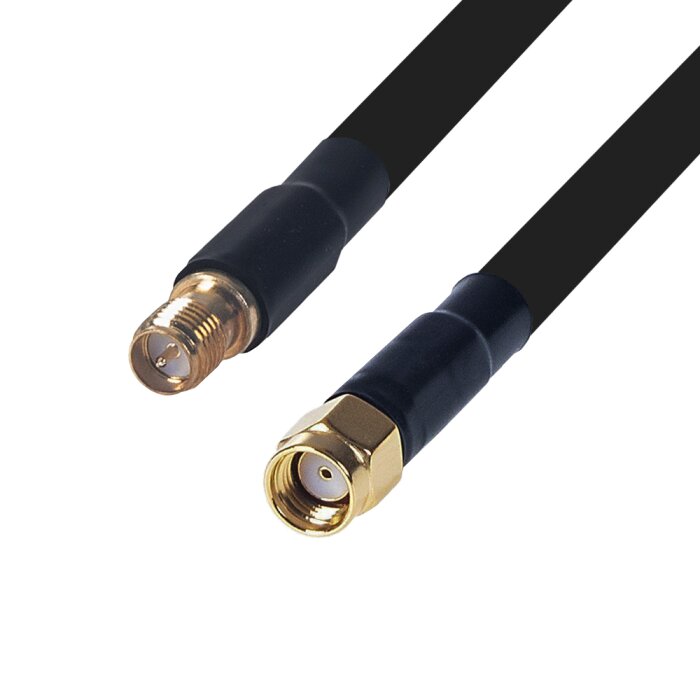

This antenna cable of type RF-240 is a low attenuation and high quality coaxial antenna cable and is supplied with the plug combination RP-SMA male to RP-SMA female in the chosen length. The cable is UV and water resistant and can be used for outdoors applications. Due to the low attenuation (double shielding) and the high bending radius, the cable is very well suited for WiFi, LoRa, GSM , 2G, 2G, 4G and 5G frequency bands and applications up to 6GHz where a flexible cable is required. This connector constellation is particularly suitable for use as an extension cable.
The RF-240 coax cable has a rigid inner copper conductor and is double shlieded. The PE coating is UV resistand and weatherproof which allows to use the RF240 coax cable for outdoor installations.
The cable will be delivered with RP-SMA male to RP-SMA female connectors in chosen length (1m, 3m, 5m, 10m).
Technical Data:
| Cabletype: | RF-240 Coaxial Cable |
| Impedance: | 50 Ohm |
| Loss: | 0,24dB/m @ 900 MHz 0,35dB/m @ 1800 MHz 0,41db/m @ 2400 MHz 0,66db/m @ 5800 MHz |
| Capacity: | 80pf/m |
| Inner conductor: | 1,42mm Copper |
| Insulation: | 3.81mm PE |
| Jacket: | PE |
| Outer diameter: | 6,1 mm |
| Bending radius: | 50mm |
| Color: | Black |
| Connectors: | RP-SMA male to RP-SMA female |
Scope of delivery
| RF-240 Coaxial Antenna cable in chosen lenght with RP-SMA male to RP-SMA female connector |
