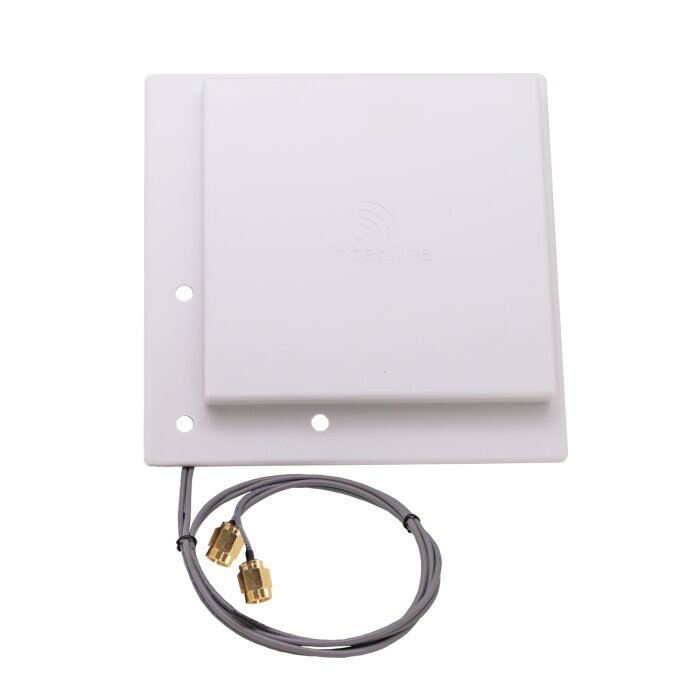

Interline PANEL 8 DUAL-BAND 2x2 MIMO - WiFi Panel Antenna, 802.11ac, 8dBi, RP-SMA
Interline PANEL 8 DUAL-BAND 2x2 MIMO (IP-G0812-F2457-M2) with 90cm cable and RP-SMA connector: This extremely powerful 2x2 MU-MIMO WiFi directional antenna boasts a gain of 8-12dBi. The directional antenna supports not only 802.11a/b/g/n standards but also with 802.11ac standard.

The antenna, constructed from robust ABS plastic, is suitable for outdoor use and industrial environments. Its rear plate is powder-coated and hardened at high temperatures, ensuring durability. The IP-G0812-F2457-M2 is highly durable and finely tuned, delivering excellent performance.

The 2x2 MIMO WiFi directional antenna comes with two antenna cables, each 90cm long and fitted with an RP-SMA female connector. Complementary antenna cables can be found in the accessories section. A pipe clamp for mast mounting is included in the package.

109,99 €
incl. 19% VAT , plus shipping costs
Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Technical Specifications:

Manufacturer:Interline
Model:IP-G0812-F2457-M2
Antenna Type:Directional Antenna
Frequency Range:2.4 GHz
(IEEE802.11 b/g/n)

5 GHz
(IEEE802.11a/n/ac)
Gain:2.4GHz: 18dBi
5GHz: 12dBi
Impedance:50 Ohms
VSWR:max. 2
Polarization:Horizontal / Vertical (Dual-Polarization)
Beamwidth:40° Horizontal @ 2.4GHz
36° Horizontal @ 5 GHz
40° Vertical @ 2.4GHz
25° Vertical @ 5 GHz
Front-to-Back Ratio:min. 25dB
XPD (Cross Polarization Discrimination):min. 18dB
Cable / Connector:0.9m RG174, RP-SMA female connector
Application:Indoor and Outdoor
IP Class:IP64
Max Wind Load:50N (@170km/h)

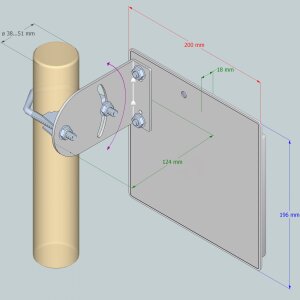

Dimensions:22.5cm x 22.5cm x 3.2cm
Weight:900g incl. Mounting Accessories
Color:White / Gray


Delivery Contents:

1 x Interline IP-G0812-F2457-M2 Antenna
1 x Mounting Bracket incl. Pipe Clamp


Manufacturer information: Name: Interline Antennas
Homepage: https://interline.pl/
Responsible person: Name: DAJB Hamburg GmbH
Street name: Von-Bargen-Straße 34
Postal code, City: 22041 , Hamburg
Country: Deutschland
E-Mail: hallo@dajb-hamburg.de
