This antenna cable of type RF-240 is a low attenuation and high quality coaxial antenna cable and is supplied with the plug combination N male plug to RP-SMA male plug in the desired length. The cable is UV and water resistant and can be used for outdoors applications. The antenna cable is assembled individually for you in our company. Due to the low attenuation (double shielding) and the high bending radius, the cable is very well suited for WiFi, LoRa, GSM , 2G, 2G, 4G and 5G frequency bands and applications up to 6GHz where a flexible cable is required.
The RF-240 coax cable has a rigid inner copper conductor and is double shlieded. The PE coating is UV resistand and weatherproof which allows to use the RF240 coax cable for outdoor installations.

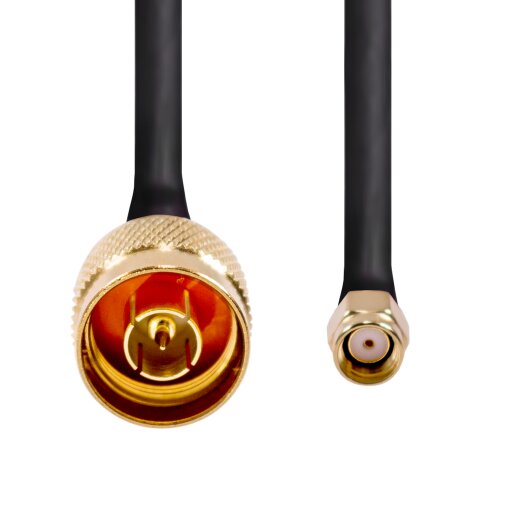

The cable will be delivered with N male to RP-SMA male connectors. You can order this cable with a lenght of 1m, 3m, 5m or 10m.
|RF-240 Coaxial Cable
|0,24dB/m @ 900 MHz
0,35dB/m @ 1800 MHz
0,41db/m @ 2400 MHz
0,66db/m @ 5800 MHz
|N male to RP-SMA male
Scope of delivery
|RF-240 Coaxial Antenna cable in chosen lenght with N male to RP-SMA male connector
