WiFi Window Feedthrough / Window Cable - 40cm, RP-SMA female to RP-SMA male

Magnetfuss für WLAN Antenne mit 1 x RP-SMA Stecker /...

Koaxial Fensterkabel - 40cm, RP-SMA Stecker auf RP-SMA Buchse

WiFi Window Feedthrough / Window Cable - 40cm, RP-SMA female to RP-SMA male

SKU: ART6050
GTIN: 4251028600499
HAN: J2400-CCF-RPSMA
Category: WiFi Antenna Cables
Reviews:
(10)
Manufacturer: JARFT

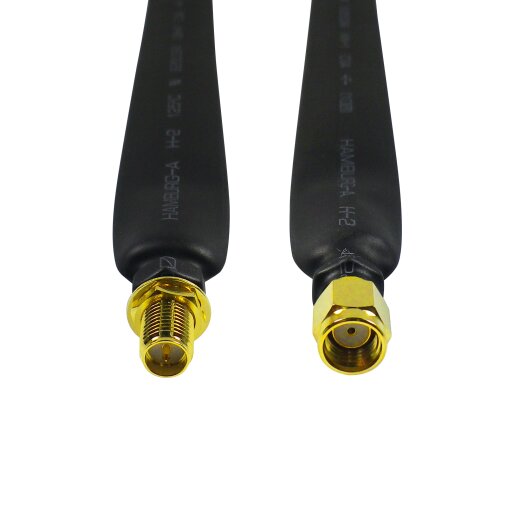

This ultra-thin window cable/window feedthrough is 40 cm long and equipped with an RP-SMA male plug and an RP-SMA female socket. This makes the cable ideal for routing the antenna cable of a WiFi antenna through a window. Simply place the flat cable in the frame with the window open and then carefully close the window.

From	Unit price
2	6,49 € *
4	5,99 € *
10	5,49 € *

8,99 €

incl. 19% VAT , plus

Available immediately

Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

This very flat and flexible coaxial window cable has RP SMA male plug to RP SMA female socket . It is ideal and suitable for WiFi or LoRa antenna installations.

There is no need to drill through walls to install antenna cables anymore. Just place the flat cable in the frame of the open window and close the window gently.

Technical Data:

Manufacturer:	JARFT
Model:	J2400-CCF-RPSMA
Type of Cable:	Micro Coaxial Cable 1.13
Impedance:	50 Ohm
Loss:	~0.8dB @ 1GHz ~1.16dB @ 2GHz 1.44dB @ 3GHz 1.68dB @ 4GHz 1.88dB @ 5GHz 2.08dB @ 6GHz
Lenght:	40cm
Width:	1,0 cm
Hight:	1,5 mm
Color:	Black
Connectors:	RP-SMA female to RP-SMA male

Scope Of Delivery:

1 x 40cm Coaxial Window Cable with RP-SMA female to RP-SMA male connector

Manufacturer information: Name: JARFT
Homepage: https://www.jarft.eu/

Responsible person: Name: DAJB Hamburg GmbH
Street name: Von-Bargen-Straße 34
Postal code, City: 22041 , Hamburg
Country: Deutschland
E-Mail: hallo@dajb-hamburg.de

4.5/5
(10)

A great solution for helium miners.

If the miner needs to stay indoors and the antenna outside, this cable is a great solution (without drilling into the walls).

Works perfectly.

The delivery was also excellent.
Naim E. | 20.09.2021

Ultra-flat window penetration

Everything is OK – I just find the damping a bit too high, which is why I'm only giving it 4 stars. I would still buy it again, though.
Florian H. | 22.02.2022

Works great

Thanks to this window feedthrough, we were able to avoid drilling. Works perfectly.
Patrick M. | 22.03.2022

functional

The through-window coaxial cable / window cable | 40 cm, RP-SMA male to RP-SMA female is a good solution for bringing the Wi-Fi cable from the outdoor antenna into the interior without drilling holes in the wall. There are no issues with the window frame, but you must ensure that you close the window securely. Functional
Francesco S. | 18.11.2023

Perfect solution

Exactly what I was looking for and needed, thinner than expected, which protects the window seal. Perfect solution for me.
Dirk K. | 09.11.2024

Eine Super Lösung für Helium Miner.

Wenn der Miner drinnen bleiben muss und die Antenne draußen, ist das Kabel eine gute Lösung dafür(ohne die die Wände zu bohren).
Funktioniert 100%.

Die Lieferung ist auch 1A.
Naim E. | 20.09.2021

Superflache Fensterdurchführung

Alles OK - nur finde ich die Dämpfung etwas hoch und deswegen vergebe ich nur 4 Sterne. Würde es aber dennoch wieder kaufen.
Florian H. | 22.02.2022

Funktioniert super

Dank dieser Fensterdurchführung konnten wir uns das Bohren sparen. Funktioniert ohne Probleme.
Patrick M. | 22.03.2022

funktional

Das Durch-Fenster-Koaxialkabel / Fensterkabel | 40 cm, RP-SMA-Stecker auf RP-SMA-Buchse ist eine gute Lösung, um das Wi-Fi-Kabel von der Außenantenne in den Innenraum zu bringen, ohne Löcher in die Wand zu bohren. Es gibt keine Probleme mit dem Fensterrahmen, aber Sie müssen darauf achten, dass Sie das Fenster sorgfältig schließen. funktional
Francesco S. | 18.11.2023

Perfekte Lösung
