This WiFi sector antenna is manufactured by Cyberbajt and is designed for the 2.4 GHz frequency band. It supports all established 2.4 GHz WiFi standards (IEEE 802.11 b/g/n).
Sector antennas are characteristically constructed for serving the WiFi signal to many clients within one sector (for examle 120° area). It will be typically used on base stations (Access Point, Hot-Spot Systems).
This antenna has a gain of 15dBi and a horizotal beamwidth of 180°.
The enclosure of the WiFi sector antenna is made of solid plastic and stainless steel. The robust, light weight and UV resistant construction is weatherproof. Due to this, the antenna can be used for in- and outdoor appliances.

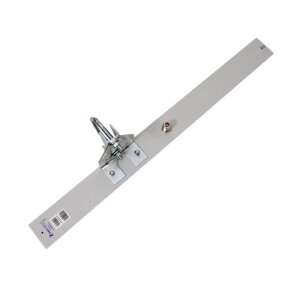

The sector antenna is designed for mast/pole or wall handle installation (see mounting hardware). A mounting kit (angle bracket and u-clamp for 30-50mm diameter handles) is included.
The antenna has a N female connector. Suitable connection cables are also available at our webshop.
Technical Data:
| Manufacturer: |
Cyberbajt |
| Model: |
V-LINE 15 |
| Type of Antenna: |
Sector Antenna |
| Gain: |
15dBi |
| Impedance: |
50 Ohm |
| Frequency: |
2400 - 2485 MHz
(IEEE 802.11 b/g/n) |
| VSWR: |
max. 1.4 |
| Polarisation: |
Horizontal or Vertical (Linear) |
| Beam width: |
180° Horizontal
16° Vertical |
| Connector: |
N female |
| Appliance: |
In- and Outdoor |
| Max input power: |
50W |
| Operating Temperature: |
-30° to 75° C |
| Dimensions: |
61.5cm x 5.5cm x 3.3cm |
| Weight: |
400g |
| Color: |
White |
Scope of delivery
| 1 x Cyberbajt 2.4 GHz 15dBi WiFi Sector Antenna |
| 1 x Mounting kit with angle bracket and u-clamp for 30-50mm handles |
