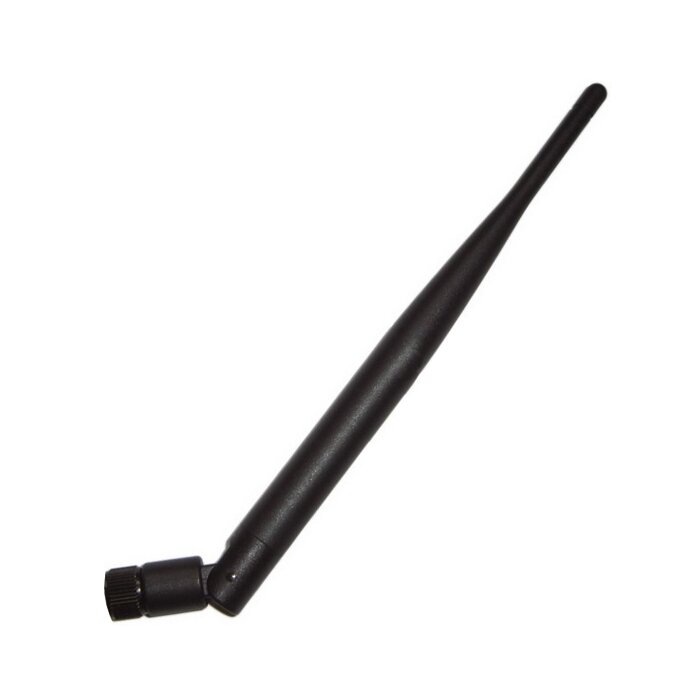

Your Turbo for the 5 GHz Network: More Range, More Stability
You know the feeling: your WiFi is fast, but the connection constantly drops in the furthest corner of your home? This 5 GHz WiFi Antenna is the solution. With a 5dBi gain, you'll replace your weak standard Antenna and ensure a stronger, more stable signal. The result: better coverage, fewer connection drops, and a more consistent data rate – perfect for demanding applications like 4K streaming or online gaming.
Perfect Alignment Thanks to Flexible Swivel Joint
Every room is different. That's why this Antenna is equipped with a practical swivel joint. For optimal coverage on your floor, simply point it vertically upwards. Do you want to specifically supply the floor above or below you? Then simply angle the Antenna by 90 degrees. This flexibility helps you optimally utilize vertical polarization and direct the signal exactly where you need it.
Plug & Play Upgrade: Compatible with Fritz!Box & Co.
No complicated installation, no technical expertise needed. Thanks to the widely used RP-SMA connector, this Antenna is a true plug-and-play upgrade. It fits most WiFi Routers and WiFi USB Adapters from top manufacturers like AVM (e.g., Fritz!Box 7590, 7490), TP-Link, ASUS, and many more. Unscrew the old Antenna, replace it with the new 5dBi RP-SMA Router Antenna, and you're done. Optimizing your Network can be that simple.
Specialist Instead of All-Rounder: Why a Pure 5 GHz Antenna is Often the Better Choice
While Dual-Band / WiFi 6E / WiFi 7 Antennas always have to compromise for two frequency bands, this model is a true specialist. It is 100% designed for the 5 GHz band. This leads to better signal matching (VSWR < 1.7) and higher efficiency in this frequency range. So, if you primarily use the faster and less congested 5 GHz Network, this Antenna is the technically superior choice to get maximum performance.
Strengths & Notes at a Glance
- Pro: Targeted 5 GHz optimization for best performance in this band.
- Pro: Flexible swivel joint for precise signal alignment.
- Pro: High compatibility due to standard RP-SMA connector.
- Pro: Noticeable 5dBi gain for more range and stability.
- Note: Pure single-band Antenna, not suitable for 2.4 GHz Components.
- Note: Designed exclusively for indoor use.
Specifications & Features
| Manufacturer Article Number (HAN/MPN): | DA-5158-02 |
| EAN / GTIN: | 4251028602493 |
| Shop SKU: | ART5614 |
| Product Type: | WiFi Omni-Directional Antenna (Accessory) |
| Frequency Range: | 5 GHz Band |
| Supported WiFi Standards: | IEEE 802.11a, 802.11n, 802.11ac |
| Gain: | 5 dBi |
| Antenna Type: | Dipole Antenna |
| Radiation: | Omni-directional (360° horizontal) |
| Polarization: | Vertical |
| Impedance: | 50 Ohm |
| Standing Wave Ratio (VSWR): | < 1.7 |
| Connector: | RP-SMA Connector (Reverse Polarity SMA) |
| Connector Details: | Internal thread with central pin-hole (female) |
| Special Feature: | Swivel joint (hinge joint) |
| Application Area: | Indoor |
| Color: | Black |
| Material (Housing): | Plastic |
| Length (estimated): | approx. 15 - 20 cm |
| Diameter (estimated): | approx. 1 - 1.5 cm |
| Weight (estimated): | approx. 20 - 30 g |
| RoHS Compliance: | Yes |
Scope of Delivery
| 1 x 5 GHz WiFi Omni-Directional Antenna DA-5158-02 |
Frequently Asked Questions (FAQ)
My router has multiple Antennas. Do I really need to replace all of them, or is just one enough?
Yes, absolutely! To harness the full power of your router's MIMO technology, you should always replace all Antennas with identical models like this one. If you only replace one, you'll disrupt the signal balance and could even worsen your WiFi performance. Give your WiFi Router the complete upgrade!
What exactly does 'RP-SMA' mean, and will this antenna fit my Fritz!Box?
RP-SMA stands for 'Reverse Polarity SMA' and is a common screw-on connector for Routers. The good news: Many Fritz!Box models with detachable Antennas (e.g., 7590, 7490) use exactly this connector. So you can simply unscrew your old antenna and screw this one directly on – Plug & Play!
Does the antenna only provide more range or also more speed?
Both, in a way! Primarily, the higher gain ensures a stronger and more stable signal, which noticeably improves your range. A more stable signal also means fewer data errors. This reduces how often your device has to throttle its speed, indirectly leading to a consistently higher transmission rate.
How do I use the swivel joint to optimally align the antenna?
It's simple! For the best coverage on a single level, for example, in your apartment, simply position the antenna vertically upwards. If you want to direct the signal specifically to the floor above or below you, bend it 90 degrees. It's best to try both positions briefly and see where you get the strongest signal.
Is this specific 5 GHz Antenna better than a Dual-Band Antenna?
If you're a 5 GHz power user: Absolutely! This antenna is a specialist, optimized for the 5 GHz band. This often makes it more efficient in this frequency range than a Dual-Band / WiFi 6E / WiFi 7 Antenna, which is always a compromise. Important: If you also have devices that only use the 2.4 GHz Network, this antenna is not the right one for you.
My reception is still not perfect. What else can I do?
This antenna is a great upgrade for your device. However, if thick walls are in the way, here's a pro tip: Combine the antenna with an Antenna Cable and a magnetic base. This allows you to place it freely in the room – for example, high up on a shelf – and find the perfect spot for the best reception.
