No More Dead Zones: Optimal Antenna Positioning for your Network
Is your high-end WiFi Router or Gaming PC poorly placed in a cabinet or under your desk? This is the most common reason for poor WiFi reception. With this Antenna base, you free your Antennas from the dead zone. Simply guide the Antennas with the 1.5-meter Antenna Cable out of the signal-blocking area and place them in an optimal position, for example, directly on your desk or on the PC case. The result: significantly better signal strength, fewer connection drops, and more stable latency for your Network.
Strong Hold, Maximum Flexibility: The Magnetic Base in Detail
The base of this stand is a strong adhesive magnet. This allows you to securely attach the antenna base to any metallic surface without tools. Whether on the side panel of your PC tower, a metal shelf, or a table leg – positioning is effortless and extremely flexible. The underside is specially coated to protect sensitive surfaces from scratches. This way, you achieve optimal WiFi reception positioning without compromise, a key aspect of effective Mounting Systems.
For High-Speed Networks: Perfect for 3x3 MIMO Systems
This base is not just a simple extension, but a solution specifically developed for a 3x3 MIMO Antenna Base. Modern AC WiFi Routers and high-performance WiFi Cards utilize three parallel data streams (Multiple-Input, Multiple-Output) to achieve the highest speeds. This stand neatly bundles the three necessary Coaxial Cables and ensures that the performance of your high-end equipment truly reaches you. Consider this as an essential accessory for your Network setup.
Plug & Play: Installation in Under One Minute
Commissioning is incredibly simple and requires no technical knowledge. Simply unscrew the existing Antennas from your WiFi Router or PCIe card. Then, screw them onto the three RP-SMA female connectors of the magnetic base. Connect the three RP-SMA male connectors at the end of the cable to the now-available ports on your device. Done! Your WiFi is immediately ready for a new level of performance.
Strengths & Notes at a Glance
- Pro: Significant signal optimization through flexible positioning of the Antennas by up to 1.5 meters.
- Pro: Tool-free and secure mounting on metallic surfaces thanks to the strong magnetic base, enhancing your Mounting Systems.
- Pro: Ideal for powerful 3x3 MIMO systems of Gaming PCs and AC WiFi Routers.
- Pro: High compatibility due to universal RP-SMA standard and self-explanatory installation.
- Note: Every Antenna Cable causes a slight signal attenuation, which should be considered for very weak signals.
- Note: Magnetic attachment relies on metallic surfaces.
Specifications & Features
| Product Type: | Magnetic Antenna Base for WiFi Antennas |
| Manufacturer Article Number (MAN): | BS-11-174-1.5M-0126 |
| EAN: | 4251028604695 |
| MIMO Configuration: | 3x3 MIMO (Multiple-Input, Multiple-Output) |
| Connectors on Base (for Antennas): | 3 x RP-SMA Female |
| Connectors at Cable End (for Device): | 3 x RP-SMA Male |
| Connector Compatibility: | Universal for WiFi devices with RP-SMA connector |
| Number of Cables: | 3 (bundled into one strand) |
| Cable Length: | 1.5 Meters |
| Cable Type: | RG174 Coaxial Cable |
| Impedance: | 50 Ohm |
| Mounting Method: | Strong Adhesive Magnetic Base |
| Surface Protection: | Coated underside against scratches |
| Area of Use: | Exclusively for Indoors (Indoor) |
| Suitable Devices: | High-Performance WiFi Routers (e.g., Wi-Fi 5 AC1900), Gaming PCs, PCI-Express WiFi Cards |
Scope of Delivery

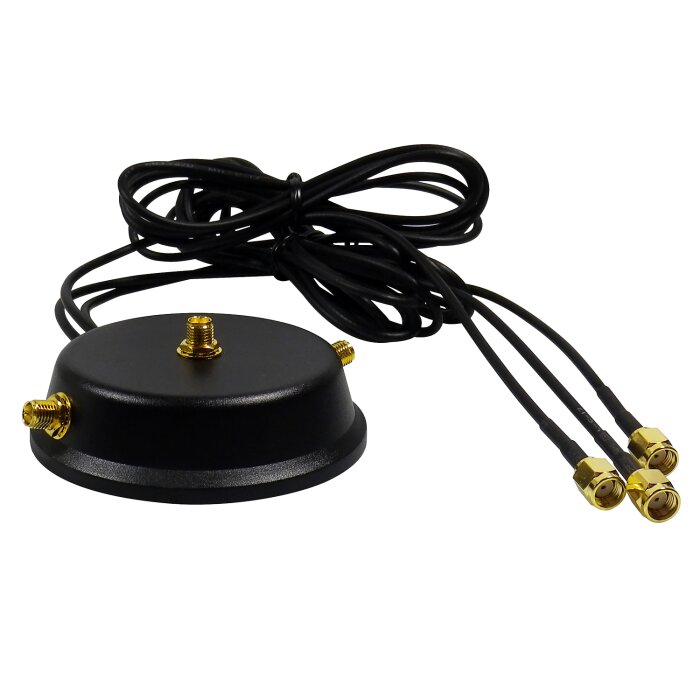

| 1 x 3x3 MIMO Magnetic Base for WiFi Antennas with 1.5m Cable (RP-SMA) |
Frequently Asked Questions (FAQ)
Does an external antenna base improve my internet speed?
Indirectly, yes. The antenna base does not increase the bandwidth provided by your provider, but it can improve the quality and stability of your WiFi connection. A more stable connection with fewer packet losses leads to higher effective data transfer rates and lower latency, which feels like 'faster internet'.
What does 3x3 MIMO mean?
3x3 MIMO stands for 'Multiple-Input, Multiple-Output' and means that the device (e.g., a Router) uses three Antennas for sending and receiving data. This enables the simultaneous transmission of up to three independent data streams, which significantly increases the overall data rate and the reliability of the Network.
Can I use this base for any WiFi Antenna?
Yes, as long as the Antenna has an RP-SMA (Male) connector. This is the most common connector type for retrofit WiFi Antennas of Routers, Access Points, and PCIe cards.
Does the magnet interfere with the WiFi signal?
No. A static magnetic field, as generated by this base, has no negative effects on the electromagnetic waves of the WiFi signal. However, the large metallic surface to which the magnet adheres can influence the radiation pattern of the Antennas.
Is the antenna base also suitable for outdoor use?
No, this specific model is explicitly designed only for indoor use. The materials are not designed for weather influences such as rain, humidity, or UV radiation.
Does such an antenna base also make sense with only one or two Antennas?
While this base is optimized for three Antennas, it would also work with one or two Antennas. However, for these use cases, there are special and usually cheaper 1x1 or 2x2 antenna bases that represent a more suitable solution.
