The Revolution for Your Network: Rack Power on the Wall
No more bulky 19-Inch Racks in small offices or home utility rooms. The Ubiquiti UniFi Dream Wall (UDW) is the elegant and extremely powerful answer to the need for a professional Network infrastructure in the smallest of spaces. It combines all the core components you need for a modern, secure, and fast Network in a single, aesthetic device that you simply mount on the wall. Save space without making a single compromise on performance. The UDW is the ideal solution for anyone looking for a UniFi Dream Wall for businesses without a server rack and who values a tidy, professional appearance, utilizing advanced Mounting Systems.
Connectivity Without Compromise: 10G SFP+ and PoE++

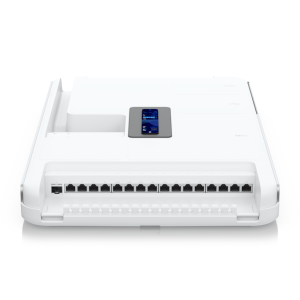

The UniFi Dream Wall is built for the present and the future. With a 10G SFP+ and a 2.5 GbE RJ45 port, both of which can be flexibly configured as WAN or LAN, you are ready for multi-gigabit internet connections and lightning-fast connections to your server or NAS. The integrated Ethernet Switch offers you a total of 17 Gigabit ports, 12 of which are PoE-capable. The highlight is the four 802.3bt PoE++ ports, each delivering up to 60 watts of power – enough to supply even the most demanding PTZ IP Cameras or multi-radio WiFi Access Points directly and without additional PoE Injectors / Power Supplies. The total PoE budget of 420W makes this wall-mountable router with 10G SFP+ and PoE++ a true power hub for your end devices.
Centralized Management Made Easy with UniFi OS
The heart of the Dream Wall is the integrated UniFi OS Console. It hosts the entire UniFi software suite and gives you full control over your network. Manage all your Ubiquiti devices via the intuitive UniFi Network app, set up a professional surveillance system with UniFi Protect, or integrate access control and VoIP telephony – all from a single, central interface. Setup is a breeze thanks to Bluetooth support and the mobile app. The 4.7-inch touchscreen display on the front also provides you with the most important status information at a glance.
Built for Performance and Reliability
Under the hood of the UDW is a quad-core ARM processor that, along with 4 GB of DDR4 RAM, ensures smooth performance, even with the Intrusion Detection/Prevention System (IDS/IPS) enabled at over 3.5 Gbps throughput. A fast 128 GB SSD is available for the operating system and app data, while video recordings are stored on a replaceable microSD card. A special feature for maximum reliability is the second, hot-swappable Power Supply slot. By purchasing a second 550W Power Supply, you can set up a redundant Power Supply and secure your Ubiquiti UDW complete system for smart home network or your corporate network against power outages.
Strengths & Notes at a Glance
- Pro: Extreme integration of gateway, switch, Wi-Fi 6 AP, and NVR saves an enormous amount of space and eliminates the need for 19-Inch Racks.
- Pro: Comprehensive connectivity with 10G SFP+, 2.5 GbE, and 17 Gigabit ports for the highest speed requirements.
- Pro: Very powerful PoE with 802.3bt PoE++ (60W per port) for operating high-power devices.
- Pro: Central and intuitive management of the entire infrastructure via the proven UniFi OS.
- Note: The device can get very warm under load; good ventilation at the installation site is crucial.
- Note: The NVR storage for video recordings is limited to a microSD card, which can be a limitation for intensive surveillance scenarios.
Specifications & Features
| Manufacturer: | Ubiquiti, Inc. |
| Model: | UniFi Dream Wall (UDW) |
| EAN / GTIN: | 0810010079572 |
| Manufacturer Part Number (MPN): | UDW |
| Product Classification: | All-in-One UniFi OS Console |
| Processor (CPU): | Quad-Core ARM® Cortex®-A57 @ 1.7 GHz |
| System Memory (RAM): | 4 GB DDR4 |
| On-Board Flash Storage: | 16 GB eMMC |
| Integrated SSD Storage: | 128 GB SSD (for UniFi OS & Apps) |
| Expansion Storage: | Pre-installed 512 GB microSD card |
| microSD Card Slot: | Yes (requires cards with min. 128 GB) |
| IDS/IPS Throughput: | 3.5 Gbps |
| Management Interface: | Ethernet, Bluetooth, Wi-Fi |
| Display: | 4.7-inch touchscreen |
| WAN Ports: | 1x 10G SFP+, 1x 2.5 GbE RJ45 |
| LAN Ports: | 1x 10G SFP+, 17x GbE RJ45 |
| PoE++ Ports (802.3bt): | 4x GbE RJ45 |
| PoE+ Ports (802.3at): | 4x GbE RJ45 |
| PoE Ports (802.3af): | 4x GbE RJ45 |
| Standard LAN Ports (without PoE): | 5x GbE RJ45 |
| Total PoE Budget: | 420W |
| Max. PoE++ Power (per port): | 60W |
| Max. PoE+ Power (per port): | 30W |
| Max. PoE Power (per port): | 15.4W |
| Integrated Wi-Fi Standard: | 802.11ax (Wi-Fi 6) |
| Wi-Fi Frequency Bands: | 2.4 GHz / 5 GHz |
| Wi-Fi MIMO (5 GHz): | 4x4 MU-MIMO |
| Wi-Fi MIMO (2.4 GHz): | 2x2 MIMO |
| Max. Wi-Fi Data Rate (5 GHz): | 2.4 Gbps |
| Max. Wi-Fi Data Rate (2.4 GHz): | 300 Mbps |
| WLAN Security: | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| WLAN Range: | approx. 140 m² |
| WLAN Client Capacity: | 300+ |
| Power Supply: | (2) Hot-swappable 550W PSU slots |
| Included Power Supplies: | 1x 550W Power Supply (pre-installed) |
| Max. Power Consumption: | 532W (incl. PoE output) |
| Dimensions (W x H x D): | 549 x 342 x 62 mm |
| Weight: | 8.6 kg |
| Enclosure Materials: | Polycarbonate, galvanized steel, aluminum alloy |
| Operating Temperature: | -10 to 40° C |
| Operating Humidity: | 5 to 95% non-condensing |
Package Contents
| 1 x Ubiquiti UniFi Dream Wall (UDW) |
| 1 x Wall Mount Bracket |
| 1 x Screw Kit |
| 1 x Power Cord |
Frequently Asked Questions (FAQ)
Can the Ubiquiti Dream Wall run a complete network for a small business?
Yes, absolutely. With its 3.5+ Gbps router, integrated switch with 12 PoE ports, Wi-Fi 6 Access Point, and the ability to host the entire UniFi software suite, it is designed as an all-in-one solution that can fully meet the needs of many small to medium-sized businesses.
Do I need a separate power supply for my PoE cameras when using the Dream Wall?
No, not in most cases. The Dream Wall has a total PoE budget of 420 watts and supports PoE (15W), PoE+ (30W), and PoE++ (60W) standards. As long as the total consumption of your devices does not exceed the budget, you can power them directly via the Dream Wall's Ethernet ports.
Is the installation of the UniFi Dream Wall complicated?
The physical installation requires a sturdy wall due to its weight of 8.6 kg. However, the software setup is very simple thanks to the UniFi ecosystem and Bluetooth functionality, and is usually completed in a few minutes via the UniFi Network Mobile App.
Can I use the Dream Wall's WAN ports flexibly?
Yes, the UniFi OS software offers flexibility. Both the 2.5 GbE RJ45 port and the 10G SFP+ port can be configured as WAN ports for dual-WAN scenarios such as failover or load balancing.
How loud is the UniFi Dream Wall during operation?
At idle and under light load, the device is whisper-quiet. The fan speed adjusts to the system temperature, so the noise level can increase with high PoE usage and heavy network traffic.
Does the Dream Wall support redundant power supply?
Yes, the chassis has two bays for hot-swappable 550W power supplies. One power supply is included, and a second can be purchased separately for a redundant power supply (RPS) to increase reliability.
