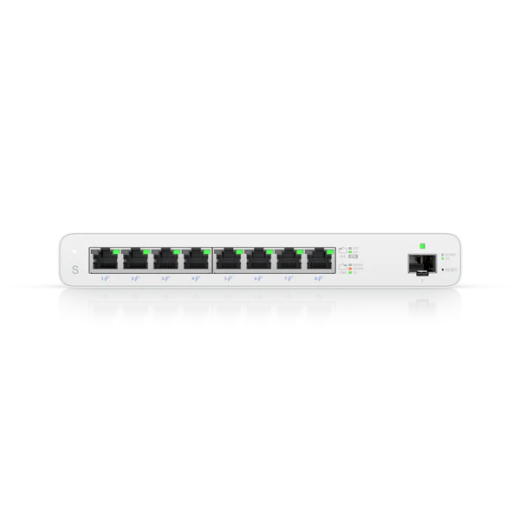

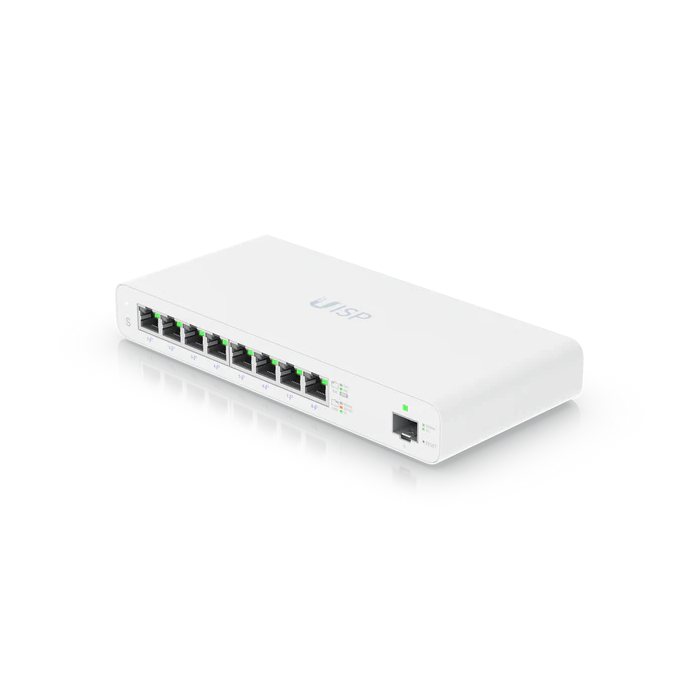

Ubiquiti UISP-S: The Switch for Pro Wireless Networks
While UniFi switches are made for offices, the UISP-S is the workhorse for Internet Providers and Point-to-Point installations. It solves the "PoE injector chaos" problem. Instead of having 8 individual power supplies for your antennas in the control cabinet, you connect everything directly to this switch.
Attention: Passive PoE Specialist
This switch is specifically designed for the Ubiquiti airMAX, LTU, and airFiber series. * It delivers 27V Passive PoE on all 8 ports. * It supports both 2-pair and 4-pair modes. * Note: It is NOT intended for standard 48V (802.3af/at) devices like UniFi APs or IP phones, unless you use special converters.
Management via UISP
The switch integrates seamlessly into the UISP Platform (formerly UNMS). This means for you: * Monitoring of the entire network from anywhere. * Detailed insight into power consumption per port. * Automatic topology detection of your radio links. * Firmware updates with one click.
Technical Data
| Manufacturer / Model: | Ubiquiti / UISP-S |
| Type: | Layer 2 PoE Switch (Managed via UISP) |
| Interfaces: | 8x 10/100/1000 MbE RJ45 1x 1G SFP |
| PoE Method: | 27V Passive PoE (2-pair pins 4, 5+/7, 8- or 4-pair) |
| PoE Budget (Total): | 110 Watts |
| Max. PoE per Port: | 30W (@ 27V 4-pair) / 15W (@ 27V 2-pair) |
| Switching Capacity: | 18 Gbit/s |
| Power Supply: | External 27V/4.4A Adapter (included) |
| Cooling: | Fanless Thermal Cooling |
| Dimensions: | 210.4 x 95 x 29 mm |
| Weight: | 610 g |
Scope of Delivery
| 1 x Ubiquiti UISP Switch |
| 1 x Power Adapter (27V, 4.4A) |
| 1 x Wall Mount Kit |
