The Challenge: Reliable Connectivity Over Distance
In today's interconnected world, a stable and fast internet connection is essential. However, we often face the challenge of reliably integrating remote buildings, outdoor areas, or secluded locations into our network. Traditional Wi-Fi solutions quickly reach their limits here, especially in urban areas where the 2.4 GHz band is overloaded by countless devices. The result is slow speeds, high latencies, and frustrating connection drops that severely impact your productivity and digital experience.
The Solution: Ubiquiti NanoStation Loco M5 – Your Bridge to the Digital Age
The Ubiquiti NanoStation Loco M5 is your answer to these challenges. As a compact yet extremely powerful outdoor CPE, it was specifically designed to build a reliable and high-performance wireless bridge for you. It utilizes the less congested 5 GHz frequency band and advanced airMAX TDMA technology to minimize interference and ensure impressive stability. Whether you want to connect two buildings, integrate a surveillance system, or provide internet access for a remote area – the Loco M5 makes it possible.
Technology That Inspires: Details of the NanoStation Loco M5
At the heart of the NanoStation Loco M5 beats an Atheros MIPS 24KC processor at 400 MHz, supported by 32 MB SDRAM and 8 MB Flash memory, ensuring smooth performance. The integrated 13 dBi dual-linear antenna offers a horizontal and vertical beamwidth of 45 degrees, enabling precise alignment and maximum signal strength. With a maximum transmit power of 23 dBm and a sensitivity of up to -96 dBm (MCS0), it is optimized for demanding long-range connections. Installation is incredibly simple thanks to the included PoE injector (24V, 0.5A) and the pole-mounting kit. The UV-stabilized plastic casing reliably protects the device from extreme weather conditions and temperature fluctuations from -30°C to +75°C.
Your Advantage: Efficiency and Scalability for Your Network
With the Ubiquiti NanoStation Loco M5, you invest in a future-proof network solution that not only brings immediate performance enhancements but also remains flexible in the long term. Its ability to be used in both point-to-point and point-to-multipoint scenarios makes it extremely versatile. Integration into the Ubiquiti airMAX ecosystem allows for easy management and scaling of your infrastructure. Experience how simple it can be to overcome even complex network challenges with a cost-effective and high-performance solution that elevates you and your network to the next level.
Technical Specifications
| Manufacturer: | Ubiquiti Networks |
| Model: | NanoStation Loco M5 |
| MPN: | LOCOM5 |
| EAN: | 0810354022340 |
| Device Type: | Wireless Bridge / Outdoor CPE |
| Frequency Band: | 5 GHz (5170 - 5875 MHz) |
| WLAN Standards: | 802.11a/n |
| Antenna Gain: | 13 dBi |
| Antenna Type: | Integrated Dual-Linear Directional Antenna, 2x2 MIMO |
| Max. Throughput: | 150+ Mbps (real outdoor TCP/IP) |
| Processor: | Atheros MIPS 24KC, 400 MHz |
| RAM: | 32 MB SDRAM |
| Flash Memory: | 8 MB |

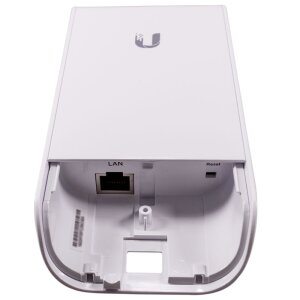

| Network Interface: | 1 x 10/100 BASE-TX Ethernet Port (RJ-45) |
| Max. Transmit Power: | 23 dBm |
| Power Supply: | Passive Power over Ethernet (PoE), 24V, 0.5A (PoE adapter incl.) |
| Max. Power Consumption: | 5.5 W |
| Casing Material: | Outdoor UV-stabilized Plastic |
| Dimensions (WxDxH): | 163 x 31 x 80 mm (alternatively 161 x 31 x 80 mm) |
| Weight: | 0.180 kg |
| Operating Temperature: | -30°C to +75°C (alternatively -30°C to +80°C) |
| Humidity: | 5 - 95% non-condensing |
| Mounting: | Pole-Mounting Kit (included) |
| Certifications: | FCC, IC, CE, RoHS |

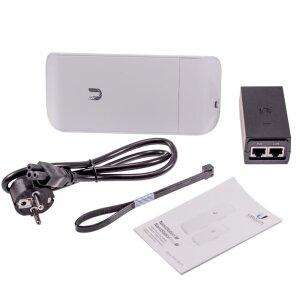

Package Contents
| 1 x Ubiquiti NanoStation Loco M5 |
| 1 x PoE Injector (24V, 0.5A) |
| 1 x Pole-Mounting Kit |
| 1 x Quick Start Guide |
Häufig gestellte Fragen (FAQ)
What applications is the Ubiquiti NanoStation Loco M5 best suited for?
The Ubiquiti NanoStation Loco M5 is ideal for establishing Point-to-Point (PtP) Wi-Fi bridges over medium to long distances (up to 10+ km with clear line of sight). It is also excellent as a CPE (Client) in Point-to-Multipoint networks, for example, for Wireless Internet Service Providers (WISPs) or for connecting remote buildings and surveillance systems.
What range can I achieve with the NanoStation Loco M5?
Under optimal conditions and with a clear Line of Sight, the NanoStation Loco M5 can establish connections over 10 kilometers and more. The integrated 13 dBi directional antenna ensures strong signal focusing, enabling these ranges.
Does the NanoStation Loco M5 support Power over Ethernet (PoE)?
Yes, the NanoStation Loco M5 is powered via passive Power over Ethernet (PoE). A suitable 24V, 0.5A PoE injector is already included in the scope of delivery, simplifying installation as only a single cable is needed for both data and power.
Is the NanoStation Loco M5 suitable for outdoor use?
Absolutely! The NanoStation Loco M5 features a UV-stabilized and weather-resistant plastic casing designed for continuous outdoor use. It can operate in extreme temperatures from -30°C to +75°C and is resistant to rain, wind, and sun exposure.
What advantages does the 5 GHz frequency band offer over 2.4 GHz?
The 5 GHz frequency band utilized by the NanoStation Loco M5 is generally significantly less congested than the 2.4 GHz band, especially in urban or densely populated areas. This leads to a more stable connection, higher data rates, and lower latency, as there is less interference from other Wi-Fi devices.
