The Problem: Network Complexity and Cable Clutter
Does this sound familiar? Your network is growing, with more and more devices requiring a stable connection and, crucially, power. Suddenly, you're faced with a jungle of power adapters and cables that not only look unsightly but also make troubleshooting difficult. Especially in small offices or home offices, space is often limited, and every extra power outlet is a luxury. Installing new IP cameras, Wi-Fi access points, or VoIP phones quickly becomes a complex and time-consuming task that tests your patience.

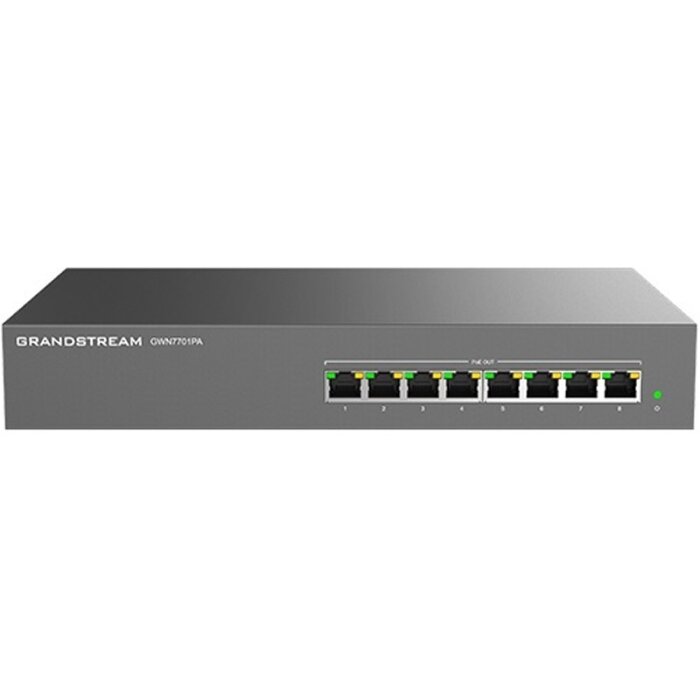

The Solution: Simplicity and Power with the Grandstream GWN7701PA
This is where the Grandstream GWN7701PA comes in, clearing up these issues! This unmanaged Gigabit Switch is your answer to a tidy and efficient network. With its 8 Gigabit Ethernet ports, all supporting the PoE+ standard (IEEE 802.3af/at), you can power compatible end devices directly via the network cable with up to 30 watts per port. This eliminates the need for additional power outlets and adapters, significantly reducing installation effort. Thanks to the generous 145-watt total PoE budget, you are well-equipped for future expansions.
Convincing Details: Performance and Flexibility
The Grandstream GWN7701PA offers an impressive 16 Gbps switching capacity and 9 KB Jumbo Frame support, guaranteeing smooth and fast data transfer. Features like Auto-Negotiation and Auto MDI/MDIX ensure that the switch automatically adapts to the speed and cable type of connected devices. The robust metal casing and flexible mounting options – whether on a desk, wall, or in a 19-inch rack – make it the ideal partner for any environment. Furthermore, intelligent features like 802.1p/DSCP QoS ensure data traffic prioritization, which is particularly beneficial for voice and video applications.
Your Advantage: Future-Proof Investment and Maximum Efficiency
With the Grandstream GWN7701PA, you invest in a future-proof network. The combination of Gigabit speed and PoE+ allows you to operate state-of-the-art devices and prepares your network for future demands. Its “Green Technology” reduces power consumption, saving not only the environment but also your wallet. This switch is the perfect choice for anyone who values performance, reliability, and a straightforward network solution that simply works and grows with your needs.
Technical Specifications
| Manufacturer: | Grandstream |
| Model: | GWN7701PA |
| Device Type: | Unmanaged Gigabit PoE+ Switch |
| Number of Ports: | 8 x 10/100/1000 Mbps RJ45 |
| PoE+ Ports: | 8 (IEEE 802.3af/at compliant) |
| PoE Power per Port: | Up to 30 Watts |
| Total PoE Budget: | 145 Watts |
| Switching Capacity: | 16 Gbps |
| MAC Address Table: | 8K Entries |
| Jumbo Frame: | 9 KB |
| Standards & Protocols: | IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3af, 802.3at |
| Advanced Features: | Auto-Negotiation, Auto MDI/MDIX, QoS (802.1p/DSCP), Flow Control (802.3x), Storm Control, IGMP Snooping |
| Casing: | Metal |
| Mounting: | Desktop, Wall Mount, Rack Mount (19 inch) |
| Dimensions (L x W x H): | 280 x 180 x 44 mm |
| Weight: | 1.5 kg |
| Power Supply: | Internal Power Adapter, 100-240V AC, 50/60Hz, 150W max. |
| Max. Power Consumption (without PoE): | 6.7 W @220V/50Hz |
| Operating Temperature: | 0°C to 40°C |
| Storage Temperature: | -20°C to 60°C |
| Humidity (Operating/Storage): | 10% to 90% non-condensing |
| Certifications: | FCC, CE, RCM, IC, UKCA |
Package Contents
| 1 x Grandstream GWN7701PA Gigabit PoE+ Switch |
| 1 x 1.2 m AC Power Cable |
| 2 x Rackmount Brackets |
| 4 x Rubber Feet |
| 2 x Mounting Ears (Lug Ear) |
| 1 x Quick Installation Guide (QIG) |
Häufig gestellte Fragen (FAQ)
What does 'unmanaged' mean for this switch?
An 'unmanaged' switch like the Grandstream GWN7701PA is a plug-and-play device that requires no configuration. You simply connect it, and it works immediately. This makes it ideal for small networks or users who don't need complex settings.
Can I connect non-PoE devices with the Grandstream GWN7701PA?
Yes, absolutely! The Gigabit ports of the GWN7701PA automatically detect whether a connected device requires PoE or not. You can easily connect PCs, printers, or other network devices without PoE functionality, and the switch will simply provide the data connection.
What kind of devices can I power using PoE+?
With the 8 PoE+ ports of the GWN7701PA, you can power a variety of devices, including IP phones, Wi-Fi Access Points, surveillance cameras, thin clients, or even LED lighting, provided they support the IEEE 802.3af/at standard.
Is the switch suitable for rack mounting?
Yes, the Grandstream GWN7701PA offers flexible mounting options. It can be placed on a desk, mounted on a wall, or installed in a standard 19-inch network rack using the included brackets to ensure a clean and professional installation.
What is the maximum PoE budget of the GWN7701PA?
The Grandstream GWN7701PA features a generous total PoE budget of 145 Watts. This means it can power connected PoE devices with a combined output of up to 145 Watts, with each individual port providing a maximum of 30 Watts.
