Your TRB500 becomes an Outdoor Champion
Forget the times when your Teltonika TRB500 Gateway had to fight for every bit of 5G signal in the control cabinet or deep inside the building. The QuWireless QuSpot A500S is the ultimate solution to transform your industrial 5G Gateway into a weatherproof outdoor monster. You simply integrate your TRB500 into the Antenna's robust housing and immediately benefit from a massive improvement in your cellular reception. Thus, an indoor device becomes a powerful outdoor unit that withstands even extreme conditions.
Maximum Flexibility: All-round Reception without Compromises
Unlike directional Antennas that require precise alignment with a cell tower, the QuSpot A500S offers you omnidirectional 360-degree reception. This means for you: No elaborate installation, no constant re-alignment. This omnidirectional Antenna is perfect for mobile applications such as in vehicles, on boats, yachts, or construction machinery. Even in complex urban environments where signals are reflected from different sides, or at changing locations, the QuSpot A500S is your first choice for reliable signal amplification. It turns your Teltonika 4G / 5G Router into a flexible power package.
Zero-Loss Performance for your 5G Network

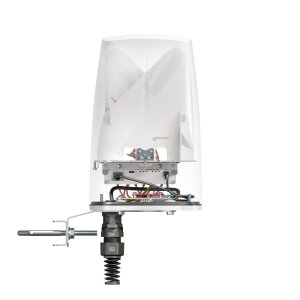

The secret to the superior performance of the QuSpot A500S lies in its unique all-in-one design. By integrating the Teltonika TRB500 Gateway directly into the Antenna's IP67 Housing, you eliminate signal losses that typically occur with long Antenna Cables. This Zero-Loss Antenna ensures that the full performance of the 4x4 MIMO antenna system reaches the router directly. You benefit from optimal 5G performance across the entire frequency range from 617 MHz to 4.6 GHz, including important 5G bands like n78 at 3.5 GHz, which are crucial for gigabit speeds.
Easy Integration and Robust Construction
The installation of the QuSpot A500S is extremely simple. Power and data are supplied to the device via a single Ethernet Cable. Since the TRB500 supports PoE, you only need a suitable passive PoE Splitter (included in delivery) and a PoE Injector (sold separately) to power your gateway on the roof or mast. The extremely durable, UV-resistant ABS housing with IP67 certification guarantees reliable operation under the toughest conditions and extreme temperatures from -40 °C to 75 °C. The included Antenna Mounting Accessories allow for flexible mast mounting or wall mounting.
Strengths & Notes at a Glance
- Pro: All-in-One solution with Zero-Loss due to direct router integration for maximum signal strength and performance.
- Pro: Robust outdoor capability thanks to IP67 certification, dust-, water- and UV-resistant, ideal for extreme temperatures (-40 °C to 75 °C).
- Pro: Omnidirectional 360° reception makes alignment with cellular masts unnecessary, perfect for mobile applications or changing signal sources.
- Note: The Teltonika TRB500 5G Gateway required for operation is not included and must be purchased separately.
- Note: The included Gigabit PoE Splitter only supports passive PoE up to 24V and is not compatible with the common 802.3af/at PoE standard.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuSpot A500S All-in-One Omnidirectional Antenna for Teltonika TRB500 5G Gateway |
| Product Type: | All-in-One Outdoor 5G Antenna / Housing for Gateway |
| Compatibility: | Teltonika TRB500 5G Gateway |
| Antenna Type: | Omnidirectional Antenna |
| MIMO Configuration: | 4x4 MIMO |
| Frequency Range 1: | 617 - 960 MHz (Gain: approx. 2 dBi) |
| Frequency Range 2: | 1.7 - 2.7 GHz (Gain: approx. 3.5 dBi) |
| Frequency Range 3: | 3.3 - 4.6 GHz (Gain: approx. 4.5 dBi) |
| Horizontal Beamwidth: | 360° (Omnidirectional) |
| Vertical Beamwidth: | approx. 35° to 50° (frequency dependent) |
| Impedance: | 50 Ohm |
| Polarization: | Vertical |
| Housing Material: | ABS (UV-resistant), Aluminum, PTFE, Fiberglass |
| Protection Class: | IP67 (Waterproof & Dustproof) |
| Operating Temperature: | -40°C to +75°C |
| Wind Load (Survival): | Up to 160 km/h |
| Dimensions: | 160 x 160 x 240 mm |
| Weight: | approx. 1.5 kg |
| Mounting: | Mast or Wall Mounting (Bracket incl.) |
Scope of Delivery
| 1 x QuWireless QuSpot A500S Antenna (Housing incl. Antennas and PoE Splitter) |
| 1 x Mounting Accessories (Mast Clamp, Screws, Dowels) |
| 1 x Internal Connection Cables (pre-installed) |
Frequently Asked Questions (FAQ)
What is the QuSpot A500S?
The QuSpot A500S is an all-in-one omnidirectional 5G/LTE antenna from QuWireless. It was specifically designed to house your Teltonika TRB500 5G Gateway in a robust, weather-resistant Enclosure, creating a powerful outdoor mobile solution for you.
Which router is compatible with the QuSpot A500S?
The QuSpot A500S is tailor-made for your Teltonika TRB500 5G Gateway.
What are the advantages of an omnidirectional antenna like the QuSpot A500S?
Omnidirectional Antennas like the QuSpot A500S receive signals from all directions (360 degrees), meaning you don't have to align them with a cell tower. This makes them ideal for your mobile applications or environments where your signal source may change.
Is the Teltonika TRB500 included with the QuSpot A500S?
No, your Teltonika TRB500 5G Gateway is not included with the QuSpot A500S, and you must purchase it separately. The QuSpot A500S only provides the Enclosure and the integrated antennas for it.
What is the IP rating of the QuSpot A500S?
The QuSpot A500S has an IP67 certification. This means it is dust-tight and protected against temporary immersion in water. You may also find sources that mention IP68.
Which frequency bands does the QuSpot A500S support?
The QuSpot A500S supports a wide frequency range from 617 MHz to 4.6 GHz (some sources mention up to 6000 MHz). This includes all current and future 5G bands (such as n78 at 3.5 GHz) as well as various LTE bands for you.
