NanoBeam M5-16: Your Personal Data Highway Through the Air

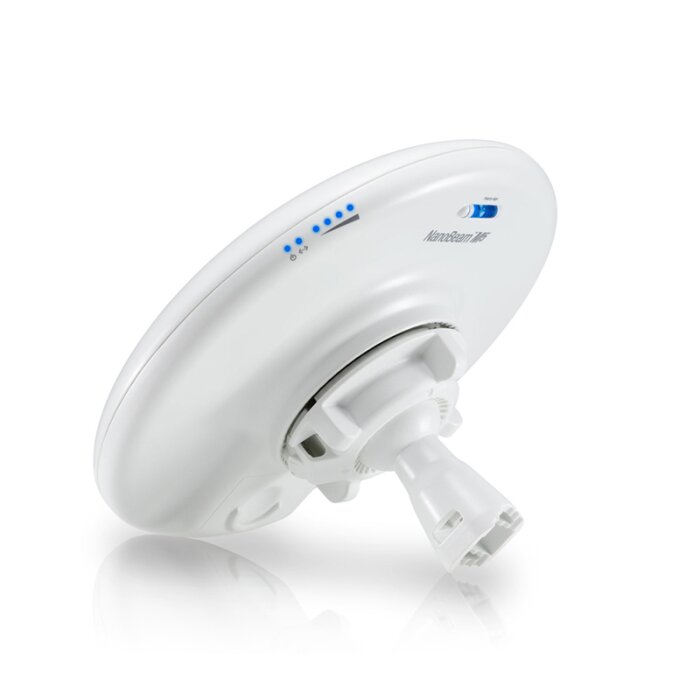

The Ubiquiti NanoBeam M5-16 is not an ordinary WiFi Antenna. It is a highly specialized WiFi Bridge, designed for a single task: to establish an extremely stable and fast point-to-point (PtP) or point-to-multipoint (PtMP) connection over long distances. Forget complicated and expensive Cabling. With two of these devices, you create an invisible bridge to reliably extend your Network to another building. Configuration is done through the powerful and intuitive airOS software, which gives you full control over your WiFi point-to-point link for buildings.
Maximum Performance in a Minimal Size
The secret of the NanoBeam lies in its compact all-in-one design. Ubiquiti has integrated the radio technology directly into the Antenna feedhorn (InnerFeed technology). This eliminates cable losses and ensures maximum energy efficiency. The highly focused radio beam ignores interference from the surroundings, which is crucial, especially in densely populated areas with many other 5 GHz networks. Despite its enormous range, this 5 GHz Directional Antenna is barely larger than a small plate and blends discreetly into any environment.
Installation? Done in Minutes.
Ubiquiti has revolutionized mounting. Thanks to the ingenious ball-joint mount, you can flexibly align the NanoBeam M5-16 in three axes to perfectly adjust the signal. It attaches to a pole with a single metal strap – no additional tools or screws required. This not only saves time but also your nerves. The integrated signal strength LEDs provide direct visual feedback to quickly find the best possible alignment.
Strengths & Notes at a Glance
- Pro: Excellent noise immunity due to focused RF energy and InnerFeed design.
- Pro: Extremely compact and discreet all-in-one design minimizes wind load.
- Pro: Innovative ball-joint Mounting System for quick and flexible 3-axis alignment.
- Pro: High cost-effectiveness and scalability for professional PtP and PtMP networks.
- Note: The 10/100 Mbps Ethernet port limits the maximum data throughput to under 100 Mbps.
- Note: Configuration via airOS requires basic networking knowledge.
Specifications & Features
| Manufacturer: | Ubiquiti |
| Model Name: | NanoBeam M5-16 |
| Manufacturer Part Number (MPN): | NBE-M5-16 |
| EAN / GTIN: | 0810354022449 |
| Product Type: | WiFi Bridge / CPE Directional Radio Antenna |
| System & Processor | |
| Processor: | Atheros MIPS 74Kc |
| Clock Speed: | 560 MHz |
| Memory: | 64 MB DDR2 SDRAM |
| Flash Memory: | 8 MB |
| RF Properties (Radio) | |
| Frequency Band: | 5 GHz |
| Operating Frequency (Worldwide): | 5170 - 5875 MHz |
| Antenna Gain: | 16 dBi |
| Antenna Type: | Integrated Directional Antenna (InnerFeed) |
| Polarization: | Dual-Linear |
| Max. VSWR: | 1.5:1 |
| Range: | Over 10 km (under optimal conditions) |
| Data Transfer & Network | |
| WiFi Standard: | Ubiquiti airMAX (TDMA) Protocol |
| Max. Throughput: | 150+ Mbps (Radio), limited by Ethernet port |
| Channel Widths: | 5/8/10/20/30/40 MHz |
| Network Interface: | 1 x 10/100 Mbps Fast Ethernet Port (RJ45) |
| Power Supply | |
| Power Method: | Passive Power over Ethernet (PoE) |
| PoE Adapter (Included): | 24V, 0.5A |
| Supported Voltage: | 20-27V DC |
| Max. Power Consumption: | 6 Watts |
| Physical Characteristics | |
| Dimensions (incl. Mount): | 140 x 140 x 54 mm |
| Weight (incl. Mount): | 320 g |
| Enclosure Material: | Outdoor UV Stabilized Plastic |
| Mounting: | Pole-Mount Kit (Included), Wall-Mountable |
| Environmental & Durability | |
| Operating Temperature: | -40°C to 70°C |
| Operating Humidity: | 5 to 95% Noncondensing |
| Wind Loading: | 21.4 N @ 200 km/h |
| Wind Survivability: | 200 km/h |
| ESD/EMP Protection: | ± 24 kV (Air/Contact) |
| Certifications: | FCC, IC, CE, RoHS |
| Software & Management | |
| Operating System: | Ubiquiti airOS |
| Management: | Web Interface, UNMS/UISP, airControl |
| LEDs: | 1x Power, 1x LAN, 4x WiFi Signal Strength |
Package Contents
| 1 x Ubiquiti NanoBeam M5-16 |
| 1 x Ball Joint Mount |
| 1 x Lock Ring |
| 1 x Metal Strap (for Pole Mounting) |
| 1 x PoE Adapter (24V, 0.5A) |
| 1 x Power Cord |
| 1 x Quick Start Guide |
Frequently Asked Questions (FAQ)
Can I use the NanoBeam M5-16 as a normal WiFi booster for my house?
No, the NanoBeam M5-16 is not a standard WiFi Repeater or booster for general end devices like smartphones. It generates a highly directional signal to establish a wireless bridge to another compatible antenna (e.g., a second NanoBeam) over long distances, typically between two buildings. It's a key part of our WiFi Bridge Sets.
Do I need a clear line of sight between the two Antennas?
Yes, an absolutely clear and direct line of sight (LoS) is essential for optimal performance. Obstacles such as buildings, trees, or hills will drastically reduce signal quality or prevent the connection entirely. This is crucial for all 5 GHz Components.
How is the NanoBeam M5-16 powered?
Power is supplied via the included 24V Passive Power over Ethernet (PoE) adapter. A single Ethernet Cable running from the antenna to the PoE adapter transmits both data and the necessary power. This is a common feature for Ubiquiti Networks devices.
What is the difference between Access Point and Station mode?
In a typical point-to-point connection, one NanoBeam is configured as an 'Access Point' (transmitter) and the other as a 'Station' (receiver). The Access Point establishes the Network, and the Station connects to it, similar to how a laptop connects to a WiFi Router.
Is the NanoBeam M5-16 weatherproof for outdoor use?
Yes, the Enclosure is made of UV-stabilized plastic and is designed for permanent outdoor use. It is protected against rain, wind, and extreme temperatures from -40°C to 70°C. It's a durable piece of Ubiquiti Accessories.
What real speed can I expect over the wireless bridge?
Due to the limitation of the 10/100 Mbps Ethernet port, the maximum real data throughput is just under 100 megabits per second, even if the wireless link itself has a higher capacity. The actual speed depends on distance, signal quality, and environmental interference. For higher speeds, you might consider airFiber or 60 GHz Components.
