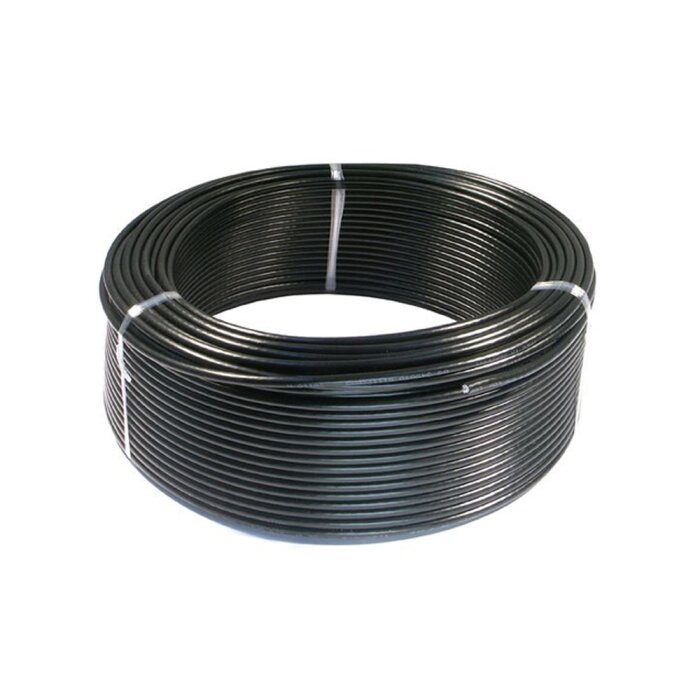

Coaxial Antenna Cable | H-155, Low Loss, Outdoor, 100m Reel

The coaxial antenna cable type H-155 is a flexible low-loss antenna cable. The cable has double shielding and is well suited for applications up to 3 GHz. The H-155 cable is delivered rolled up to 100m.
ART5596 4251028602172 H-155
159,99 €
incl. 19% VAT , plus shipping costs (Standard)
pcs
  • Low stock level
  • Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)
Description

The H-155 coaxial antenna cable is a flexible, high quality and low loss coax cable which can be perfectly used for appliances upp to 3 GHz (GSM, 3G, 4G, WiFi).

The H155 cable has a flexible inner conductor consisting of a copper wire braid. Thanks to the PVC sheath, the H-155 cable is UV and moisture resistant and can be used outdoors.

The cable is delivered on a 100m reel.


Technical Data:

Cable Type:H-155 Coaxial Cable
Impedance:50 Ohm
Loss:0.26dB/m @ 800 MHz
0.43dB/m @ 1800 MHz
0.49db/m @ 2400 MHz
0.70db/m @ 5GHz
Capacity:82pf/m
Inner conductor:19 x 0.28mm Copper
Insulation:3.9mm PE
Jacket:PVC
Outer diameter:5.4 mm
Bending radius:35mm
Color:Black


Scope of delivery

H155 Coax Antenna Cable, 100m Reel
