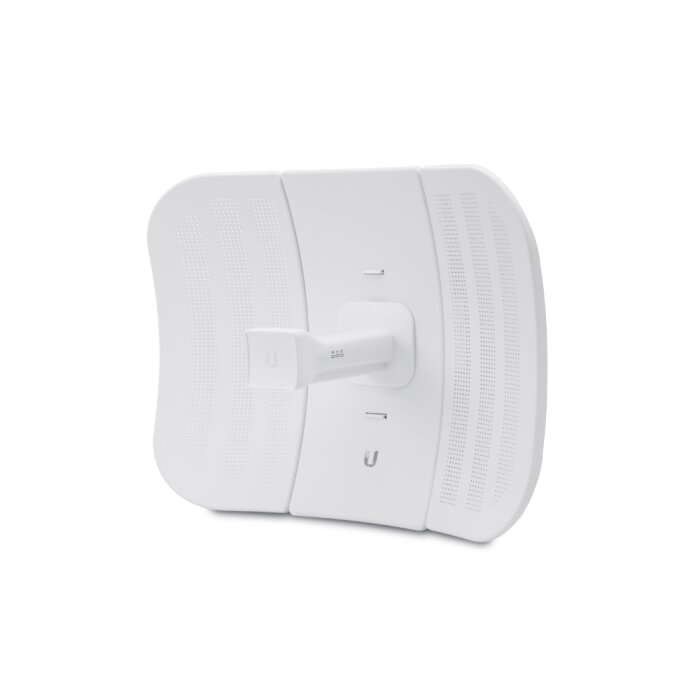

The Ubiquiti LBE-M5-23 is the latest evolution of a lightweight and compact, outdoor wireless broadband CPE (Customer Premises Equipment) from Ubiquiti Networks. The LBE-M5-23 was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license free 5 GHz frequency range and features high performance of up to 100+ Mbps in real outdoor throughput and an incredible range.
The LBE-M5-23 combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value. Its InnerFeed technology integrates the entire radio system into the feedhorn of the antenna, and our revolutionary airMAX TDMA protocol enhances network performance and scalability.
It also features a unique ball joint mounting system that provides 3-axis adjustment flexibility for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment.
Quick, Snap-and-Lock AssemblyThe all-new mechanical design makes assembling and disassembling the LBE-M5-23 - literally - a snap. No tools are required.
Integrated airMAX TechnologyUnlike standard Wi-Fi protocol, the exclusive Ubiquiti Networks airMAX Time Division Multiple Access (TDMA) protocol allows each client to send and receive data using pre-designated time slots managed by an intelligent AP controller. This "time slot" method eliminates hidden node collisions and maximizes airtime efficiency.
Compared to other systems in its class, the LBE-M5-23 delivers superior performance in reduced latency, throughput, and scalability.
- Intelligent QoS: Priority is given to voice/video for seamless access.
- Scalability: High capacity and scalability.
- Long Distance: Capable of high-speed, 30+ km links.
Technical Data:
| Manufacturer / Product: | Ubiquiti Networks / LiteBeam M5-23 |
| Processor Specs: | MIPS 74K |
| Memory Information: | 64MB SDRAM |
| Operating System: | AirOS |
| Networking Interface: | 1 x 10/100 BASE-TX (Cat. 5, RJ-45) |
| Frequency Band: | Worldwide: 5170 - 5875 MHz USA: 5725 - 5850 MHz |
| Supported Standards: | IEEE 802.11a: 54MBit IEEE 802.11n: 150MBit |
| TX Power: | max. 25dBm |
| RX Sensitivity: | min. -96dBm |
| TCP/IP Throughput: | 100Mbps+ |
| Range: | up to 30km+ |
| Antenna: | 23dBi Backfire Antenna |
| max. Power Consumption: | 4 Watt |
| Power Method: | Passive Power over Ethernet PoE Injector is included! |
| Power Input: | 12V - 24V (12 Watt) |
| ESD/EMP Protection: | 24KV radio frequency and ethernet electrostatic discharge (ESD) protection. |
| Dimensions: | 36.2 x 26.7 x 18.4 cm |
| Weight: | 0.750 kg |
| max. Wind Load | 176.86 N @ 200 km/h |
| Operating Temperature: | -40°C to +70°C |
| Operating Humidity: | 5 to 95% non-condensing |
| Shock and Vibration:: | ETSI300-019-1.4 |
Scope of delivery:
| 1 x Ubiquiti LiteBeam M5-23 |
| 1 x 24V/0.2A - PoE Injector |
| 1 x Mounting Kit |
