Your WiFi, redefined: Performance that inspires

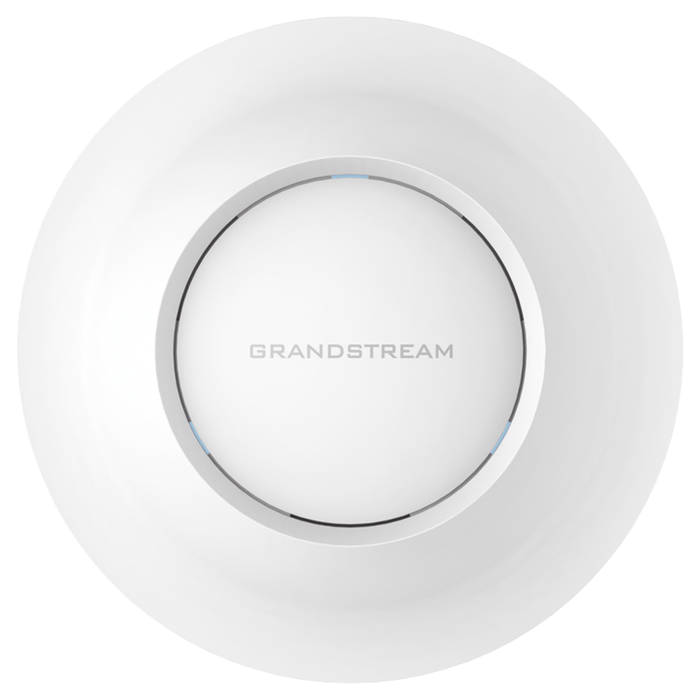

The Grandstream GWN7630 is more than just a WiFi Access Point. It's your key to a powerful and reliable wireless Network that meets even the most demanding requirements. With the 802.11ac Wave-2 standard and impressive 4x4:4 MU-MIMO technology, this AP delivers a combined wireless throughput of up to 2.33 Gbps. This means: even in environments with high user density and bandwidth-intensive applications such as video streaming or cloud services, your WiFi remains stable and fast. Over 200 concurrent Wi-Fi client devices are no problem for the GWN7630 – ideal for offices, schools, or hotels.
Management made easy: Flexible and scalable
Forget complicated installations and expensive hardware controllers! The Grandstream GWN7630 offers you maximum flexibility in management. Each Access Point features an embedded controller that can manage up to 50 local GWN APs. For larger networks or multi-site deployments, the free GWN.Cloud Management platform is available – for unlimited AP management, no matter where you are. You can even easily set up a mesh Network without having to purchase a separate physical controller. This saves costs and makes scaling your Network a breeze. This way, you can design your Network efficiently and future-proof.
Security that builds trust: Protection at the highest level
Security is not an option, but a necessity. The Grandstream GWN7630 takes this seriously. It is equipped with advanced anti-hacking security mechanisms, including Anti-Hacking Secure Boot and critical data/control lockdown via digital signatures. Each device features a unique security certificate and a random default password, providing robust protection against cyber threats and unauthorized access. This way, you can be sure that your data and network are protected.
More than just WiFi: Intelligent solutions for your business
The GWN7630 is not only fast and secure but also intelligent. It is explicitly optimized for Voice-over-Wi-Fi (VoWiFi) implementations and offers a seamless connection with Grandstream's Wi-Fi-enabled IP phones. This is a huge advantage for businesses seeking an integrated communication solution. With its Gigabit Ports and PoE+ support, it can also be easily integrated into your existing infrastructure. For power supply, you only need a PoE Injectors / Power Supplies or a corresponding Ethernet Switch. The GWN7630 is the ideal solution for High-Performance Wi-Fi in small and medium-sized enterprises (SMEs).
Strengths & Notes at a glance
- Pro: High performance and capacity with 2.33 Gbps throughput and 4x4:4 MU-MIMO technology.
- Pro: Flexible and scalable management options through embedded controller and free GWN.Cloud.
- Pro: Comprehensive security features such as Anti-Hacking Secure Boot and digital signatures.
- Pro: Optimized for Voice-over-Wi-Fi (VoWiFi) and Grandstream IP phones.
- Pro: Easy Mesh network setup without a dedicated hardware controller.
- Note: Does not support the latest Wi-Fi 6 (802.11ax) standard.
- Note: Power adapter for non-PoE operation not included.
Specifications & Features
| Manufacturer: | Grandstream Networks |
| Model: | GWN7630 |
| Product Type: | 802.11ac Wave-2 WiFi Access Point |
| WiFi Standards: | IEEE 802.11a/b/g/n/ac Wave-2 |
| WiFi Speed: | Up to 2.33 Gbps (1733 Mbps on 5 GHz, 600 Mbps on 2.4 GHz) |
| Frequency Bands: | 2.4 GHz and 5 GHz (Dual-Band) |
| MIMO Technology: | 4x4:4 MU-MIMO |
| Antennas: | 4x internal Dual-Band Antennas (2.4 GHz: 3.5 dBi, 5 GHz: 4.5 dBi) |
| Ethernet Ports: | 2x Gigabit Ethernet Ports (1x PoE+ In, 1x Data) |
| Max. Concurrent Clients: | Over 200 |
| Max. Range: | Up to 175 meters (depending on environment) |
| Power Supply: | PoE+ (802.3af/at) |
| Max. Power Consumption: | 13.8W |
| Security Features: | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, Anti-Hacking Secure Boot, digital signatures, unique security certificate |
| Management Options: | Embedded Controller (up to 50 APs), GWN.Cloud (unlimited), GWN Manager (local) |
| Mounting: | Wall or Ceiling Mount (mounting kit included) |
| Dimensions (WxDxH): | 205.3 x 205.3 x 45.9 mm |
| Operating Temperature: | 0°C to 45°C |
Scope of Delivery
| 1 x Grandstream GWN7630 WiFi Access Point |
| 1 x Mounting Kit (Wall/Ceiling Mount) |
| 1 x Quick Start Guide |
Frequently Asked Questions (FAQ)
What is the Grandstream GWN7630 and what is it used for?
The Grandstream GWN7630 is a high-performance 802.11ac Wave-2 Wi-Fi Access Point designed for small to medium-sized businesses, multi-floor offices, commercial locations, and branch offices to provide reliable and fast Wi-Fi coverage.
Which Wi-Fi standards does the Grandstream GWN7630 support?
The Grandstream GWN7630 supports the Wi-Fi standard IEEE 802.11 a/b/g/n/ac Wave-2.
How is the Grandstream GWN7630 powered?
The Grandstream GWN7630 supports power supply via Power over Ethernet (PoE) and PoE+ (802.3af/at).
How many concurrent clients can the GWN7630 support?
The Grandstream GWN7630 can support over 200 concurrent Wi-Fi client devices.
Is the Grandstream GWN7630 optimized for Voice-over-Wi-Fi (VoWiFi) applications?
Yes, the GWN7630 is an ideal Wi-Fi AP for Voice-over-Wi-Fi implementations, offering seamless connectivity with Grandstream's Wi-Fi-enabled IP phones.
What management options does the Grandstream GWN7630 offer for larger networks?
The GWN7630 features an embedded controller that can manage up to 50 local GWN series Access Points. Additionally, Grandstream offers the free cloud Wi-Fi management platform GWN.Cloud for unlimited AP management.
