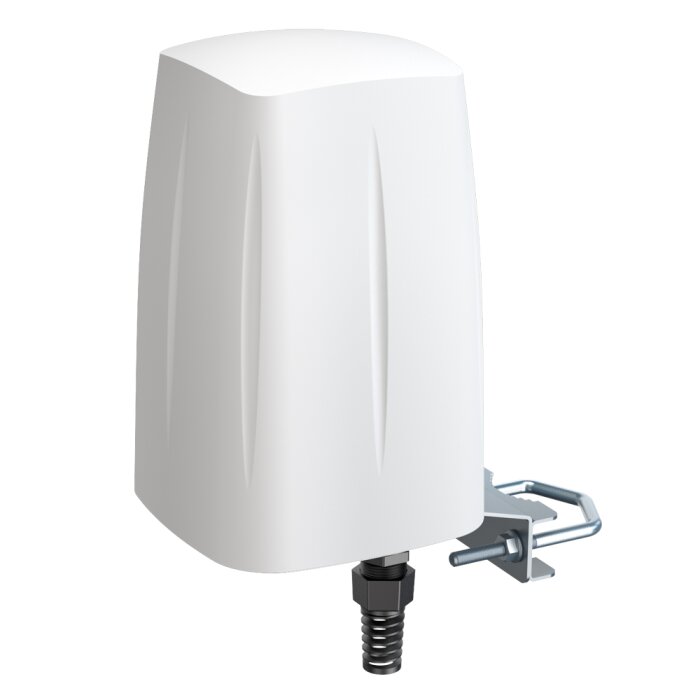

Your Teltonika Router, but Indestructible: The Outdoor Fortress
Is your Teltonika RUT955 or RUT956 a powerhouse, but unprotected outdoors? The QuSpot A955S is more than just an Antenna – it's a tailor-made protective suit. Developed in Europe to withstand the toughest conditions, this Enclosure transforms your Teltonika 4G / 5G Router into a professional outdoor complete solution. Thanks to the IP67/IP68-certified Enclosure, water, dust, and extreme temperatures are no longer an issue. Ideal for improving 4G reception on a boat or in a motorhome.
No More Signal Loss: The Direct Connection Counts
The secret to a truly fast and stable mobile connection lies not only in the Antenna itself but in the signal's path. Every meter of Antenna Cables weakens the signal. The QuSpot A955S radically eliminates this problem: your Teltonika Router is mounted directly in the Antenna Enclosure. The connection to the powerful 2x2 MIMO 4G Antenna is only a few centimeters long. For you, this means: maximum signal integrity, higher data rates, and a Network connection you can rely on.
One Antenna for Everything: 4G, WiFi, and GPS Integrated
Forget cable clutter and mounting three different Antennas. The QuSpot A955S is a sophisticated all-in-one Antenna for RUT955 industrial applications. It includes not only the multiband 4G Antennas, but also a powerful Dual-Band WiFi Omni-Directional Antenna to establish a stable Wi-Fi Network on site. Additionally, the integrated GPS/GLONASS Antenna provides precise location data – essential for fleet management and maritime applications, making it a valuable GPS Tracker.
Installation Made Easy: One Cable for Power and Data
Installing technology outdoors can be complicated, especially the Power Supply. The QuSpot A955S elegantly solves this via Passive Power over Ethernet (PoE). A single standard Ethernet Cable supplies power to the router inside and simultaneously establishes the data connection. This makes Mounting Systems on masts, walls, or vehicle roofs incredibly flexible and straightforward, utilizing PoE Injectors / Power Supplies.
Strengths & Notes at a Glance
- Pro: Maximum signal performance due to ultra-short Antenna Cables without signal loss.
- Pro: Extremely robust and durable IP67/IP68 Enclosure for use under the harshest conditions.
- Pro: Integrated all-in-one solution with 4G, Dual-Band Wi-Fi, and GPS in one enclosure.
- Pro: Significantly simplified installation and flexible mounting through Passive PoE support.
- Note: Compatibility is limited to Teltonika models RUT955, RUT956, and RUT906.
- Note: As an Omni-Directional Antenna, it is not ideal for extreme distances to the mobile mast, where a Directional Antenna would be better.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuSpot A955S |
| Manufacturer Part Number (MPN): | A955S |
| EAN: | 5907772035030 |
| Country of Origin: | Poland, Europe |
| Router Compatibility: | Teltonika RUT956, RUT955, RUT906 (Router not included) |
| 4G Antenna | |
| Antenna Type 4G: | Multiband Omni-Directional Antenna |
| MIMO Configuration 4G: | 2x2 MIMO |
| Frequency Range 1 (4G): | 694 - 960 MHz |
| Antenna Gain 1 (4G): | 2 dBi |
| Frequency Range 2 (4G): | 1700 - 2200 MHz |
| Antenna Gain 2 (4G): | 2 dBi |
| Frequency Range 3 (4G): | 2200 - 2700 MHz |
| Antenna Gain 3 (4G): | 4 dBi |
| Polarization 4G: | Vertical |
| Beamwidth 4G: | 360° (Horizontal) / 35° ±5° (Vertical) |
| Impedance 4G: | 50 Ω |
| VSWR 4G: | <1.60 (max. <2.00) |
| Wi-Fi Antenna | |
| Antenna Type Wi-Fi: | Dual-Band Omni-Directional Antenna |
| Frequency Range 1 (Wi-Fi): | 2.4 - 2.5 GHz |
| Antenna Gain 1 (Wi-Fi): | 6 dBi |
| Frequency Range 2 (Wi-Fi): | 4.7 - 6.0 GHz |
| Antenna Gain 2 (Wi-Fi): | 7 dBi |
| Polarization Wi-Fi: | Vertical |
| Beamwidth Wi-Fi: | 360° (Horizontal) / 25° ±5° (Vertical) |
| Impedance Wi-Fi: | 50 Ω |
| VSWR Wi-Fi: | <1.70 (max. <2.00) |
| GPS Antenna | |
| Antenna Type GPS: | Integrated, active GPS/GLONASS Antenna |
| Frequency Range GPS: | 1575.42 - 1602 MHz |
| GPS Gain (LNA): | 28 dB (typical) |
| Mechanics & Environment | |
| Dimensions: | 160 x 160 x 240 mm |
| Weight: | 1.5 kg |
| Housing Material: | ABS, Aluminum, PTFE |
| Protection Class: | IP67 / IP68 (dustproof, protection against temporary immersion) |
| Impact Resistance: | IK08 |
| Operating Temperature: | -40°C to +75°C |
| Mounting: | Mast or Wall Mounting (Mounting Kit included) |
| Supported Mast Diameter: | 40 - 60 mm |
| Connections & Power Supply | |
| Connection to Router: | Internal, pre-assembled Antenna Cables |
| External Connection: | 1x RJ45 Socket |
| Power Supply: | Passive Power over Ethernet (PoE) |
Scope of Delivery
| 1 x QuWireless QuSpot A955S All-in-One Antenna Enclosure |
| 1 x Mast/Wall Mounting Kit |
Frequently Asked Questions (FAQ)
Is the Teltonika Router included with the QuSpot A955S?
No, the Teltonika Router (RUT956, RUT955, or RUT906) is not included. The QuSpot A955S is an antenna enclosure designed to house the separately purchased Teltonika LTE / 5G Routers.
How is the antenna powered when mounted outdoors?
Power is supplied via Passive Power over Ethernet (PoE). This means that a single Ethernet Cable provides both the data connection and powers the Router installed in the enclosure, significantly simplifying installation thanks to PoE Injectors / Power Supplies.
Is the QuSpot A955S suitable for use at sea, e.g., on a boat or a Yacht?
Yes, absolutely. Thanks to its robust, IP67/IP68-certified Enclosures, it is fully protected against dust and water (even temporary submersion), making it ideal for maritime applications and other harsh environmental conditions, perfect for your Yacht / Camper / Motorhome.
Does this antenna improve my 4G reception compared to standard stick Antennas?
Yes, in most cases, significantly. The Antennas in the QuSpot are optimized for a wide frequency range and offer higher gain than the included standard antennas. However, the crucial advantage is the elimination of Cabling losses, as the Router sits directly at the 4G / LTE Outdoor Antennas.
Can I set up an outdoor WiFi Network with the integrated WiFi Antenna?
Yes, the integrated 6-dBi WiFi Omni-Directional Antennas is designed to provide a local WiFi Network around the mounting location, for example, at a campsite, a harbor area, or in the outdoor area of a building, enhancing your Network connectivity.
Which 4G frequency bands does the antenna cover?
The 4G Antenna covers all common 4G/LTE and even some 5G frequency bands in the 694-960 MHz, 1.7-2.2 GHz, and 2.2-2.7 GHz ranges, ensuring broad compatibility with European and international mobile Networks, making it a versatile 5G Antennas / Outdoor Antennas solution.
