Your Signal Booster for Demanding Environments

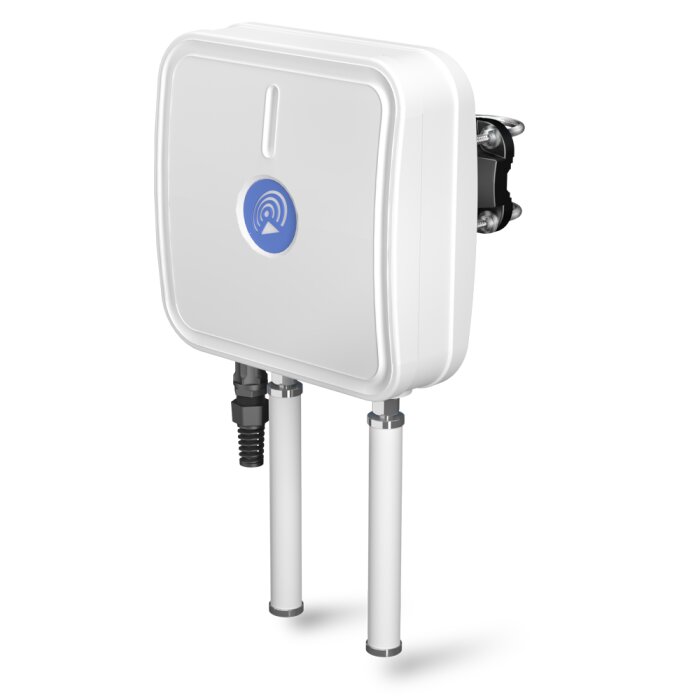

You know the problem: mobile reception is weak, the connection constantly drops, and fast internet is out of the question. The QuMax A955M is the ultimate solution to bring your powerful Teltonika Router exactly where reception is best – outdoors. This QuMax A955M Outdoor Enclosure with Directional Antenna bundles signals from distant cell towers, ensuring a stable, fast data connection you can rely on.
Thought Out to the Last Detail

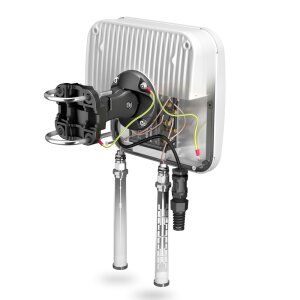

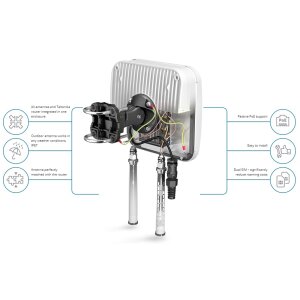

Forget complicated installations with multiple Antennas and weather-sensitive cables. With the QuMax A955M, everything is integrated into a single, IP67 dustproof and waterproof Enclosure. Your Teltonika Router is securely mounted inside and powered via passive PoE. This means: a single Ethernet Cable is enough to achieve your Teltonika 4G Router Signal Boosting Outdoor Mounting. The integrated Wi-Fi Antennas also allow you to set up a strong WLAN signal around the Enclosure – ideal for the exterior of buildings, marinas, or event locations.
Professional Features for Business Applications
The built-in, active GPS Antenna opens up professional application possibilities. Monitor the location of your mobile assets such as construction containers or mobile equipment and protect them from theft with geofencing. Precise time synchronization is also a great advantage for industrial applications and accurate data logging. This PoE Antenna Solution for Poor 4G Reception is more than just an antenna – it is the heart of your reliable outdoor connectivity.
Strengths & Notes at a Glance
- Pro: Maximum signal quality thanks to directional antenna with up to 6 dBi gain.
- Pro: Extremely robust IP67 enclosure protects the Teltonika Router from weather influences.
- Pro: Simplified installation and less cable clutter thanks to passive PoE.
- Pro: Integrated GPS antenna for professional tracking and geofencing applications.
- Note: The compatible Teltonika Router (RUT955/956/906) is not included in the scope of delivery.
- Note: Optimized as a directional antenna for stationary use, less suitable for constantly moving vehicles.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuMax A955M |
| HAN / MPN: | A955M |
| EAN: | 5907772035108 |
| Product Type: | All-in-One Directional Antenna with Integrated Enclosure |
| Compatibility: | Teltonika RUT955, RUT956, RUT906 |
| Protection Class: | IP67 (dustproof, protection against temporary immersion) |
| Materials: | ABS, Aluminum, PTFE, Fiberglass |
| Color: | White / Grey (UV-resistant) |
| External Dimensions: | 272 x 276 x 96 mm |
| Weight: | 1.8 kg |
| Operating Temperature: | -40°C to +75°C |

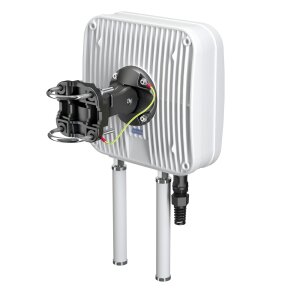

| Mounting: | Pole or Wall Mounting (bracket included) |
| Power Supply: | Passive Power over Ethernet (PoE) |
| Antenna Type (4G): | Multiband Directional Antenna |
| Connectors (4G): | 2x SMA |
| Frequency Range 1 (4G): | 694 - 960 MHz |
| Gain @ 694-960 MHz: | 4 dBi |
| Frequency Range 2 (4G): | 1700 - 2200 MHz |
| Gain @ 1700-2200 MHz: | 5 dBi |
| Frequency Range 3 (4G): | 2200 - 2700 MHz |
| Gain @ 2200-2700 MHz: | 6 dBi |
| Polarization (4G): | Vertical |
| Beamwidth (4G): | 90°/90° ±30° |
| Impedance (4G): | 50 Ω |
| VSWR (4G): | <1.30, max <1.80 |
| Internal Cable Type: | RG316 |
| Antenna Type (Wi-Fi): | Dual-Band Omni-Directional Antenna |
| Connectors (Wi-Fi): | 2x RP-SMA |
| Frequency Range 1 (Wi-Fi): | 2.40 - 2.50 GHz |
| Gain @ 2.4 GHz: | 6 dBi |
| Frequency Range 2 (Wi-Fi): | 4.70 - 6.00 GHz |
| Gain @ 4.7-6.0 GHz: | 7 dBi |
| Polarization (Wi-Fi): | Vertical |
| Beamwidth (Wi-Fi): | 360°/25° ±5° |
| Impedance (Wi-Fi): | 50 Ω |
| VSWR (Wi-Fi): | <1.70, max <2.00 |
| Antenna Type (GPS): | Active GPS Antenna |
| Connectors (GPS): | 1x SMA |
| Frequency (GPS): | 1.56 – 1.61 GHz |
| Gain (GPS): | 3 dBi |
| Gain @ 3V (GPS): | 28 dBi |
| VSWR (GPS): | < 2.0 |
| DC Voltage Supply (GPS): | 2.5 V ~ 6.5 V |
Scope of Delivery
| 1 x QuMax A955M All-in-One Antenna Enclosure |
| 1 x Pole/Wall Mount |
Frequently Asked Questions (FAQ)
Which 4G / 5G Routers are compatible with the QuMax A955M antenna?

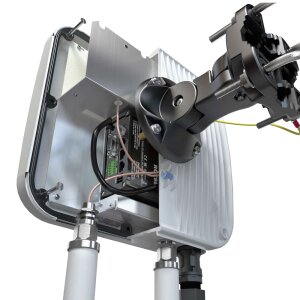

The QuMax A955M is specifically designed for Teltonika Router models RUT955, RUT956, and RUT906. These Teltonika LTE / 5G Routers fit precisely into the designated compartment inside the Enclosures.
Does the QuMax A955M also offer WiFi functionality?
Yes, the antenna features integrated, omni-directional WiFi Antennas for the 2.4 GHz and 4.7-6.0 GHz frequency bands. If you install a compatible Teltonika Router, you can create an outdoor WiFi hotspot with it, leveraging its WiFi Routers capabilities.
How is the antenna or the router powered?
Power is supplied via passive Power over Ethernet (PoE). This means you can power the router using the same Ethernet Cable that is also used for data transmission, which significantly simplifies installation and reduces the need for separate PoE Injectors / Power Supplies.
What gain does the 4G antenna of the QuMax A955M have?
The directional 4G Antennas offer a tiered gain: 4 dBi in the 694-960 MHz frequency range, 5 dBi in the 1.7-2.2 GHz range, and up to 6 dBi in the 2.2-2.7 GHz range, to maximize signal strength for your Network.
Is the QuMax A955M suitable for outdoor use?
Absolutely. The Enclosures are IP67 certified, making it completely weatherproof. It ensures reliable operation under harsh outdoor conditions such as rain, dust, and extreme temperatures.
What advantages does the integrated GPS function offer?
The integrated GPS/GNSS antenna enables features like geofencing for theft protection and precise time synchronization for log files, which is particularly important in industrial applications and for monitoring mobile assets using GPS Trackers.
