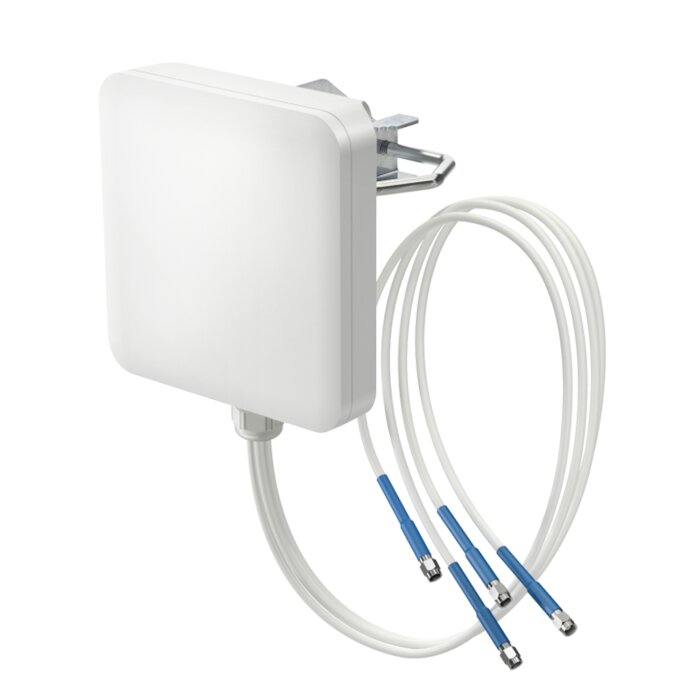

Your WiFi Upgrade for the Future: Ready for WiFi 6E & 7
With the QuWireless 9HV-65-4, you're investing not only in the present but also in the future of your Network. While many Antennas stop at 6 GHz, this powerhouse covers the frequency range up to 7.125 GHz. This makes it the perfect choice and absolutely future-proof for WiFi 6E and the upcoming WiFi 7 standard. So, if you upgrade your Router, your Antenna is already ready to utilize the new, less crowded frequency bands for an interference-free and lightning-fast connection.
Maximum Performance through 4x4 MIMO Technology
Why four connectors? Because more is simply more! The integrated 4x4 MIMO technology (Multiple-Input Multiple-Output) is the key to a superior WiFi experience. The Antenna sends and receives four separate data streams simultaneously. The result for you: drastically increased data transfer rates, significantly improved signal stability, and a more robust connection that won't falter even with multiple users and demanding applications.
Built for Eternity: IP67 Protection for the Toughest Conditions
Whether it's a storm, heavy rain, or a dusty industrial environment – this Antenna stands strong. The housing made of high-quality ABS plastic is certified according to the strict IP67 protection class. This means it's completely dustproof and even protected against temporary immersion in water. With an operating temperature range of -40°C to +80°C, this weather-resistant WiFi Antenna IP67 is designed for durable and reliable outdoor use.
Targeted Power: How Directional Performance Optimizes Your Network
Imagine the signal like a flashlight beam. With a beamwidth of approx. 65°, this WiFi Directional Antenna focuses the transmission power exactly where you need it. This is ideal for specifically providing strong WiFi to a garden, a warehouse, a schoolyard, or an opposite building. At the same time, this focusing reduces interference from other directions, leading to a cleaner and more stable connection.
Strengths & Notes at a Glance
- Pro: Future-proof due to broad frequency band for WiFi 6E and WiFi 7.
- Pro: High performance and stability thanks to 4x4 MIMO technology.
- Pro: Extremely robust and weather-resistant design with IP67 certification.
- Pro: Ideal for targeted coverage over short to medium distances.
- Note: As a Directional Antenna, it requires precise alignment with the target area.
- Note: The gain is not designed for long-range connections over several kilometers.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | 9HV-65-4 / QuSector 9HV-65-4 Wi-Fi 6E |
| Manufacturer Part Number (MPN): | S9HV.65.4RS |
| EAN: | 5905868601107 |
| Antenna Type: | Passive WiFi Directional Antenna (Panel Antenna) |
| Frequency Range 1: | 2.4 - 2.5 GHz |
| Frequency Range 2: | 5.0 - 7.125 GHz |
| Supported WiFi Standards: | 802.11a/b/g/n/ac/ax (WiFi 4, 5, 6, 6E, 7) |
| MIMO Configuration: | 4x4 MIMO |
| Antenna Gain at 2.4 GHz: | 8 dBi |
| Antenna Gain at 5.0 - 7.125 GHz: | 9 dBi |
| Polarization: | Dual-Polarization (Horizontal & Vertical) |
| Beamwidth (H/V) at 2.4 GHz: | 65° / 65° |
| Beamwidth (H/V) at 5.0 GHz: | 60° / 60° |
| VSWR (Standing Wave Ratio): | < 1.80 |
| Impedance: | 50 Ω |
| Front-to-Back Ratio at 2.4 GHz: | 20 dB |
| Front-to-Back Ratio at 4.9 - 6 GHz: | 25 dB |
| Connectors: | 4 x RP-SMA (Male) |
| Connection cables: | 4 x 70 cm, integrated |
| Cable Type: | LMR195 |
| Maximum Input Power: | 50 Watt |
| DC Ground: | Yes |
| Housing Material: | ABS Plastic (Injection Molded) |
| Color: | White |
| Protection Class: | IP67 |
| Dimensions (Antenna): | 16.5 x 16.5 x 4.5 cm |
| Weight (Antenna): | 0.9 kg |
| Operating Temperature: | -40°C to +80°C |
| Mounting Type: | Pole or Wall Mounting |
| Mounting Kit Material: | Galvanized Steel |
| Mounting Kit Weight: | 0.3 kg |
| Compatible Pole Diameter: | 40 - 60 mm |
Scope of Delivery
| 1 x QuWireless 9HV-65-4 Antenna with 4 integrated RP-SMA cables |
| 1 x Mounting Kit for Pole/Wall Mounting |
Frequently Asked Questions (FAQ)
Can I connect this antenna directly to my laptop to improve my WiFi?
No, not directly. You connect this antenna to a WiFi Router or a WiFi Access Point that has four external RP-SMA antenna connectors. The antenna then improves your router's signal, benefiting all your devices like laptops and smartphones.
What does 'future-proof' mean for WiFi 6E and WiFi 7 for me?
It means that your antenna already supports the frequencies in the 6 GHz band used by the new WiFi 6E and WiFi 7 standards. So, if you upgrade to a router of this generation in the future, you can simply continue using this antenna and unleash the full potential of the new, less interfered frequency bands.
How complicated is the antenna installation?
The installation is super straightforward. The package includes a robust Antenna Mounting Accessories kit for mounting on a mast or a wall. You just need to mount the antenna, align it to the desired area, and connect the four integrated cables to the appropriate connectors on your router.
The beamwidth is 65°. What does that mean for my application?
Imagine it like the beam of a flashlight. Your WiFi Antennas bundle the WiFi signal into a cone approximately 65 degrees wide. Everything within this area will receive optimal coverage from you. Areas outside this cone will receive a significantly weaker signal. This is ideal for precisely covering a specific area like your garden, a warehouse, or a neighboring building.
Why does the antenna have four connectors and not just one?
The four connectors are the core of 4x4 MIMO technology. Each connector sends and receives its own data stream. Your router uses these four parallel streams to massively increase the data rate and make your connection much more stable and reliable than would be possible with just one antenna.
Can I also use the antenna indoors?
Yes, absolutely! Although it's built for the toughest outdoor use with its IP67 certification, it naturally also works excellently indoors. This is perfect if you want to direct the WiFi signal precisely in a specific direction in large spaces like warehouses or open-plan offices.
