Your Signal Upgrade: Precision for Long Distances

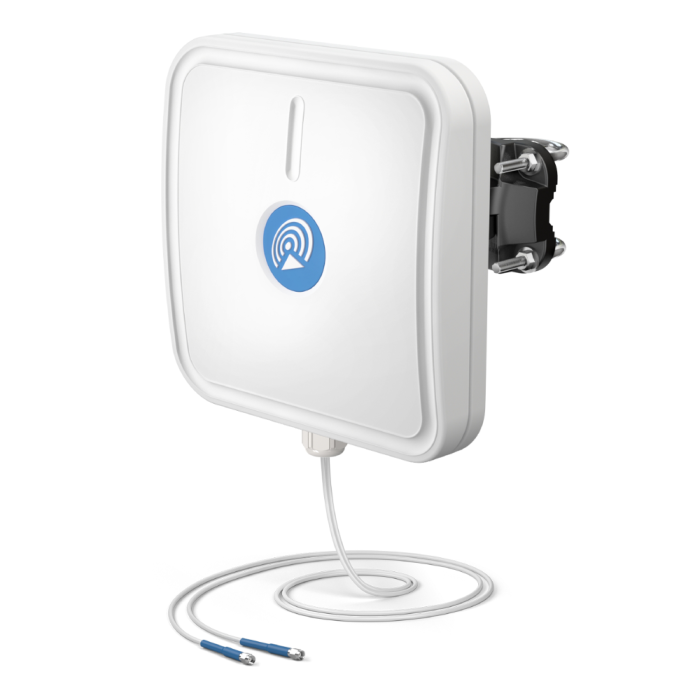

The QuWireless 14HV-30-2 is no ordinary Antenna – it's a specialized tool for your Network. With a high gain of 14 dBi and a narrow beamwidth of just 30°, it bundles transmit and receive power extremely strongly. This is perfect for establishing a stable 2x2 MIMO Sector Antenna for Point-to-Point connection between two buildings or specifically providing a distant area like a warehouse or garden pavilion with high-speed WiFi. Interference from neighboring networks is effectively filtered out.
Built for Eternity: Weatherproof IP68 WiFi Antenna
Whether it's biting cold, scorching heat, dust, or heavy rain – this antenna stands strong. The housing made of high-quality ABS plastic is IP67/IP68 certified, making it absolutely dust and waterproof. The extreme operating temperature range of -40°C to +80°C makes it the first choice for demanding outdoor applications and tough industrial environments. Rely on a permanently stable connection, no matter what the weather throws at you.
Maximum Performance with 2x2 MIMO and WiFi 6E
Be one step ahead of the standard. This antenna not only supports the common 2.4 GHz and 5 GHz bands but also covers a frequency spectrum up to 7.125 GHz. This makes it an absolutely future-proof WiFi 6E Antenna with RP-SMA Connector, also ready for the upcoming WiFi 7 standard. The integrated 2x2 MIMO technology allows your WiFi Routers to send and receive two data streams simultaneously, drastically increasing the speed and reliability of your connection – a must for modern high-performance WiFi.
Easy Installation, Ready for Immediate Use
QuWireless has thought ahead: The 14HV-30-2 is delivered as a complete package. The two 70 cm long, weatherproof cables are permanently integrated and equipped with common RP-SMA connectors, so you can connect them directly to most WiFi Routers and WiFi Access Points with external antenna connections. The included mounting kit is flexibly designed for wall or mast mounting (up to 66 mm diameter) and allows for precise tilt of +/- 30° for perfect alignment.
Strengths & Notes at a Glance
- Pro: Extremely wide frequency spectrum (5.0 - 7.125 GHz) makes it future-proof for WiFi 6E and WiFi 7.
- Pro: Extremely robust IP67/IP68 housing and wide temperature range (-40°C to +80°C) for demanding environments.
- Pro: High gain of 14 dBi and narrow 30° beam for focused, low-interference connections over long distances.
- Pro: Complete package with integrated cables and flexible mounting kit for quick commissioning.
- Note: The narrow beamwidth requires very precise and careful alignment with the counterpart.
- Note: While the permanently integrated cables offer weather protection, they limit flexibility in Cable length.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | 14HV-30-2 |
| MPN: | S14HV.30.2RS |
| EAN: | 5905868603316 |
| Product Type: | External 2x2 MIMO Dual-Band WiFi Directional Antenna |
| Antenna Type: | Panel / Sector Directional Antenna |
| Frequency Range 1: | 2.4 - 2.5 GHz |
| Frequency Range 2: | 5.0 - 7.125 GHz |
| Antenna Gain: | 14 dBi (on both bands) |
| MIMO Technology: | 2x2 MIMO |
| Polarization: | Dual (Horizontal & Vertical) |
| Beamwidth (Horizontal): | 30° |
| Beamwidth (Vertical): | 30° |
| Supported WiFi Standards: | 802.11a/b/g/n/ac/ax (Wi-Fi 4, 5, 6, 6E) |
| Future-Proof: | Compatible with Wi-Fi 7 |
| VSWR: | < 2.0 |
| Impedance: | 50 Ohm |
| Port-to-Port Isolation: | > 25 dB |
| Front-to-Back Ratio (2.4 GHz): | > 20 dB |
| Front-to-Back Ratio (5.0 - 7.125 GHz): | > 25 dB |
| Maximum Input Power: | 50 Watt |
| DC Ground: | Yes |
| Connectors: | 2x RP-SMA Male |
| Cables: | 2x 70 cm LMR195 (permanently integrated) |
| Housing Material: | ABS Plastic |
| Protection Class: | IP67 / IP68 |
| Application Area: | Indoor & Outdoor |
| Operating Temperature: | -40°C to +80°C |
| Dimensions (Antenna only): | 27.2 cm x 27.6 cm x 9.6 cm |
| Weight (Antenna only): | 1.8 kg |
| Mounting Type: | Mast or Wall Mount |
| Supported Mast Diameter: | 25 mm - 66 mm |
| Bracket Adjustability: | +/- 30° Tilt |
Scope of Delivery
| 1 x QuWireless 14HV-30-2 Antenna with integrated cables |
| 1 x Complete Mounting Kit (Polyamide/Fiberglass, galvanized steel U-bolts) |
Frequently Asked Questions (FAQ)
Can I connect this WiFi Antenna directly to my regular home router to improve my WiFi in the garden?
Yes, you can! Provided your WiFi Router has external, screw-off Antennas with RP-SMA Coaxial Connectors. You simply unscrew two of the existing Antennas and connect the cables of the QuWireless WiFi Antenna to these connectors. Then precisely aim it at the garden area you want to cover to extend your Network.
What does '2x2 MIMO' mean, and do I need it for my setup?
2x2 MIMO means that your WiFi Antenna has two separate transmit and receive units. This allows your WiFi device to send and receive two data streams simultaneously. This ensures a noticeably higher data rate and a more stable connection, especially with modern standards like WiFi 6. For top performance, this is a crucial feature for your Network.
Is the WiFi antenna suitable for a point-to-point connection between two buildings?
Absolutely, it's ideal for exactly that. With 14 dBi gain and the highly focused signal beam, you can establish stable Network connections over medium to longer distances. For the best result, you need two of these WiFi Antennas, which you align precisely with each other.
The frequency range goes up to over 7 GHz. Can I even use that with my current WiFi 5 or WiFi 6 Router?
Frequencies above 6 GHz are intended for the WiFi 6E standard. While your current WiFi 5 or WiFi 6 Router cannot use this range, the WiFi antenna works perfectly for the 2.4 GHz Antennas and 5 GHz Antennas bands that your router uses. So you are buying a future-proof solution that will remain fully compatible with your next Router upgrade.
The beamwidth is only 30°. How can I imagine the coverage at 50 meters distance?
Great question! With a 30° angle, at 50 meters distance, you'll have an illuminated area that's approximately 27 meters wide. This is perfect for specifically covering a certain area like your patio, a warehouse, or an opposite building, without unnecessarily scattering the WiFi signal.
Does the antenna have built-in surge protection, for example, against lightning strikes?
The WiFi antenna features DC grounding, which provides basic protection. However, for a professional and absolutely safe outdoor installation, we strongly recommend that you connect an additional Lightning Protection adapter (surge protector) between the Antenna Cables and your Router.
