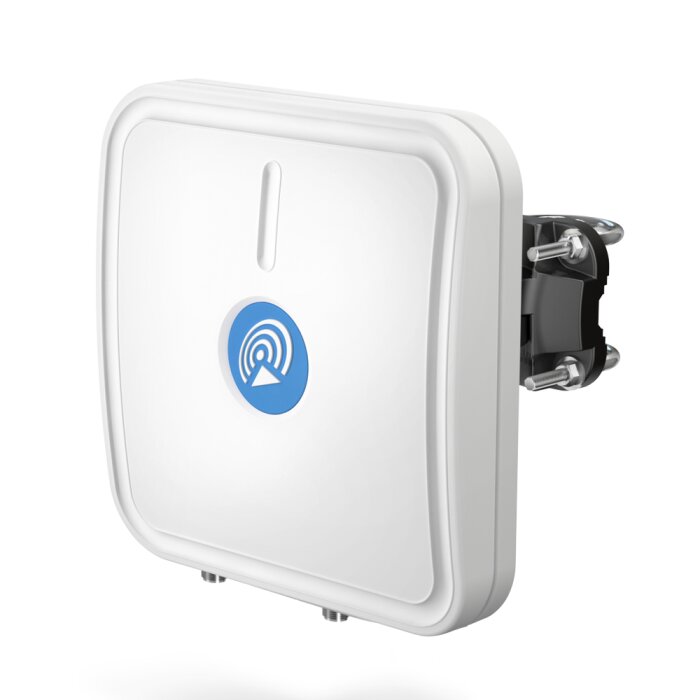

QuWireless 15V-35-2NF - 2x2 WiFi Panel Antenna, 15dBi, 802.11ac / WiFi 6
The QuSector 15V-35-2 NF (S15V.35.2NF) from QuWireless is a high-performance 2x2 MIMO WiFi directional antenna. This antenna operates in both the 2.4 GHz frequency band and the 5 to 7 GHz frequency range, offering an impressive gain of up to 15dBi. Thanks to its wide frequency coverage, this WiFi antenna can be used for the following WiFi standards: 802.11a/b/g/n/ac/ax, WiFi 6, and WiFi 6E.

With a gain of up to 15dBi, the 2x2 MIMO directional antenna is well-suited for medium to long-distance connections. This model is a future-proof solution, supporting both WiFi 6E and even WiFi 7.

The high-quality injection-molded housing with an IP67 rating allows for implementation both indoors and outdoors as a WiFi outdoor antenna. The wide frequency range (2.4–2.5 GHz and 5–7 GHz) enables the selection of the most suitable frequency for optimal operation.

This version of the QuSector 15V-35-2 NF (S15V.35.2NF) is equipped with two N female sockets. Suitable coaxial antenna cabkes are available in our webshop. If you require a variant with N male, RP-SMA or RP-TNC connectors, feel free to contact us.

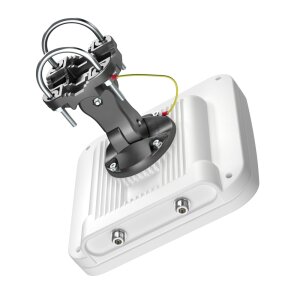

The antenna is designed for mast or wall mounting. Corresponding mounting accessories are included in the delivery.

114,99 €
incl. 19% VAT , plus shipping costs
Available immediately
Deliverydate: 17.11.2025 (DE - int. shipments may differ)
Only 1 available

Technical Specifications:

Manufacturer / Model:QuWireless / QuSector 15V-35-2 NF (S15V.35.2NF)
Antenna Type:2x2 MIMO WiFi Directional Antenna
Frequency Range:2.4 - 2.5 GHz
5 - 7.125 GHz
Supported Standards:802.11 a/b/g/n/ac/ax, WiFi 6, WiFi 6E, WiFi 7
Gain:11dBi
15dBi
VSWR:max. 2
Polarization:Vertical
Beamwidth:2.4 GHz: 80° H / 40° V
5-7 GHz: 35° H / 25° V
Impedance:50 Ohms
Cable:2 x N female socket
Material:ABS
Application Area:Indoor and Outdoor (IP67)
Operating Temperature:-40° to 80°C
Dimensions:27.2 x 27.6 x 9.6 cm
Weight:1.8 kg


Package Contents:

1 x QuWireless 15V-35-2 NF (S15HV.35.2NF) Antenna
1 x Mounting Accessories
