Ready for the Future: Your Upgrade to Wi-Fi 7
Don't wait for the future – be a step ahead. The QuWireless QuOmni 7V-4 is more than just an Antenna; it's an investment in the next generation of connectivity. By covering the frequency band up to 7.2 GHz, it's one of the few Antennas on the market that is already perfectly hardware-ready for Wi-Fi 7. This means you're well-equipped for the extremely wide 320 MHz channels and the associated speed and efficiency advantages. Whether you're upgrading your Wi-Fi 6E Network today or switching to Wi-Fi 7 tomorrow – this Antenna can handle it all.
4x4 MIMO Power for Superior 360° Coverage
In environments where many devices are online simultaneously, 4x4 MIMO technology unleashes its full strength. Four independent data streams ensure drastically improved connection quality, less latency, and noticeably higher data throughput. As a powerful WiFi Omni-Directional Antenna, the QuOmni distributes the signal evenly in a 360° radius. Perfect for centrally supplying warehouses, public spaces, campsites, or large company premises where reliable coverage in all directions is required.
Built to Last: IP68 Protection for Any Location
Wind, rain, snow, or extreme temperatures? No problem for the QuOmni 7V-4. With its extremely robust construction and IP68 certification, it is fully protected against dust ingress and even against continuous immersion in water. The wide operating temperature range of -40°C to +80°C makes it the ideal Outdoor Antenna for demanding industrial environments, maritime applications, or any other location where reliability is paramount.
Flexible, Simple, and Immediately Ready for Use

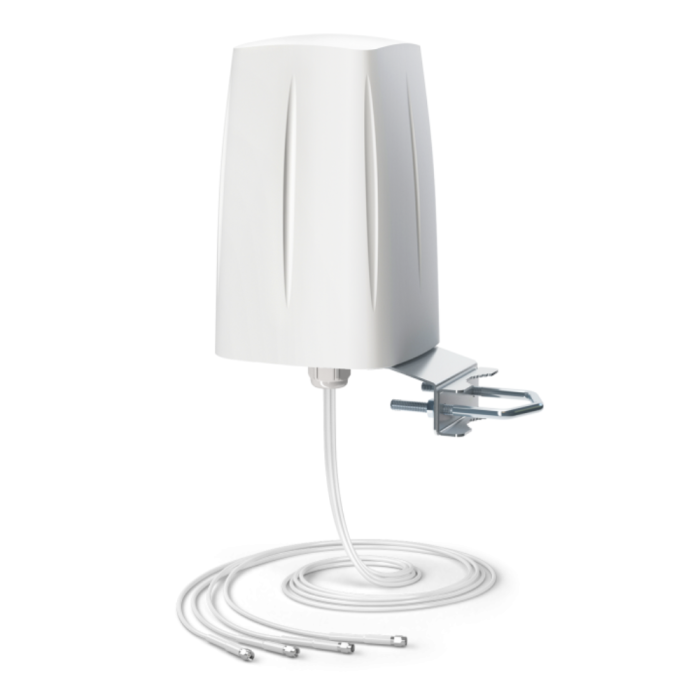

Installing the Antenna is incredibly easy. Thanks to the included Antenna Mounting Accessories, you can flexibly attach it to a mast or a wall. The four integrated, 70 cm long cables with RP-SMA connectors allow for direct connection to compatible WiFi Routers or WiFi Access Points. This way, you can quickly create a powerful central hotspot for your Network and significantly extend your WiFi range.
Strengths & Notes at a Glance
- Pro: Ready for the future with support for Wi-Fi 6, 6E, and even Wi-Fi 7.
- Pro: Maximum performance and stability through 4x4 MIMO technology.
- Pro: Extremely robust and weatherproof thanks to IP68 protection and wide temperature range.
- Pro: True 360° omni-directional coverage for large, open areas.
- Note: Not suitable for targeted point-to-point connections, as the signal disperses in all directions.
- Note: The fixed 70 cm cables may require extensions for longer distances to the Router.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuOmni 7V-4 |
| Manufacturer Part Number (MPN): | O7V.4RS |
| EAN: | 5905868601169 |
| Antenna Type: | 4x4 MIMO Omni-Directional Antenna |
| Frequency Range 1: | 2.4 - 2.5 GHz |
| Frequency Range 2: | 5.0 - 7.2 GHz |
| Supported WiFi Standards: | 802.11a/b/g/n/ac/ax, Wi-Fi 6, Wi-Fi 6E, Wi-Fi 7 |
| Antenna Gain (2.4 GHz): | 6 dBi |
| Antenna Gain (5.0 - 7.2 GHz): | 7.5 dBi |
| MIMO Technology: | 4x4 MIMO |
| Polarization: | Vertical |
| Beamwidth (Horizontal): | 360° |
| Beamwidth (Vertical): | 25° |
| Voltage Standing Wave Ratio (VSWR): | < 1.50 (typical), max. < 2.00 |
| Impedance: | 50 Ohm |
| Connectors: | 4 x RP-SMA Male |
| Integrated Cables: | 4 x 70 cm |
| Maximum Input Power: | 50 Watt |
| DC Ground: | Yes |
| Housing Material: | ABS Plastic |
| Protection Class: | IP68 |
| Application Area: | Indoor & Outdoor |
| Operating Temperature: | -40°C to +80°C |
| Dimensions (L x B x H): | 16 x 16 x 24 cm |
| Weight: | 1.5 kg |
| Mounting: | Mast / Wall Mounting |
Scope of Delivery
| 1 x QuWireless QuOmni 7V-4 Antenna (O7V.4RS) |
| 1 x Mounting Accessories for mast and wall mounting |
Frequently Asked Questions (FAQ)
Can you connect this antenna directly to your laptop for better WiFi?
No, you can't connect it directly. You need to connect the antenna to a WiFi Router or WiFi Access Point that has four compatible RP-SMA connectors. The antenna itself is a passive component and improves your router's signal, not directly your laptop's.
What does 'omnidirectional' mean, and is the antenna suitable for my home?
Omnidirectional means that the antenna radiates your WiFi signal evenly like a sphere in all horizontal directions (360 degrees). This is perfect for providing coverage to a central area, such as your garden or a large, open hall, from a single point. For a typical apartment, it's often oversized, unless you want to place it centrally to cover multiple floors or a large outdoor area.
Is the antenna compatible with my router?
Compatibility doesn't depend on the router brand, but on the connectors. Your Router or Access Point must have four external RP-SMA antenna connectors. It's best to check your device's datasheet before purchasing the antenna.
Does the antenna really support Wi-Fi 7 already?
Yes, absolutely! The antenna covers the frequency range up to 7.2 GHz, which enables the use of the 320 MHz channels designated for Wi-Fi 7 in the 6 GHz band. So, it's perfectly prepared hardware-wise for the next WiFi standard, securing you a future-proof investment.
Do I really need to connect all four cables for 4x4 MIMO functionality?
Yes, absolutely! To utilize the full performance, higher data throughput, and better stability of 4x4 MIMO, you must connect all four Antenna Cables to the corresponding connectors on your Router. This is the only way to get the maximum out of your setup.
The antenna has IP68 protection class. Can I operate it underwater with that?
Theoretically yes, IP68 certification means protection against continuous submersion. In practice, however, it is designed to easily withstand extreme weather conditions like heavy rain, snow, and dust. Underwater operation is naturally not practical for WiFi signals, but you can be sure that it will brave even the harshest weather.
