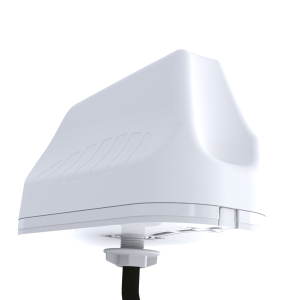

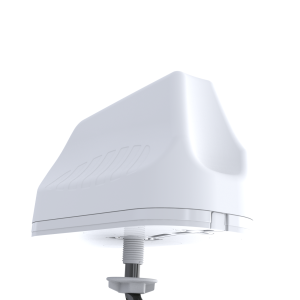

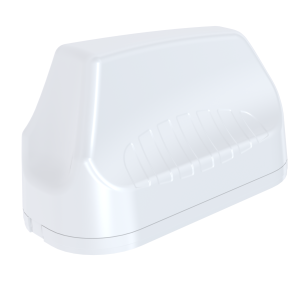

The Poynting MIMO-3-17 is a 7-in-1 high-performance, multi-band antenna in a single housing. The antenna contains four cellular antennas, two dual-band WiFi antennas, and a GPS/GLONASS antenna. The four cellular MIMO antennas cover the current bands from 410 MHz to 3800 MHz, including the newly emerging 4G and 5G frequency spectrum. The ultra-wideband performance of the antenna allows it to be used across different operators and technologies and is ready for future cellular technologies.
The antenna offers two separate dual-band WiFi antennas that simultaneously cover the 2.4 GHz and 5 GHz bands and support 802.11n and 802.11ac/ax with 2x2 MIMO. The seventh antenna is a high-performance active GPS/GLONASS system that operates at temperatures as low as -40°C.
The Poynting MIMO-3-17 surpasses the performance of many competitors because attention has been paid to the design of this high-performance antenna. The radiation patterns of all radiating elements offer an excellent balance between omnidirectional behavior, pattern diversity and good radiation properties at the desired elevation, which is often overlooked with such a small antenna.
Application Areas
- Private Vehicles, Campers, Caravans, RVs
- Transport Vehicles (Buses, Utility & Public Safety)
- Agricultural Machinery
- Small boats, yachts near coastlines or inner waters
- Industrial factory automation, robotic machinery and other M2M systems
- Mining Vehicles & Machinery communications, telemetry and automation (M2M & IoT)
- Warehouses & Logistic systems
Connection cable:
- 4 x 2m cable with SMA connector (4G / 5G)
- 2 x 2m cable with RP-SMA connector (WiFi)
- 1 x 2m cable with SMA connector (GPS)
Technical data:
| Manufacturer / Model: | Poynting / A-MIMO-0003-V2-17 |
| Antenna type: | Omnidirectional antenna |
| Frequency range 5G / 4G: | 410 - 470 MHz, 698 - 960 MHz, 1700 - 2700 MHz, 3400 - 3800 MHz |
| Gain 5G / 4G: | max. 6.2dBi |
| Frequency range WiFi: | 2400-2500 MHz, 5000-6000 MHz |
| WiFi gain: | 7dBi |
| GPS frequency range: | 1575.42 - 1600 MHz |
| GPS gain: | 21 +-2 dB |
| Cable / connector: | 4 x 2m cable / SMA plug (4G) 2 x 2m cable / RP-SMA plug (WiFi) 1 x 2m cable / SMA plug (GPS) |
| Impedance: | 50 Ohm |
| Area of application: | Indoor and outdoor |
| IP protection class: | IP 68 (excluding cable outlet) |
| Operating temperature: | -40° to 80° C |
| Humidity: | up to 95% |
| Dimensions: | 253 mm x 128 mm x 144 mm |
| Color: | White |
Scope of delivery:

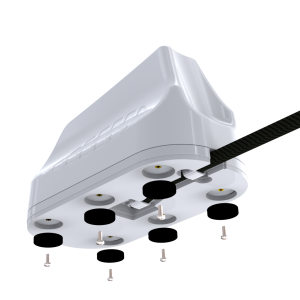

| 1 x Poynting MIMO-3-17 antenna, white - including mounting accessories |
