The 868 MHz (EU868) LoRa antenna has a robust, durable housing and a performance gain of 6dBi. The antenna is specially designed for the frequency range of 860 - 880 MHz and offers a good omnidirectional illumination. Due to the vertical signal opening angle of 26°, the antenna is particularly suitable for mid-high positioning and ensures area-wide illumination with high range. The antenna is suitable for applications such as helium mining and is compatible with all available miners such as Lora, LoRaWAN, Sigfox, XBee, RFID. Z WAVE compatible.
The omni antenna is made of robust, weatherproof and UV-resistant fiberglass. Thus, this model can be used as an outdoor antenna and defies all weather conditions. The antenna is designed for mounting on a mast or a wall bracket. Appropriate mounting accessories are included in the scope of delivery.
Technical Data:
| Manufacturer / Model: | Allnet / ANT-868-6dbi-OMNI |
| Type of Antenna: | Omni Antenna |
| Gain: | 6dBi |
| Impedance: | 50 Ohm |
| Frequency: | 860 - 880 MHz |
| VSWR: | max. 1.5 |
| Polarisation: | Vertical (Linear) |

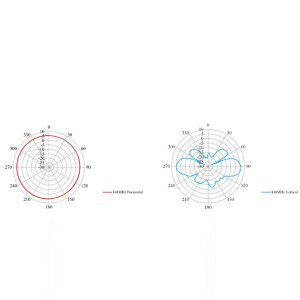

| Beam width: | 360° Horizontal 26° Vertical |
| Connector: | N female |
| Appliance: | In- and Outdoor |
| Dimensions: | 80cm x 2.0cm |
| Color: | Grey / White |
| Operating Temperature: | -45 bis +75°C |
| Max Windload: | 180 km/h |
| Weight: | 0.7kg |
Scope of delivery

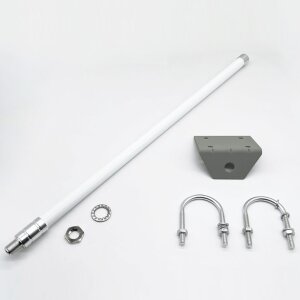

| 1 x 868MHz LoRa Omni Antenna, 6dBi |
| 1 x Mounting kit |
