Your Upgrade for Uncompromising WiFi: The Cudy AP3000
Forget everything you knew about slow or unstable WiFi. The Cudy AP3000 is not just another WiFi Access Point, but your gateway to a new era of connectivity. With the latest WiFi 6 (802.11ax) standard and impressive AX3000 Dual-Band speeds of up to 3000 Mbit/s (2402 Mbit/s on 5 GHz and 574 Mbit/s on 2.4 GHz), it delivers the performance you need for streaming, gaming, and demanding business applications. Imagine how smoothly your video conferences run or how fast your downloads are – the AP3000 makes it possible.
Limitless Connectivity for Your Business
In high-density environments, such as offices, hotels, or educational institutions, the Cudy AP3000 is in its element. It effortlessly supports 150 to 512 simultaneous devices and uses technologies like OFDMA, MU-MIMO, and Beamforming to guarantee an optimal connection for every client. Thanks to 802.11k/v Mesh WiFi technology, it also enables seamless roaming. This means for you: uninterrupted WiFi telephony or live streaming, even when you move through larger rooms. With the 2.5G Multi-Gigabit LAN Port, you get the maximum out of your wired infrastructure and ensure that your Network is prepared for all requirements.
Installation Made Easy: Flexibility Meets Performance
The installation of the Cudy AP3000 is extremely simple and flexible. Whether ceiling mounting or wall mounting – you decide where the Access Point fits best. Support for Power over Ethernet (PoE) according to 802.3at/af, 48-57V Passive PoE, and even 12-48V DC input means you only need a single Ethernet cable for data and power. This not only saves you time and effort in Cabling but also additional power outlets. This way, you can place the Access Point exactly where it offers the best coverage, without compromising on power supply.
Smart Features for an Intelligent Network
The Cudy AP3000 is not only powerful but also intelligent. It supports Cudy Mesh WiFi for seamless coverage and offers you the option for central AP management via a Cudy AP Controller. This enables you to efficiently configure and maintain up to 200 WiFi Access Points. This way, you always keep an overview of your entire Network and can adjust settings in an instant. Some advanced features like Captive Portal or Band Steering require a Cudy AP Controller or a Cudy WiFi Router/VPN Router as a gateway, but the basic management is already impressive.
Strengths & Notes at a Glance
- Pro: Offers high AX3000 WiFi 6 performance with up to 3000 Mbit/s and a 2.5G Multi-Gigabit LAN Port for extremely fast connections.
- Pro: Enables flexible and easy installation thanks to PoE support (802.3at/af, Passive PoE) and options for ceiling mounting or wall mounting.
- Pro: Supports Cudy Mesh WiFi for seamless coverage and offers central AP management functions for up to 200 Access Points.
- Note: The DC power supply is usually not included, which may incur additional costs if no PoE infrastructure or PoE Injectors / Power Supplies are available.
- Note: Some advanced features like Captive Portal or Band Steering require a Cudy AP Controller or a Cudy WiFi Router/VPN Router as a gateway.
Specifications & Features
| Manufacturer: | Cudy |
| Model: | AP3000 |
| Product Type: | WiFi Access Point |
| WiFi Standard: | Wi-Fi 6 (802.11ax/ac/n/g/b/a) |
| WiFi Speed: | AX3000 (2402 Mbit/s @ 5 GHz, 574 Mbit/s @ 2.4 GHz) |
| Frequency Bands: | Dual-Band (2.4 GHz & 5 GHz) |

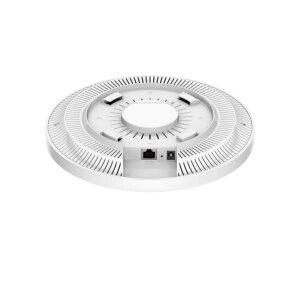

| Ethernet Ports: | 1x 2.5G Multi-Gigabit RJ45 Port (PoE In) |
| CPU: | 1.3 GHz Dual-Core (MT7981BA) |
| RAM: | 512 MB DDR4 |
| Flash/ROM: | 256 MB NAND |
| WiFi Streams: | 3T3R (5 GHz), 2T2R (2.4 GHz) |
| Antennas: | 5x Internal |
| Antenna Gain: | 5.6 dBi (5 GHz), 4.8 dBi (2.4 GHz) |
| FEM (Front-End Module): | 3x High-Power (5 GHz), 2x High-Power (2.4 GHz) |
| PoE Support: | 802.3at/af PoE, Passive PoE (48-57V⎓) |
| DC Power Supply: | 12V⎓1.5A |
| Max. Connected Devices: | 512 (recommended: 150-200) |
| WiFi Encryption: | WPA/WPA2/WPA3 |
| Range (Max): | 130 m² (indoor), 200 m (outdoor) |
| Mounting Options: | Ceiling Mounting, Wall Mounting |
| Dimensions (W x D x H): | approx. 232 x 232 x 57.1 mm |
| Operating Temperature: | 0 ℃ ~ 40 ℃ |
| Management: | Cudy AP Controller (up to 200 APs) |

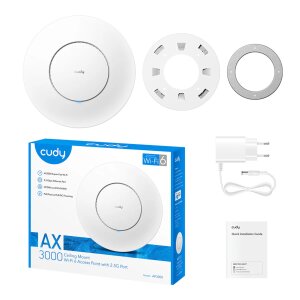

Scope of Delivery
| 1 x Cudy AP3000 (AX3000 Dual-Band WiFi 6 Access Point) |

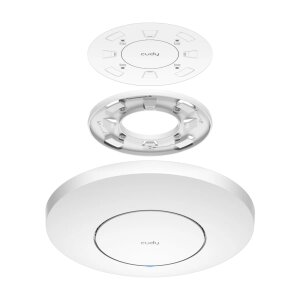

| 1 x Mounting Kit |
| 1 x Installation Guide (Note: PoE Adapter/DC Power Supply often optional) |
Frequently Asked Questions (FAQ)
What does AX3000 mean for the Cudy AP3000?
AX3000 stands for the maximum theoretical total speed of your Access Point of approximately 3000 Mbit/s. This is composed of 2402 Mbit/s in the 5 GHz band and 574 Mbit/s in the 2.4 GHz band, based on the latest Wi-Fi 6 (802.11ax) standard.
What installation options does the Cudy AP3000 offer?
Your Cudy AP3000 is designed for ceiling or wall mounting and can be flexibly installed in various environments.
Does the Cudy AP3000 require a separate power supply?
Your Cudy AP3000 can be powered via Power over Ethernet (PoE) with 802.3at/af or passive PoE, as well as via a 12V DC port. However, a DC power supply is often not included.
Does the Cudy AP3000 support Mesh Wi-Fi?
Yes, your Cudy AP3000 supports Cudy Mesh Wi-Fi with 802.11k/v for seamless roaming, which allows you an uninterrupted transition between Access Points.
How many devices can the Cudy AP3000 connect simultaneously?
Your Cudy AP3000 can connect up to 150-200 recommended devices and a maximum of up to 512 devices simultaneously, thanks to technologies like MU-MIMO and OFDMA.
What advantages does the 2.5G LAN Port of the Cudy AP3000 offer?
The 2.5G Multi-Gigabit LAN Port of your Cudy AP3000 increases overall internet throughput and allows more devices to stream simultaneously without buffering, even in complex environments.
