The Cyberbajt H-LINE 15/90 WiFi sector antenna is designed for the 2.4 GHz frequency band and supports all established WiFi standards (IEEE 802.11 b/g/n).
Sector antennas are characteristically constructed for serving the WiFi signal to many clients within one sector (for examle 120° area). It will be typically used on base stations (Access Point, Hot-Spot Systems).
This antenna has a gain of 15dBi and a horizotal beamwidth of 90° and a vertical beamwidth of 15°.
The enclosure of the antenna is made of solid plastic. The robust, light weight and UV resistant construction is weatherproof. Due to this, the antenna can be used for in- and outdoor appliances.

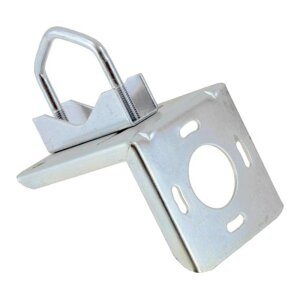

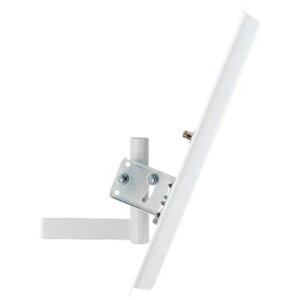

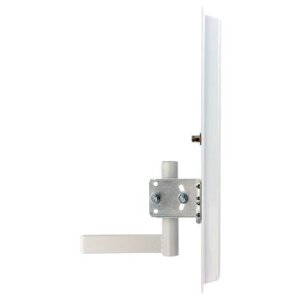

The antenna is designed for mast/pole or wall handle installation (see mounting hardware). A mounting kit (angle bracket and u-clamp for 30-50mm diameter handles) is included.
The antenna has a N female connector. Suitable connection cables are also available at our webshop.
Technical Data:
| Manufacturer: |
Cyberbajt |
| Model: |
H-LINE 15/90 |
| Type of Antenna: |
Sector Antenna |
| Gain: |
2.4GHz: 15dBi |
| Impedance: |
50 Ohm |
| Frequency: |
2.4-2.5 MHz (IEEE802.11 b/g/n) |
| VSWR: |
max. 1.5 |
| Polarisation: |
Horizontal (Linear) |
| Beam width: |
Horizontal: 2.4 GHz - 90° for -3dB
Vertical: 2.4 GHz - 15° for -3dB |
| Connector: |
N female |
| Appliance: |
In- and Outdoor |
| Dimensions: |
Package: 60 x 14 x 11 cm
Antenna: 56 x 13,8 x 4cm |
| Weight: |
With Mounting Kit: 1.0kg
Solo: 0.6kg |
| Color: |
Grey |
Scope of delivery
| 1 x Cyberbajt H-LINE 15/90 Sector Antenna |
| 1 x Mounting kit with angle bracket and u-clamp for 30 - 50mm handles |
