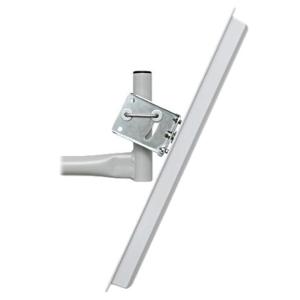

Cyberbajt H-LINE series are the professional WiFi antennas designed for the construction of the base stations with large capacities. Antennas are capable of tilting, and thus can be used in the sector of radio cells, with a strong, focused signal. In the urban poor, high gain and beam allows coverage of large areas and providing users with a good quality signal at a distance of many miles. High quality housing allows operation in harsh weather conditions while maintaining the highest performance.
This antenna has a gain of 14dBi and a horizotal beamwidth of 120°.
The enclosure of the antenna is made of solid plastic and stainless steel. The robust and light weight resistant construction is weatherproof. Due to this, the antenna can be used for in- and outdoor appliances.

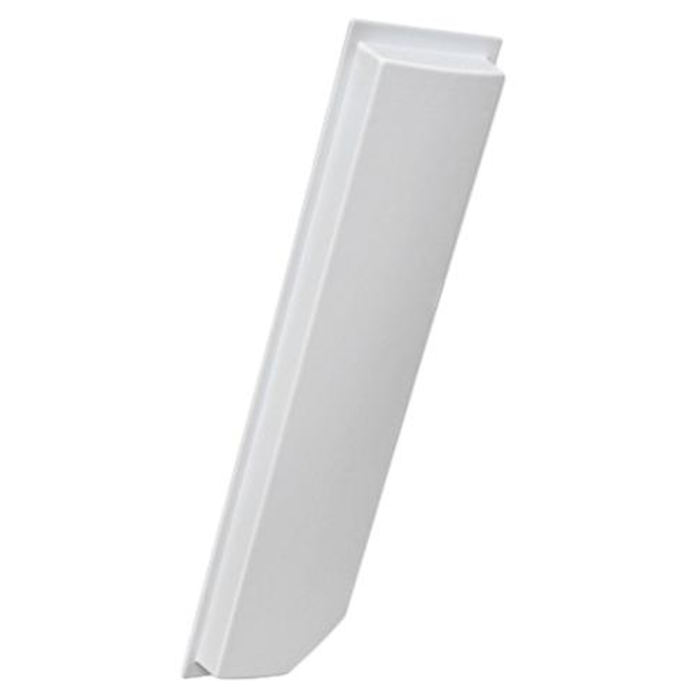

The H-LINE 14/120 is a 2.4GHz WiFi sector antenna from Cyberbajt and supports all common Wi-Fi standards within the frequency bands IEEE 802.11 b/g/n. With a power gain of 14dBi and a signal opening angle of 120°, the antenna is designed for long distances on large areas.
The antenna can be connected / operated on all WiFi devices that have an external antenna connection. The antenna is connected to your WiFi device via a coaxial cable. Corresponding cables can be found in the Antenna Cables category. If you have difficulties with the right connector.
The housing of the H-Line 14/120 is made of robust, weatherproof and UV-resistant plastic. The back of the antenna is made of stainless steel. The antenna to be used outdoors and defies all weather conditions.
With the included clamp (30mm - 50mm, included), the antenna can be easily and safely attached to a pole or wall mount.
Technical Data:
| Manufacturer: | Cyberbajt |
| Model: | H-LINE 14/120 |
| Type of Antenna: | Sector Antenna |
| Gain: | 14dBi |
| Frequency: | 2400 - 2500 MHz (IEEE 802.11 b/g/n) |
| VSWR: | max. 1.3 |
| Polarisation: | Horizontal (Linear) |
| Beam width: | 120° Horizontal 16° Vertical |
| Impedance: | 50 Ohm |
| Connector: | N female |
| Appliance: | In- and Outdoor |
| Max. wind load: | 56 m/s |
| DC-Ground: | Yes |
| Dimensions: | 56.0 x 13.8 x 4.0 cm |
| Weight: | 1.09kg |
| Color: | White |
Scope of delivery
| 1 x Cyberbajt H-LINE 14/120 Sector Antenna |

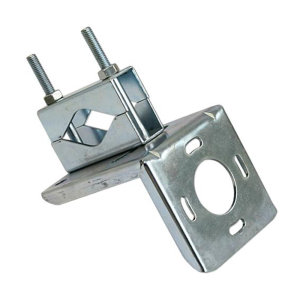

| 1 x Mounting kit with angle bracket and u-clamp for 38-51mm handles |
