End Cable Stress: The 90° Solution for Your Installation

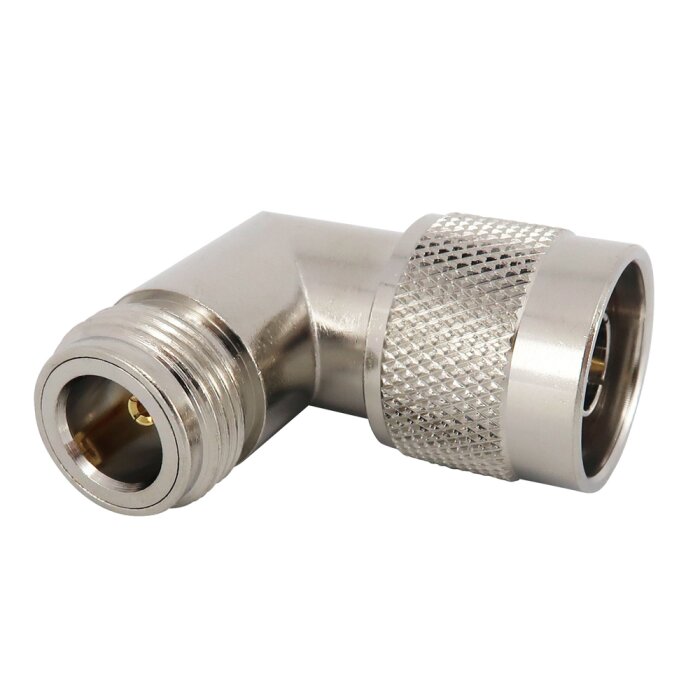

Anyone who has ever worked with rigid Coaxial cables knows the struggle. You force the Cable into an unnatural bend just to connect it to your device's jack. The result: permanent stress on the solder joints and the risk of Cable breakage. With this robust 90-degree N-connector, that's a thing of the past. It screws directly onto the device jack and routes the connection at a perfect right angle. Your Coaxial Cable can now be connected relaxed and without mechanical tension, significantly increasing the lifespan of all your equipment.
Perfect Cabling, even when space is tight
In control cabinets, weatherproof Antenna Enclosures, or when mounting Routers directly on the wall, space is often at a premium. A straight protruding cable can quickly become a problem or make installation impossible. The space-saving N-Adapter is the game-changer here. Its angled design allows for clean and professional Cabling that runs parallel to the mounting surface. This not only looks tidier but also saves you valuable space.
Maximum Performance up to 11 GHz: Uncompromising Signal Quality
An adapter must never degrade signal quality. That's why this model was developed for the highest demands. With a frequency range extending from DC to 11 GHz, it is perfectly equipped for all modern wireless technologies like 5G, 4G Advanced, and Dual-Band / WiFi 6E / WiFi 7 Antennas. The extremely low Voltage Standing Wave Ratio (VSWR ≤ 1.25) and a barely measurable insertion loss of approx. 0.14 dB ensure that your signal is transmitted almost loss-free. This RF Adapter 50 Ohm for 5G Antenna installations is the professional choice for a stable and fast connection.
Built for Eternity: IP67 Protection for Outdoor Use
This adapter isn't just for your desk. The solid nickel-plated brass housing, high-quality PTFE dielectric, and gold-plated inner conductors are designed for tough continuous use. When securely screwed in, the adapter achieves IP67 protection, making it dust-tight and resistant to temporary immersion in water. Whether rain, snow, or extreme temperatures from -55 °C to +155 °C – this weatherproof 90-degree N-angle adapter guarantees reliable function for years to come.
Strengths & Notes at a Glance
- Pro: Significantly reduces mechanical stress on Coaxial cables and device jacks.
- Pro: Enables clean, space-saving Cabling in confined environments.
- Pro: Excellent RF properties (up to 11 GHz, low VSWR) for lossless transmission.
- Pro: Extremely robust and weatherproof (IP67) for continuous outdoor use.
- Note: Every additional plug connection is a potential, albeit minimal, source of signal reflection.
- Note: The leverage effect of the adapter should be considered in installations with strong vibrations.
Specifications & Features
| Product Type: | RF Angle Adapter (90°) |
| HAN / MPN: | N-13-11-TGN |
| EAN: | 4251028601465 |
| Connector A: | N-Male |
| Connector B: | N-Female |
| Impedance: | 50 Ohm |
| Frequency Range: | DC to 11 GHz |
| VSWR (Voltage Standing Wave Ratio): | ≤ 1.25 @ 6 GHz |
| Insertion Loss: | approx. 0.14 dB @ 6 GHz |
| Shielding Effectiveness: | ≥ 90 dB @ 3 GHz |
| Maximum Operating Voltage: | 1000 V (rms) |
| Dielectric Withstanding Voltage: | 2500 V (rms) |
| Insulation Resistance: | ≥ 5000 MΩ |
| Contact Resistance (Inner Conductor): | ≤ 1 mΩ |
| Contact Resistance (Outer Conductor): | ≤ 1 mΩ |
| Housing Material: | Brass |
| Housing Surface Finish: | Nickel-plated |
| Inner Conductor/Contact Material: | Brass, gold-plated |
| Dielectric (Insulator): | PTFE (Polytetrafluoroethylene) |
| Sealing Material (O-Ring): | Silicone Rubber |
| Operating Temperature Range: | -55 °C to +155 °C |
| Protection Class (IP-Rating): | IP67 (when screwed in) |
| Mechanical Life: | ≥ 500 Mating Cycles |
| Weight: | approx. 48 g |
Scope of Delivery
| 1 x Coaxial Adapter - N Male to N Female, 90° Angled |
Frequently Asked Questions (FAQ)
Can you use this adapter for your 5G outdoor Antenna?
Will you lose signal strength for your WiFi with this adapter?
Technically, every adapter has a minimal insertion loss. However, with this model, it's only about 0.14 dB, which is extremely low. In practice, this loss is so negligible that you won't notice any perceptible difference in signal strength or speed for your WiFi applications (whether 2.4 GHz Components, 5 GHz Components, or 6 GHz).
What does 'PTFE' stand for in the insulator, and is it important for you?
PTFE is a high-quality plastic you might know as Teflon®. It has excellent electrical insulation properties at high frequencies and is extremely temperature resistant. For you, this simply means the adapter ensures clean signal transmission without interference and is super durable, whether exposed to strong sunlight or icy cold.
Does the adapter fit every N-connector?
Yes, the adapter uses globally standardized N-connectors with 50 Ohm impedance. So, you can easily connect it to any standard N-jack or N-plug, like those you find on professional Antennas, Routers, or measuring devices.
Why is the center contact gold-plated? Is it just for aesthetics?
No, that's pure function for your signal! Gold is an excellent electrical conductor and extremely corrosion-resistant. The gold plating of the center contact ensures consistently low contact resistance and guarantees you lossless signal transmission throughout the adapter's lifespan.
Your Antenna cables are very rigid. Does this adapter help you connect it to your Router?
