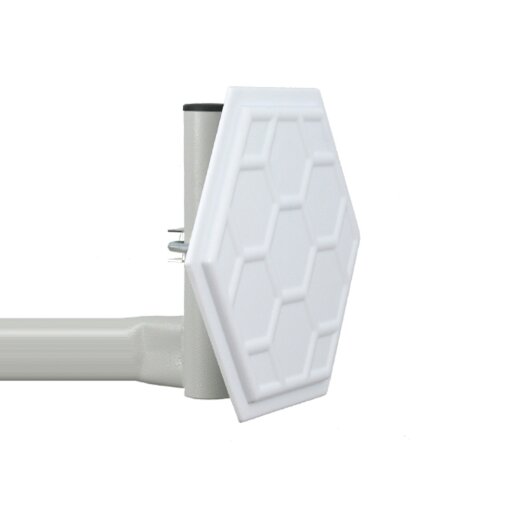

Stable WiFi Bridges thanks to 2x2 MIMO Technology
The Cyberbajt GigaEter 13 Duo is more than just an Antenna – it is the foundation for your reliable Outdoor WiFi connection. Through intelligent 2x2 MIMO technology and dual polarization (horizontal and vertical), two separate data streams are transmitted simultaneously. The result: significantly higher data rates and a more robust connection that remains stable even with reflections and obstacles. This MIMO Antenna is the perfect choice to unleash the full performance of your 802.11n or 802.11ac WiFi Access Point, optimizing your Network.
Built for Outdoor Use: Robust and Weatherproof
This Antenna was specifically designed for permanent outdoor use. The housing is made of durable, UV-resistant plastic that withstands wind and weather. With an impressive wind load resistance of up to 56 m/s, you can be sure that your connection will remain stable even in stormy conditions. The included bracket allows for easy and secure mounting on masts or walls, part of our comprehensive Mounting Systems and Antenna Mounting Accessories, so you can get started right away.
Perfect for Point-to-Point Connections over Short Distances
With an antenna gain of 13 dBi and a focused beamwidth of 33°, the GigaEter 13 Duo is the ideal 5 GHz directional radio antenna for short distances. It is excellent for networking two buildings on your property, connecting a surveillance IP Camera in the garden, or specifically providing WiFi to a certain outdoor area. Note that precise alignment with the opposite station is crucial for maximum performance. As a specialized 5 GHz Antenna, it ensures interference-free transmission away from the crowded 2.4 GHz band, improving your Network.
Strengths & Notes at a Glance
- Pro: Efficient 2x2 MIMO technology with dual polarization doubles potential data throughput and increases stability.
- Pro: Extremely weather-resistant and UV-resistant housing for a long Service life in outdoor use.
- Pro: Good signal focus (13 dBi) for stable WiFi bridges over short distances.
- Pro: Very high port separation (>30 dB) minimizes mutual interference and ensures MIMO performance.
- Note: The 13 dBi antenna gain is designed for short distances, not for connections over several kilometers.
- Note: As a directional Antenna, it requires precise alignment with the opposite station, which makes installation more demanding.
Specifications & Features
| Manufacturer: | Cyberbajt |
| Model: | GigaEter 13 Duo |
| Manufacturer Part Number (MPN): | GigaEter 13 Duo |
| EAN / GTIN: | 5907776046780 |
| Product Type: | Passive WiFi Directional Antenna |
| Antenna Type: | Panel Antenna |
| Application Area: | Outdoor |
| Purpose: | Point-to-Point (PtP), Point-to-Multipoint (PtMP) |
| Frequency Range: | 5.45 - 5.75 GHz |
| Supported WiFi Standards: | IEEE 802.11a, 802.11n, 802.11ac |
| Antenna Gain: | 13 dBi |
| Technology: | 2x2 MIMO |
| Polarization: | Dual-polarized (Linear: Horizontal & Vertical) |
| Impedance: | 50 Ohm |
| Standing Wave Ratio (VSWR): | max. 1.5:1 |
| Beamwidth (-3dB) Horizontal: | 33° |
| Beamwidth (-3dB) Vertical: | 33° |
| Port Separation: | >30 dB |

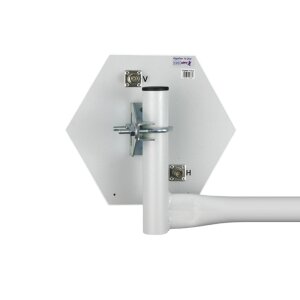

| Connectors: | 2 x N-female |
| Housing Material: | Weatherproof, UV-resistant plastic |
| Wind Load Resistance: | up to 56 m/s |
| Mounting Type: | Mast or Wall Mount |
| Compatible Mast Diameter: | 38 - 51 mm |
| Dimensions: | 270 x 230 x 12 mm |
| Weight (with bracket): | 653 g |
Scope of Delivery
| 1 x Cyberbajt GigaEter 13 Duo Antenna |
| 1 x Mast/Wall Mount for 38-51 mm Masts (Antenna Mounting Accessories) |
Frequently Asked Questions (FAQ)
Is the Cyberbajt GigaEter 13 Duo a complete outdoor WiFi Router?
No, it is exclusively a passive Antenna. It requires an external Router or WiFi Access Point with two Antenna connectors to send and receive a WiFi signal.
What does '2x2 MIMO' mean for this Antenna?
2x2 MIMO (Multiple-Input, Multiple-Output) means that the Antenna has two separate transmit and receive units. This enables the simultaneous transmission of two data streams, which significantly increases the speed and reliability of the WiFi connection compared to a simple Antenna (SISO).
What distance is this 13dBi Antenna suitable for?
The Antenna is designed for stable connections over short distances, typically in the range of a few hundred meters up to a few kilometers with optimal line-of-sight and in combination with a powerful transmit/receive device.
Can I use this Antenna for the 2.4 GHz WiFi band?
No, this Antenna is specifically developed for the 5 GHz frequency band (5.45 - 5.75 GHz). Using it in the 2.4 GHz band would lead to extremely poor performance.
Is the Mounting Systems material included?
Yes, a robust bracket including a pipe clamp for mounting on masts with a diameter of 38 to 51 mm is included in the scope of delivery.
What does dual polarization (horizontal and vertical) mean?
The Antenna can simultaneously send and receive WiFi signals on two different oscillation planes (horizontal and vertical). This improves signal quality in environments with many obstacles and reflections and is a basic prerequisite for effective 2x2 MIMO transmission.
