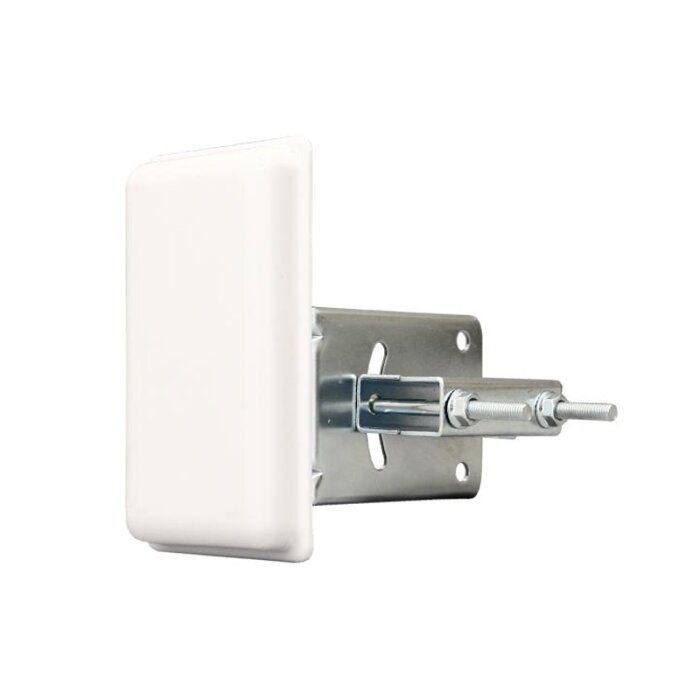

Precision in the Sector: The GigaSektor PRO 13/120 HV in Detail
If you, as a Wireless Internet Service Provider (WISP), want to build a reliable Point-to-Multipoint connection, choosing the right Antenna is crucial. The Cyberbajt GigaSektor PRO 13/120 HV was specifically developed for this purpose. It is not an all-in-one solution, but a highly specialized passive 5GHz sector Antenna with low interference, serving as the heart of your base station. You connect it to your preferred wireless module – be it from MikroTik, Ubiquiti, or Cambium – and precisely and stably supply a 120-degree sector with a powerful signal.
Maximum Performance in 'Noisy Environments'
The biggest problem in densely populated areas is the high wireless density. Countless Networks transmit simultaneously and interfere with each other. This is exactly where the GigaSektor PRO demonstrates its strength. Thanks to a sophisticated RF design, signals coming from the rear or sides (back radiation and side lobes) are extremely strongly attenuated. The Antenna focuses exclusively on its sector. The result is a significantly cleaner signal, higher data throughput, and a more stable connection for all your clients.
Built for Professional Outdoor Use
An antenna is exposed to the elements and must function reliably for years. The GigaSektor PRO is designed as a robust Outdoor Sector Antenna 120 Degree HV. The housing is made of UV-resistant plastic that will not become brittle even after years in the sun. The mounting elements are made of stainless steel to prevent rust. With a certified wind load resistance of up to 56 m/s, you can be sure that your infrastructure remains stable even in storms.
Strengths & Notes at a Glance
- Pro: Excellent suppression of interference signals through minimized back radiation and side lobes, ideal for high-density wireless environments.
- Pro: Broad frequency spectrum (4.9 - 6.1 GHz) with stable radiation characteristics for flexible and predictable Network coverage.
- Pro: Very compact and lightweight design combined with robust, weatherproof materials for a long Service life in outdoor use.
- Pro: High compatibility with common wireless modules (e.g., MikroTik, Ubiquiti) thanks to standard RP-SMA connectors.
- Note: The narrow vertical beamwidth of 12° requires precise alignment and tilt of the antenna during installation.
- Note: The antenna gain of 13 dBi is optimal for short to medium distances, but limited for true long-range connections.
Specifications & Features
| Manufacturer: | Cyberbajt |
| Model: | GigaSektor PRO 13/120 HV |
| HAN/MPN: | GS PRO 13/120HV |
| EAN: | 4251028603742 |
| Antenna Type: | Sector Antenna |
| Technology: | Dual-Polarization (2x2 MIMO) |
| Frequency Range: | 4.9 - 6.1 GHz (5 GHz Components) |
| Antenna Gain (Gain): | 13 dBi |
| Polarization: | Vertical + Horizontal (HV) |
| Horizontal Beamwidth (-3dB): | 120° |
| Horizontal Beamwidth (-6dB): | 115±5° |
| Vertical Beamwidth (-3dB): | 12° |
| VSWR: | < 1.5 (typical) |
| Impedance: | 50 Ohm |
| Connectors: | 2 x RP-SMA |
| Separation between Connectors: | >28 dB |
| Dimensions (antenna only): | 182 x 105 x 25 mm |
| Dimensions (packaging): | 350 x 120 x 90 mm |
| Weight (antenna only): | 200 g |
| Weight (with bracket): | 600 g |
| Housing Material: | UV-resistant plastic |
| Bracket/Shield Material: | Stainless steel, aluminum |
| Wind Load Resistance: | up to 56 m/s |
| Mounting Type: | Mast mounting |
| Supported Mast Diameter: | 26 - 53 mm |
| Protection Function: | DC short circuit against static discharge |
| Manufacturer Warranty: | 36 months |
Scope of Delivery
| 1 x Cyberbajt GigaSektor PRO 13/120 HV Antenna incl. Mast Mounting Kit (Antenna Mounting Accessories) |
Frequently Asked Questions (FAQ)
What application is the Cyberbajt GigaSektor PRO 13/120 HV ideal for?
This sector antenna is specifically designed for building Point-to-Multipoint (PtMP) WiFi Access Points / base stations in the 5 GHz Components band. It is excellent for Internet Service Providers (WISPs) who want to provide stable internet to multiple clients in a 120-degree sector, especially in areas with high radio frequency density.
Can I use this antenna with my Ubiquiti or MikroTik RouterBOARD?
Yes, absolutely. The antenna features two RP-SMA connectors, which allow for direct connection to most radio modules from manufacturers like Ubiquiti Networks (e.g., Rocket series) and MikroTik Routers (e.g., RouterBOARDs with appropriate radio cards).
What does 'Dual-Polarization (HV)' mean and what advantage does it offer?
Dual-Polarization means that the antenna can simultaneously transmit and receive signals on the horizontal (H) and vertical (V) planes. This is the basis for 2x2 MIMO technology, which leads to improved signal quality, higher data throughput rates, and a more reliable connection.
Is the antenna suitable for outdoor use in all weather conditions?
Yes, the antenna is explicitly designed for outdoor use. The housing is made of weather-resistant, UV-stable plastic, and the Mounting Systems / bracket is made of stainless steel, ensuring high durability even under demanding weather conditions. It has been tested up to a wind speed of 56 m/s.
What is the difference between the horizontal and vertical beamwidth?
The horizontal beamwidth of 120 degrees describes the width of the sector that the antenna covers (e.g., the extent of a district). The very narrow vertical beamwidth of 12 degrees strongly focuses the energy vertically to direct the signal precisely towards clients on the ground and minimize radiation into the sky or unnecessary reflections.
Why are low back radiation and reduced side lobes important?
In an area with many radio Network, an antenna can receive interference signals from the back or side. Low back radiation and small side lobes mean that the antenna almost exclusively 'listens' and transmits in the desired direction. The result is a 'cleaner' signal, less interference for its own and neighboring Network, and thus higher overall performance.
