Your reliable internet anchor for outdoors

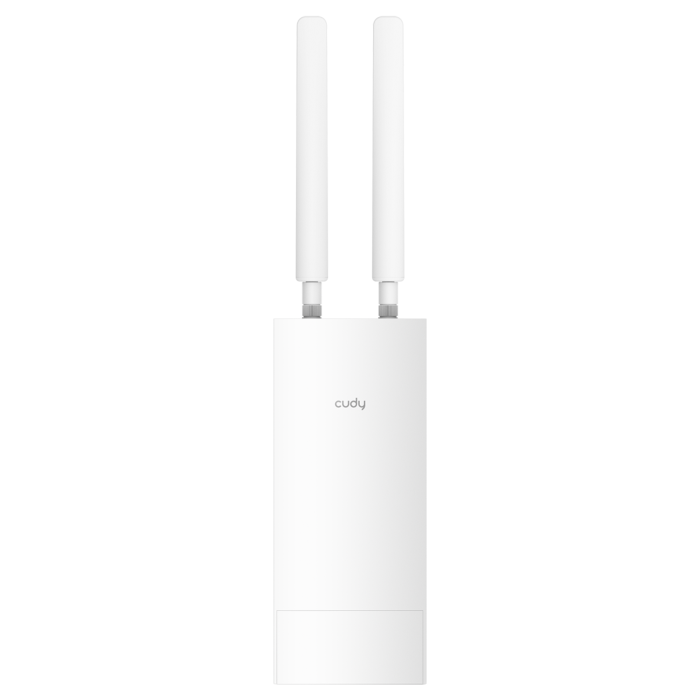

Imagine being able to enjoy a lightning-fast and absolutely reliable internet connection wherever you are – even outdoors. Whether you're looking for a stable connection for your garden office, a construction site, or your remote holiday home, the Cudy LT700 Outdoor 4G Router is your solution. It uses the power of 4G Cat 6 with Carrier Aggregation to deliver download speeds of up to 300 Mbps where traditional DSL or fiber optics can't reach. Simply insert a Nano-SIM card and you're online. This Outdoor Router is specifically designed to provide you with uninterrupted connectivity, even when the mobile signal is weak – thanks to the option of connecting detachable Antennas. It is the ideal 4G / 5G Router for anyone who places the highest demands on their outdoor connectivity.
Performance that inspires – even under extreme conditions
The Cudy LT700 Outdoor is not only fast but also incredibly robust. Its IP65 certification means full protection against dust and jet water, while the operating temperature range of -40°C to 70°C and 6 kV surge protection make it immune to extreme weather conditions. At the same time, the integrated AC1200 WLAN with Dual-Band Wi-Fi delivers combined speeds of up to 1200 Mbps, allowing you to easily supply multiple devices with high-speed internet simultaneously. From surveillance cameras to smart TVs in the garden – everything runs smoothly.
Security & Flexibility: Your Network, your rules
With the Cudy LT700 Outdoor, you have full control over your Network. The extensive VPN Client/Server functions (PPTP, L2TP, OpenVPN, WireGuard, IPsec, ZeroTier) enable secure and encrypted connections, perfect for remote access or protecting your privacy. You can also use the router as part of a Mesh WLAN system to seamlessly extend your Network over larger areas. Features like WAN Failover ensure an uninterrupted connection by automatically switching to 4G if your wired WAN connection fails. Support for over 20 DDNS Support providers completes the package and gives you maximum flexibility.
Effortless installation, maximum control
Setting up the Cudy LT700 Outdoor is incredibly easy. Thanks to PoE (Power over Ethernet), you only need a single Ethernet cable for power and data, which greatly simplifies mounting in hard-to-reach places like masts or walls. A suitable PoE Adapter is already included in the scope of delivery, so you don't need any additional PoE Injectors / Power Supplies. Via the intuitive Cudy App or the web interface, you have access to all settings at any time, from the Band Lock function to the TTL Settings. This allows you to precisely adapt your network to your needs and always keep an overview.
Strengths & Notes at a glance
- Pro: Robust outdoor capability with IP65 certification, wide operating temperature range (-40°C to 70°C) and 6 kV surge protection for reliable outdoor operation.
- Pro: Flexible connectivity and redundancy through 4G 4G Cat. 6 (up to 300 Mbps DL, 50 Mbps UL thanks to Carrier Aggregation and 4x4 MIMO) and AC1200 Dual-Band WLAN.
- Pro: Comprehensive VPN Client/Server support (PPTP, L2TP, OpenVPN, WireGuard, IPsec, ZeroTier) and management functions such as Band Lock, TTL settings and DDNS Support for extended control and security.
- Note: The outdoor version of the LT700 only has one Gigabit Ethernet port (PoE In), which limits the direct wired connection of multiple devices without an additional switch.
- Note: Unlike some other Cudy LT700 variants, the LT700 Outdoor version only offers one Nano-SIM slot, which limits redundancy in case of SIM card failures or easy switching between two mobile network providers directly on the device.
Specifications & Features
| Manufacturer: | Cudy |
| Model: | LT700 Outdoor 1.0 |
| Cellular Standards: | 4G 4G Cat. 6 with 4G-A |
| Max. 4G Download: | 300 Mbps |
| Max. 4G Upload: | 50 Mbps |
| Carrier Aggregation: | DL 2-Carrier Aggregation (2CA) |
| MIMO (4G): | DL 2x2 MIMO |
| WLAN Standards: | Wi-Fi 5 (802.11ac/a/b/g/n) |
| WLAN Performance: | AC1200 Dual-Band |
| WLAN Speed 2.4 GHz: | 300 Mbps (MIMO 2x2) |
| WLAN Speed 5 GHz: | 867 Mbps (MIMO 2x2) |
| WLAN Antennas: | 2x Internal (5dBi) |
| Cellular Antennas: | 4x Detachable (SMA Female, 5dBi) |
| SIM Slots: | 1x Nano SIM Slot |
| Ethernet Ports: | 1x Gigabit Ethernet (PoE In) |
| CPU: | Mediatek Dual Core 880MHz |
| 4G Module: | Quectel EG120K (Qualcomm) |
| RAM: | 128 MB DDR3 |
| Flash Memory: | 16 MB NOR |
| PoE Standard: | 802.3at/af, 24~57V Passive PoE |
| Protection Class: | IP65 |
| Operating Temperature: | -40°C to 70°C |
| Surge Protection: | 6 kV |
| ESD Protection: | 8 kV |
| Max. WLAN Devices: | 64 |
Scope of delivery
| 1 x Cudy LT700 Outdoor Router |
| 4 x Detachable Antennas |
| 1 x PoE Adapter |
| 1 x Power Cable |
| 1 x Mounting Kit |
| 1 x Ethernet Cable |
| 1 x Installation Guide |
Frequently Asked Questions (FAQ)
What does '4G LTE Cat. 6' mean for the Cudy LT700 Outdoor?
4G LTE Cat. 6 (Category 6) means that your router can achieve download speeds of up to 300 Mbps and upload speeds of up to 50 Mbps over the mobile network. This is made possible by technologies like Carrier Aggregation (bundling multiple frequency bands) and 4x4 MIMO.
Is the Cudy LT700 Outdoor waterproof?
Yes, your Cudy LT700 Outdoor is IP65 certified, which means it is completely dustproof and protected against water jets from any direction. It is therefore suitable for outdoor use in rain and dusty conditions.
Can I set up a Mesh Wi-Fi with the Cudy LT700 Outdoor?
Yes, your Cudy LT700 Outdoor supports Cudy Mesh and can function as a main node in a mesh network. This allows you to extend Wi-Fi coverage by adding more Cudy APs to ensure seamless roaming.
How is the Cudy LT700 Outdoor powered?
Your Cudy LT700 Outdoor is powered via Power over Ethernet (PoE). A PoE adapter is included, which allows you to transmit power and data over a single Ethernet cable over a distance of up to 100 meters. It supports 802.3at/af and 24~57V Passive PoE.
Does the Cudy LT700 Outdoor support VPN connections?
Yes, your Cudy LT700 Outdoor supports various VPN protocols (PPTP, L2TP, OpenVPN, WireGuard, IPsec, ZeroTier) and can be configured as both a VPN client and a VPN server to provide you with secure and encrypted connections.
Can I replace the antennas of the Cudy LT700 Outdoor?
Yes, the four cellular 4G antennas of your Cudy LT700 Outdoor are detachable and feature SMA connectors. This allows you to replace them with more powerful or directional external antennas to improve the mobile signal. The two Wi-Fi antennas are internal.
Homepage: https://www.cudy.com
