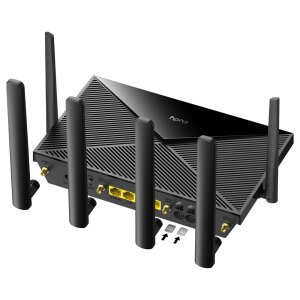

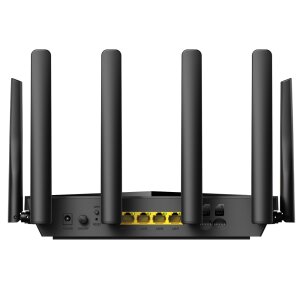

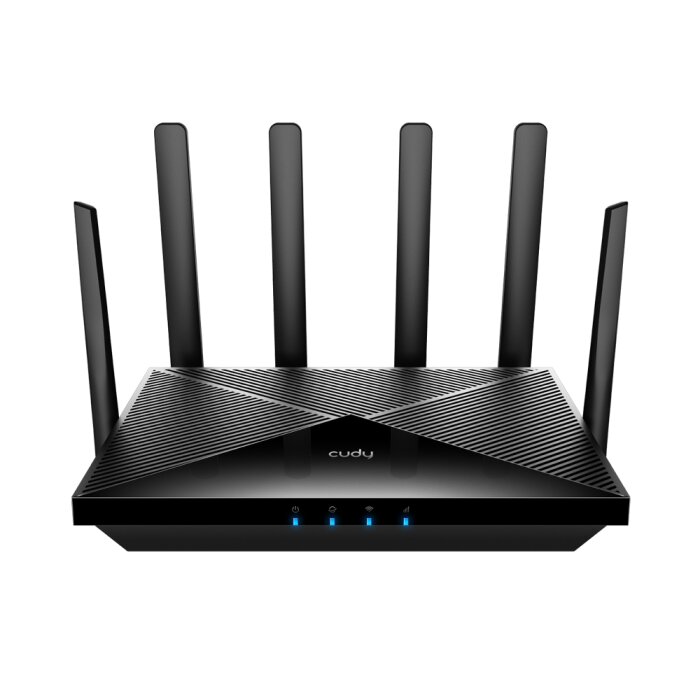

The Cudy LT12 is a CAT.12 standard LTE router with two SIM card slots, an integrated 802.11ac WiFi access point (1200 Mbps), and four Gigabit Ethernet ports. It is ideal for use in homes, offices, or mobile homes. The Cudy features four detachable LTE antennas (4x4 MIMO), so a more powerful external antenna can be connected if needed.
With its integrated CAT.12 standard LTE modem, the Cudy LT12 achieves download speeds of up to 600 Mbps using carrier aggregation. The practical dual-SIM function allows for a redundant data connection. If the primary provider's connection fails, the Cudy LT12 automatically switches to the secondary data connection. The router supports various VPN protocols.
The router is managed conventionally via a web interface or through the innovative Cudy app. Another major advantage is that the Cudy LT12 can be directly integrated into a Cudy Mesh system.
Technical Specifications:
| Manufacturer / Product: | Cudy / LT12 |
| CPU: | MT7621, 880 MHz Dual-Core, MIPS1004Kc |
| RAM: | 256 MB DDR3 |
| Network Type: | 3G WCDMA: B1/B5/B8 4G FDD-LTE: B1/B3/B5/B7/B8/B20/B28 4G TDD-LTE: B38/B40/B41 |
| LTE Transfer Rates: | Download: up to 600 Mbps, Upload: up to 150 Mbps (CAT12) |
| LTE Antenna: | 4 x LTE omnidirectional antennas (detachable - SMA) |
| SIM Interface: | 2 x Nano-SIM Slot |
| WiFi Standards: | IEEE 802.11 a/b/g/n/ac (2.4 GHz / 5 GHz) |
| WiFi Transfer Rates: | 300 Mbps @ 2.4 GHz 867 Mbps @ 5 GHz |
| Security: | 64/128-bit WEP, WPA, WPA2, WPA3 |
| Application Area: | Indoor |
| Dimensions: | 253 ×152 x 48 mm |
| Operating Environment: | 0°C - 40°C |
| Power Supply: | 12V 1.5A |

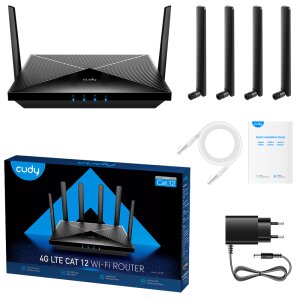

Scope of Delivery:
| 1 x Cudy LT12 LTE Router |
| 1 x 230V Power Adapter with EU Plug |
| 1 x RJ45 Network Cable |
| 1 x Installation Guide |
