Your Entry into the 10-Gigabit World: The UCG-Fiber
Are you ready for the next level of Network performance? The Ubiquiti UniFi UCG-Fiber is not just a Router; it's the heart of your future high-speed Network. Specifically designed for users with fast internet connections, this Cloud Gateway offers impressive performance previously only found in expensive 19-Inch Racks systems. Whether you have or plan to get a 10G fiber optic connection, the UCG-Fiber has you well-equipped. Experience lag-free browsing, streaming, and working, even when using demanding security features like Deep Packet Inspection (DPI) and IDS/IPS – without performance degradation.
More Than Just a Router: The UniFi OS Powerhouse
Forget complicated setups with multiple devices. The UCG-Fiber integrates the entire Ubiquiti world into a single, elegant device. It hosts the UniFi Network Application out of the box, eliminating the need for a separate Cloud Key. But that's just the beginning: With the optional M.2 NVMe SSD slot, you transform the Gateway into a full-fledged Network Video Recorder (NVR) for your UniFi Protect IP Cameras. Manage your complete ecosystem – from UniFi Switch to UniFi Access Points and IP Cameras – via a single, intuitive interface. This is the best Multi-Gig Router for your UniFi Network, reducing complexity and maximizing control.
Compact Design, Maximum Connectivity

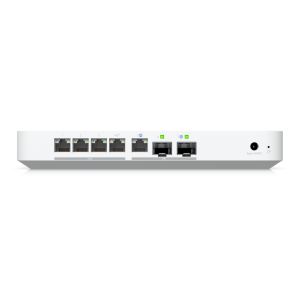

Who says high-end technology needs a lot of space? The UCG-Fiber proves otherwise. Its compact desktop Enclosures hide an impressive variety of ports. With two 10G SFP+ Modules, one 10G RJ45 port, and four 2.5GbE RJ45 ports, you are prepared for any situation. Connect your fiber modem directly, link a fast NAS or a Multi-Gig Ethernet Switch, and power a UniFi Access Point via the integrated PoE+ Injectors / Power Supplies port. The UCG-Fiber performance with IDS/IPS remains consistently high, making it the perfect choice for demanding home users and small to medium-sized businesses.
Strengths & Notes at a Glance
- Pro: Outstanding value for 10G performance with full security features.
- Pro: Compact all-in-one system (Gateway, Ethernet Switch, PoE+ Injectors / Power Supplies, optional NVR) reduces complexity.
- Pro: High port flexibility with 10G SFP+ Modules, 10G RJ45, and 2.5G RJ45.
- Pro: Full UniFi OS Integration for central management of Network, UniFi Protect, and more.
- Note: For very large Networks (over 50 UniFi devices), the UDM-Pro/SE models are better suited.
- Note: Only a single PoE+ Injectors / Power Supplies port requires an additional PoE Switch for multiple PoE devices.
Specifications & Features
| Manufacturer: | Ubiquiti |
| Model: | UniFi Cloud Gateway Fiber (UCG-Fiber) |
| EAN: | 0810177161288 |
| Manufacturer Part Number: | UCG-Fiber |
| Product Type: | Cloud Gateway / Router |
| Processor (CPU): | Quad-Core ARM® Cortex®-A73 @ 2.2 GHz |
| RAM: | 3 GB DDR4 |
| Routing Performance (with IDS/IPS): | Up to 5 Gbps |
| WAN Interfaces (Dual-WAN): | 1x 10G SFP+ Modules (10G/1G), 1x 10GbE RJ45 (10G/2.5G/1G) |
| LAN Interfaces: | 1x 10G SFP+ Modules (10G/1G), 4x 2.5GbE RJ45 (2.5G/1G/100M/10M) |
| PoE+ Functionality: | 1x LAN Port (Port 4) with IEEE 802.3at PoE+ Injectors / Power Supplies |
| PoE Budget: | 30W |
| PoE Voltage Range: | 50-57V |
| NVR Storage (optional): | 1x NVMe M.2 SSD Slot (up to 2 TB, SSD not included) |

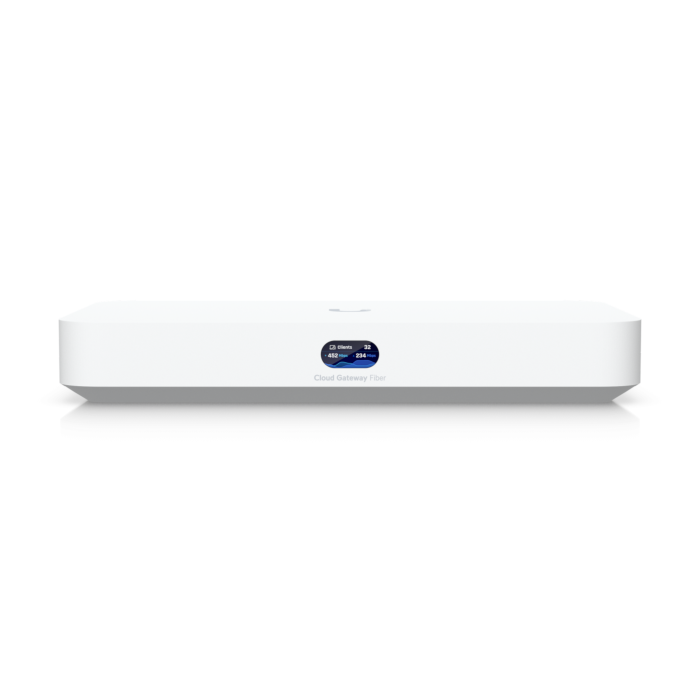

| Display: | 0.96 inch LCM Status Display |
| Management Software: | Integrated UniFi OS (Network, UniFi Protect, Access, Talk, Connect) |
| Manageable UniFi Devices: | Over 50 |
| Supported Clients: | Over 500 |
| UniFi Protect Capacity: | Up to 15 HD / 8 2K / 5 4K IP Cameras |
| Security Features: | Stateful Firewall, IDS/IPS, DPI, Content Filtering, Ad Blocking, VLANs |
| VPN Support: | WireGuard, OpenVPN, IPsec, L2TP, Teleport |
| Power Supply: | External Power Adapter, 54V DC / 1.1A (included) |
| Max Power Consumption: | 29.4W (without PoE load) |
| Cooling: | Active, integrated fan |
| Housing Material: | Polycarbonate |
| Dimensions (W x D x H): | 212.8 x 127.6 x 30 mm |
| Weight (without SSD): | 675 g |
| Operating Temperature: | 0°C to 40°C |
| Certifications: | CE, FCC, IC |
| NDAA Compliance: | Yes |
Scope of Delivery
| 1 x Ubiquiti UniFi Cloud Gateway Fiber (UCG-Fiber) |
| 1 x External Power Adapter (54V, 1.1A) |
Frequently Asked Questions (FAQ)
Do I need a separate Cloud Key for the UCG-Fiber?
No, the UniFi Cloud Gateway Fiber has the UniFi Network Controller software already integrated and can manage the entire Network independently. A separate Cloud Key or a self-hosted controller is not required.
Can the UCG-Fiber also be used as a video surveillance recorder (NVR)?
Yes, by installing an optional M.2 NVMe SSD (up to 2 TB), the UCG-Fiber can run the UniFi Protect application and function as a full-fledged NVR for UniFi IP Cameras or Other Cameras, without needing a separate device.
Does the Ubiquiti UCG-Fiber have integrated WiFi?
No, the device is a pure Router and Gateway. It does not have built-in WiFi functionality. To set up a WiFi network, at least one separate UniFi Access Point must be connected to one of the LAN ports.
What advantage do the SFP+ Ports offer over normal RJ45 Ports?
The SFP+ Ports are designed for 10-Gigabit connections and are primarily used for fiber optic connections or for high-speed uplinks to other Ethernet Switch devices. They offer an interference-free and performant connection over longer distances than copper Cabling (RJ45).
Is the UCG-Fiber oversized for a Gigabit internet connection?
Not necessarily. While it is very powerful for a simple 1-Gbit connection, it truly shines when you want to use security features like IDS/IPS without speed loss. Furthermore, it is a future-proof investment for upcoming Multi-Gigabit internet connections for your Network.
Can I use any of the 10G Ports as a WAN Port?
Yes, the ports are flexibly configurable. You can define both the 10G SFP+ Port and the 10G RJ45 Port as a WAN-Uplink, ensuring high compatibility with various Internet Provider Modems (ONTs).
