Fiber Speed Without Digging: Your 60 GHz PtMP Base Station
The Ubiquiti Wave-AP-Gen2 revolutionizes how you distribute high-speed internet. As a central Point-to-MultiPoint (PtMP) Base Station, it utilizes the license-free 60 GHz frequency band to bypass interference and enable massive data throughput of 5.4 Gbit/s. This makes it the perfect solution for Internet Service Providers (ISPs) looking to connect rural or urban areas without expensive fiber optic cable laying. Easily connect up to 31 client devices such as the Wave Nano or Wave Long-Range and build a scalable, high-performance wireless Network.
Maximum Reliability Through Intelligent Dual-Band System
What happens during heavy rain? While the 60 GHz signal can be attenuated in extreme weather conditions (known as 'Rain Fade'), the Wave-AP-Gen2 demonstrates its strength. It automatically and seamlessly switches to the integrated 5 GHz WiFi 6 backup radio module. This weather-resistant connection ensures that your customers stay online, even when the weather doesn't cooperate. As soon as conditions allow, the system switches back to full 60 GHz performance – a smart solution for maximum uptime.
Built for Professionals: 10G SFP+ and Central UISP Management
The Wave-AP-Gen2 is thoroughly designed for professional requirements. In addition to the 2.5 GbE port for data and PoE Power Supply, the 10G SFP+ Port offers the option to connect the base station directly to a fiber backbone, thus eliminating Network bottlenecks. All configuration and monitoring are done exclusively via the Ubiquiti ISP (UISP) platform. This powerful tool allows you to centrally manage all your Ubiquiti devices, perform detailed analysis of connection quality, and intuitive Antenna alignment.
Strengths & Notes at a Glance
- Pro: Extremely high throughput of 5.4 Gbit/s in the low-interference 60 GHz band, ideal for ISP applications.
- Pro: High reliability through automatic 5 GHz WiFi 6 backup in bad weather.
- Pro: Professional interfaces with 2.5 GbE PoE and 10G SFP+ for maximum performance.
- Pro: Scalable for up to 31 clients and ranges of up to 6 km.
- Note: A clear and direct line-of-sight (Line-of-Sight) between the base station and clients is essential for the 60 GHz connection.
- Note: Management is only possible via the Ubiquiti UISP platform, which requires familiarization with the ecosystem.
Specifications & Features
| Manufacturer: | Ubiquiti |
| Model: | Wave-AP-Gen2 |
| Manufacturer Article Number (HAN): | WAVE-AP-GEN2 |
| EAN: | 0810177160205 |
| Device Type: | 60 GHz PtMP Access Point Base Station |
| Dimensions (W x H x D): | 158.3 x 286.8 x 100.2 mm |
| Weight: | 1.5 kg |
| Housing Material: | UV-stabilized polycarbonate, aluminum alloy |

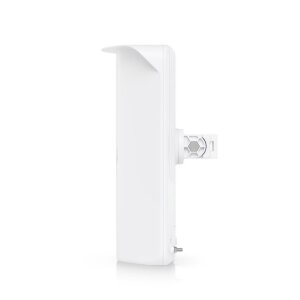

| Protection Class: | IPX6, weatherproof |
| Wind Load: | 109.8 N at 200 km/h |

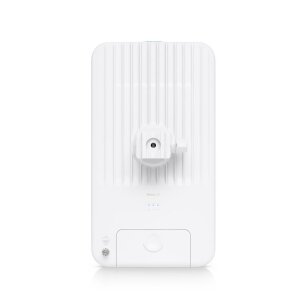

| Mounting: | Pole mounting (for pipe diameters 25.4 to 60 mm) |
| Processor: | Quad-Core ARM® Cortex®-A53 with 1.4 GHz |
| RAM: | 512 MB DDR3L SDRAM |
| Network Interfaces: | 1x 2.5 GbE RJ45 Port, 1x 10G SFP+ Port |

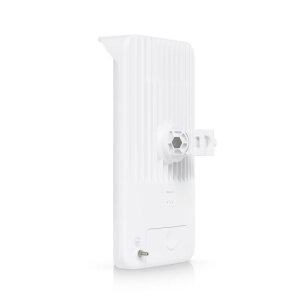

| GPS: | Integrated |
| Power Supply: | Passive PoE (4-pair or 2-pair) |
| Supported Voltage Range: | 44–54V DC (4-pair), 22–27V DC (2-pair) |
| Maximum Power Consumption: | 24W |
| Included Power Adapter: | 48V DC, 0.65A 2.5 GbE PoE Adapter |
| Operating Mode: | PtMP Access Point |
| Network Mode: | Bridge Mode |
| Maximum Total Throughput: | 5.4 Gbit/s |
| Symmetric Throughput: | 2.7 Gbit/s |
| Maximum Client Count: | 31 |
| Encryption: | WPA2-PSK (AES) |
| Management Platform: | Ubiquiti ISP (UISP) Version 2.4.205 or newer |
| 60 GHz Wireless Standard: | Based on 802.11ay |
| 60 GHz Frequency Range: | 57 - 71 GHz (region dependent) |
| 60 GHz Channel Bandwidth: | 2160, 1080, 540 MHz |
| 60 GHz Antenna Gain: | 20 dBi |
| 60 GHz Beamwidth (Azimuth): | 90° |
| 60 GHz Beamwidth (Elevation): | 7° |
| Maximum Range: | Up to 6 km (with Wave Pro/LR), up to 4 km (with Wave Nano) |
| 5 GHz Backup Wireless Standard: | 802.11ax (WiFi 6) |
| 5 GHz Frequency Range: | 5150 - 5875 MHz (region dependent) |
| 5 GHz Antenna Gain (integrated): | 13 dBi |
| 5 GHz External Antenna Connectors: | 2x RP-SMA Female |
| Operating Temperature: | -40°C to 60°C |
| Operating Humidity: | 5 to 95% (non-condensing) |
| Certifications: | FCC, IC, CE |
| Compliance: | NDAA Compliant |
Scope of Delivery
| 1 x Ubiquiti Wave-AP-Gen2 Base Station |
| 1 x Pole Mounting Kit |
| 1 x 48V DC, 0.65A 2.5 GbE PoE Adapter |
Frequently Asked Questions (FAQ)
Is the Ubiquiti Wave-AP-Gen2 a WiFi Router for home use?
No, it is a highly specialized outdoor Point-to-MultiPoint base station used by Internet Service providers and businesses to distribute internet over long distances to multiple locations. It is not a home WiFi Router.
What happens to the connection during heavy rain or fog?
The primary 60 GHz signal can be attenuated by heavy rain ('Rain Fade'). In this case, the Wave-AP-Gen2 automatically switches to the integrated 5 GHz backup connection, which is less susceptible to weather. This ensures connection stability, albeit at a lower speed.
How many clients can the Wave-AP-Gen2 serve and which ones?
The base station can serve up to 31 Ubiquiti Wave Client devices simultaneously. These include models such as the Wave Pro, Wave Long-Range, and Wave Nano, which are selected based on distance and required bandwidth.
Does the Wave-AP-Gen2 require a separate power cable on the mast?
No, power is supplied via Power over Ethernet (PoE). This means that both the data connection and power are routed to the device via a single network cable. A suitable 48V PoE Injector is included.
Can I connect the Wave-AP-Gen2 with devices from other manufacturers?
No, the Wave-AP-Gen2 uses Ubiquiti's proprietary Wave technology. It is designed to communicate exclusively with other devices from the Ubiquiti Wave product family to ensure maximum performance and stability.
What does the 90° beam angle mean in practice?
The 90° sector beam angle means that the base station covers a wide, 'pie-slice'-shaped area in front of it. All client devices must be within this 90-degree sector and in direct line of sight to establish a connection.
