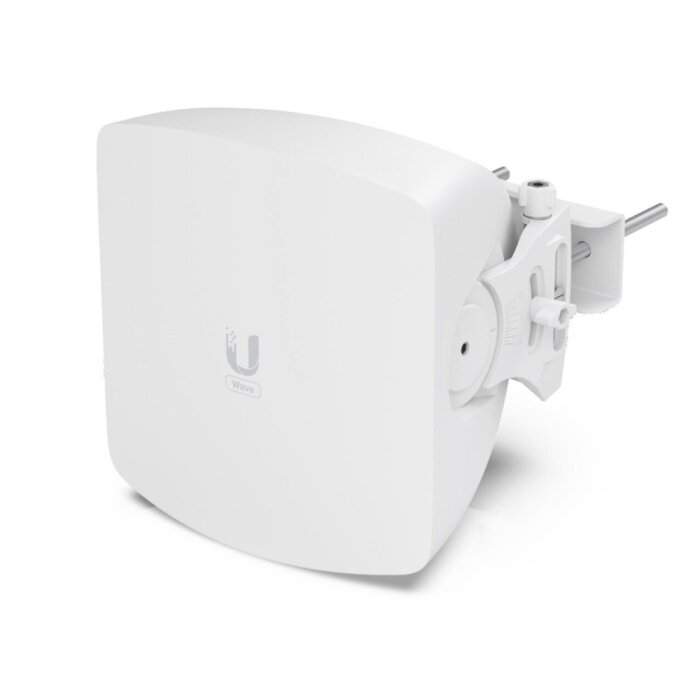

Fiber-Optic Speed without Cables: The Wave AP 60 GHz PtMP Access Point
The Ubiquiti Wave AP is more than just an Access Point – it is your key to a new era of wireless connectivity. As a powerful base station for Point-to-Multipoint (PtMP) scenarios, it enables you to build a fast WISP Base Station that can compete with fiber optics in terms of speed. With a breathtaking throughput of 5.4 Gbit/s in the 60 GHz Band, you effortlessly provide High-Speed-Internet to multiple locations, company buildings, or entire residential areas. Forget expensive and complex earthworks – with the Wave AP, you bridge distances of up to 8 kilometers simply through the air, expanding your Network.
Maximum Reliability: Your Network always runs thanks to WiFi 6 Backup
We know that a stable connection is everything. That's why Ubiquiti has equipped the Wave AP with intelligent Dual-Band-Technology. The primary connection runs over the extremely fast 60 GHz Band. Should this signal be affected by extreme weather conditions such as heavy rain, the system seamlessly and automatically switches to the integrated 5 GHz Backup with WiFi 6 Standard. This failover ensures a constant connection with still impressive 800+ Mbit/s, guaranteeing maximum availability for you and your customers. This way, your Network stays online even under the most adverse conditions.
Scale Your Network: Up to 31 Clients and 8 km Range
The Wave AP was designed for growth. It supports the connection of up to 31 client devices (e.g., Wave Nano or Wave Long-Range), giving you enormous flexibility in expanding your Network. Whether you want to cover a small area or a vast landscape, this Access Point offers the necessary power and range. Management is central and intuitive via the Ubiquiti UISP-Platform, with which you keep an eye on all your 60 GHz Components and other Network devices. Plan, expand, and optimize your Network with professional tools that make your work easier.
Built for Professionals: Robust Hardware and Flexible Connectivity
In outdoor use, only absolute robustness counts. The Wave AP is housed in an Enclosure made of aluminum alloy and UV-stabilized polycarbonate, certified with protection class IPX6. This means it is fully protected against dust and strong water jets and operates reliably at temperatures from -40 to 60 °C. For connection to your core Network, a 10G SFP+ Port and a 2.5GbE RJ45 Port are available. These High-Speed-interfaces ensure that no bottleneck slows down the performance of your wireless link setup. Power is supplied simply via passive PoE, and the appropriate PoE Injectors / Power Supplies adapter is already included.
Strengths & Notes at a Glance
- Pro: Extremely high total throughput of 5.4 Gbit/s, comparable to fiber optic performance.
- Pro: Integrated 5 GHz WiFi 6 Failover ensures a fail-safe connection in bad weather.
- Pro: High scalability with support for up to 31 clients and up to 8 km range for your Network.
- Pro: Weatherproof IPX6 Enclosure and High-Speed-connections (10G SFP+ & 2.5GbE) for professional deployment.
- Note: The 60 GHz Band is susceptible to 'Rain Fade', which can reduce maximum performance during heavy rain.
- Note: An absolutely clear Line-of-Sight between the Access Point and client is mandatory.
Specifications & Features
| Manufacturer: | Ubiquiti |
| Model: | Wave AP |
| EAN / GTIN: | 0810010078742 |
| Manufacturer Part Number (MPN): | WAVE-AP |
| Device Type: | Outdoor Point-to-Multipoint (PtMP) Access Point |
| Processor: | Quad-Core ARM® Cortex®-A53 @ 1.4 GHz |
| RAM: | 512 MB DDR3L SDRAM |
| Operating System: | Ubiquiti airOS® |
| Maximum Total Throughput: | 5.4 Gbit/s (2.7 Gbit/s Duplex) |
| Maximum Client Count: | Up to 15 (up to 31 with FW 3.4.0+) |
| Operating Modes: | PtMP Access Point, PtP Bridge Mode (from FW 3.2.0+) |
| Primary Radio (60 GHz) Frequency: | 57 - 71 GHz (region dependent) |
| Primary Radio (60 GHz) Range: | Up to 8 km (with Wave Pro/LR), up to 5 km (with Wave Nano) |
| Primary Radio (60 GHz) Channel Bandwidth: | 2160 MHz, 1080 MHz, 540 MHz (from FW 3.3.0) |
| Primary Radio (60 GHz) Modulation: | 16QAM, QPSK |
| Primary Radio (60 GHz) Antenna Gain: | 24 dBi |
| Primary Radio (60 GHz) Polarization: | Vertical linear |
| Primary Radio (60 GHz) Beamwidth Azimuth: | 30° |
| Primary Radio (60 GHz) Beamwidth Elevation: | 3° |
| Primary Radio (60 GHz) Electrical Downtilt: | 0° |
| Backup Radio (5 GHz) WLAN Standard: | 802.11ax (Wi-Fi 6) |
| Backup Radio (5 GHz) Frequency: | 5150 - 5875 MHz (region dependent) |
| Backup Radio (5 GHz) Throughput: | Up to 800+ Mbit/s |
| Backup Radio (5 GHz) Channel Bandwidth: | 20, 40, 80 MHz |
| Backup Radio (5 GHz) Modulation: | BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Backup Radio (5 GHz) Antenna Gain: | 12 dBi |
| Backup Radio (5 GHz) Polarization: | Dual-linear |
| Network Interface 1: | 1x 10G SFP+ Port |
| Network Interface 2: | 1x 2.5GbE RJ45 Port (only active if SFP+ unused) |
| Management Interface: | Bluetooth, Ethernet |
| WLAN Encryption: | WPA2-PSK (AES) |
| Management Software: | UISP, Web UI, SNMP, Ping Watchdog |
| Power Supply: | Passive PoE |
| Supported PoE Voltage: | 44–54V DC (4-pair/2-pair), 22–27V DC (4-pair) |
| Maximum Power Consumption: | 24W |
| Included Power Adapter: | 48V DC, 0.65A, 2.5GbE PoE Adapter |
| Housing Material: | Aluminum alloy, UV-stabilized polycarbonate |
| Protection Class: | IPX6 |
| Wind Load: | 98 N at 200 km/h |
| Operating Temperature: | -40 °C to 60 °C |
| Operating Humidity: | 5 - 95% (non-condensing) |

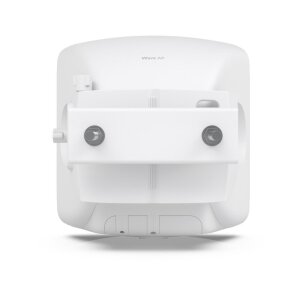

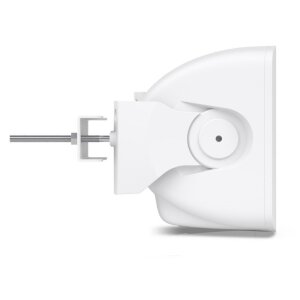

| Mounting: | Integrated pole mount (25 to 76 mm) |
| Integrated Sensor: | GPS |
| LED Indicators: | Power, Ethernet, GPS Signal |
| Certificates: | FCC, IC, CE |
| Dimensions: | 212 x 205 x 187 mm |
| Weight: | 2.3 kg |
Scope of Delivery
| 1 x Ubiquiti Wave AP |
| 1 x 48V DC, 0.65A, 2.5GbE PoE Adapter |
| 1 x Pole Mount (integrated) |
Frequently Asked Questions (FAQ)
What is the maximum number of clients the Ubiquiti Wave AP can serve?
The Ubiquiti Wave AP can connect up to 15 client stations. With current firmware (version 3.4.0 or newer), this capacity increases to up to 31 clients, enhancing your Network capabilities.
What is the range of the Ubiquiti Wave AP?
The maximum range depends on the connected client device. It is up to 8 kilometers when connected to a Wave Pro or Wave Long-Range, and up to 5 kilometers when connected to a Wave Nano, showcasing the extensive reach of Ubiquiti Networks.
Is the Ubiquiti Wave AP weatherproof?
Yes, the Ubiquiti Wave AP is certified with protection class IPX6. Its housing, made of aluminum alloy and UV-stabilized polycarbonate, is designed for permanent outdoor use and withstands extreme weather conditions, ensuring durability for your Enclosures.
Does the Wave AP require a clear line of sight to the client?
Yes, for the primary 60 GHz Components connection, an absolutely clear line-of-sight without obstructions is strictly required, as this high frequency is very sensitive to obstructions, vital for optimal performance of Ubiquiti Networks devices.
How is the Ubiquiti Wave AP powered?
The Ubiquiti Wave AP is powered via passive Power over Ethernet (PoE). It supports a voltage of 44-54V DC or 22-27V DC. A suitable 48V PoE Injectors / Power Supplies adapter is included in the scope of delivery.
What happens to the connection during heavy rain?
During heavy rain, the performance of the 60 GHz Components signal can be affected ("Rain Fade"). In this case, the Ubiquiti Wave AP automatically switches to its integrated 5 GHz Components backup radio module (WiFi 6) to maintain a stable connection, ensuring reliable Network access.
