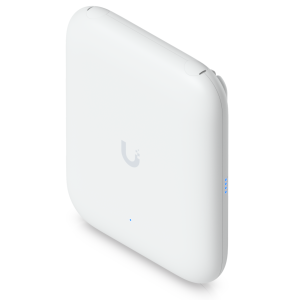

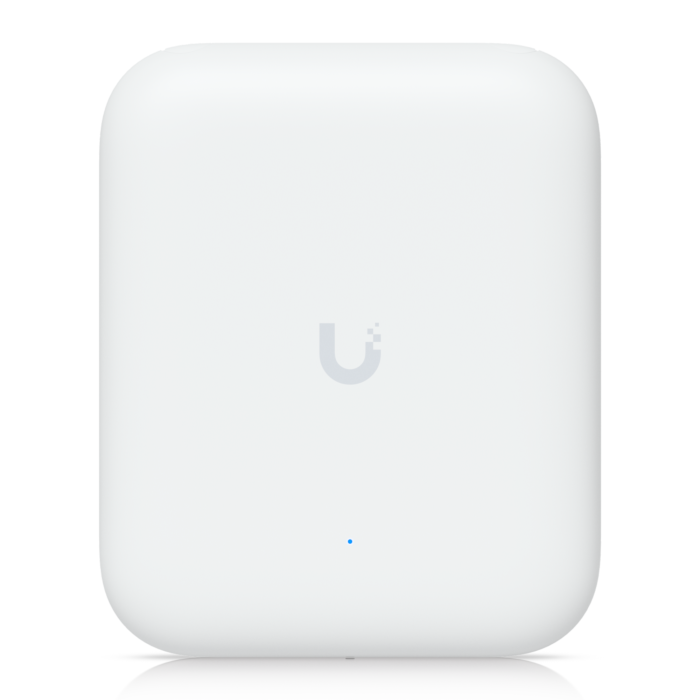

Ubiquiti U7-Outdoor: The Transformer
Outdoor WiFi used to be a decision: "Do I need omni-directional coverage for the beer garden or directional radio for the parking lot?"
The U7-Outdoor makes this decision for you. It is both.
The Antenna Trick
By default, the AP uses its integrated "Super Antenna" (Directional). It focuses energy forward (approx. 45° on 5GHz) to illuminate areas of up to 465 m² (open field).
But do you need all-around coverage? No problem. Simply screw on the two included "rabbit ears" (Omni antennas) and switch the mode in the UniFi Controller. Immediately, the AP covers the area 360° around itself.
Why no 6 GHz?
Ubiquiti consciously relies on Dual-Band (2.4 & 5 GHz) here. The 6 GHz band has a very short physical range outdoors and is heavily dampened by walls/trees. Additionally, there are strict regulations (AFC).
Instead, the U7-Outdoor uses WiFi 7 features (like 4096-QAM) to accelerate the 5 GHz band to 4.3 Gbps. So you get next-gen speed with the proven range of 5 GHz.
Detailed Technical Data
| General & Mechanical | |
| Manufacturer / Model: | Ubiquiti / U7-Outdoor |
| Application: | Outdoor (IPX6 certified) |
| Dimensions: | 170 x 208 x 54.5 mm |
| Weight: | 1.2 kg |
| Mounting: | Wall or Pole (Brackets included) |
| Hardware & Connectivity | |

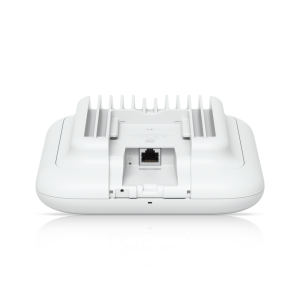

| Network Interface: | 1x 1/2.5 GbE RJ45 Port |
| Power Supply: | PoE+ (802.3at) |
| Power Consumption: | Max. 19 Watt |
| WiFi Specifications | |
| WiFi Standards: | WiFi 7 (802.11be) - Dual Band |
| Total Throughput: | 5.0 Gbps (Aggregate) |
| Frequency Bands: | 2.4 GHz / 5 GHz (NO 6 GHz) |
| MIMO Configuration: | 2x2 MIMO on both bands |
| Max. Throughput Rate: | 2.4 GHz: 688 Mbps 5 GHz: 4,324 Mbps (BW240) |
| Antenna Modes (Switchable) | |
| Mode 1 (Internal): |
Directional Gain: 12.5 dBi (5GHz) / 8 dBi (2.4GHz) Beamwidth: approx. 45° (5GHz) / 90° (2.4GHz) |
| Mode 2 (External): |
Omni-directional Gain: 4 dBi (5GHz) / 3 dBi (2.4GHz) Coverage: 360° |
| Software & Features | |
| Security: | WPA-PSK, WPA-Enterprise (WPA2/WPA3) |
| Concurrent Clients: | 200+ |
Scope of Delivery
| 1 x Ubiquiti U7-Outdoor Access Point |
| 2 x External Omni Antennas (screw-on) |
| 1 x Wall Mount & Pole Mount |
| Note: PoE Injector is NOT included! |
